Parts Location: Illustration

WARNING: This page is about a different variant/trim than selected.

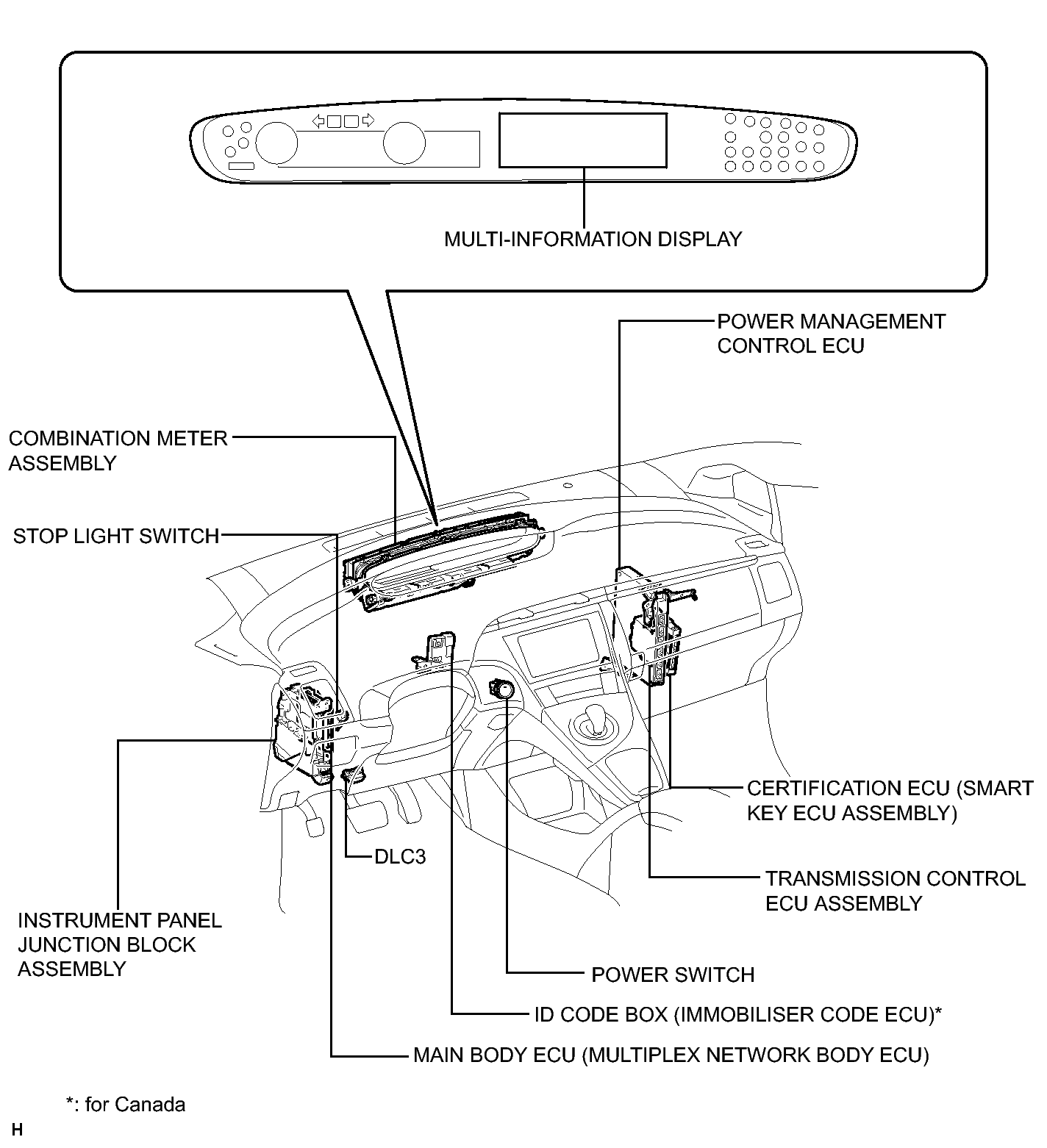

Fig 1: Identifying Smart Key System Component Location (1 Of 3)
GTY330735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

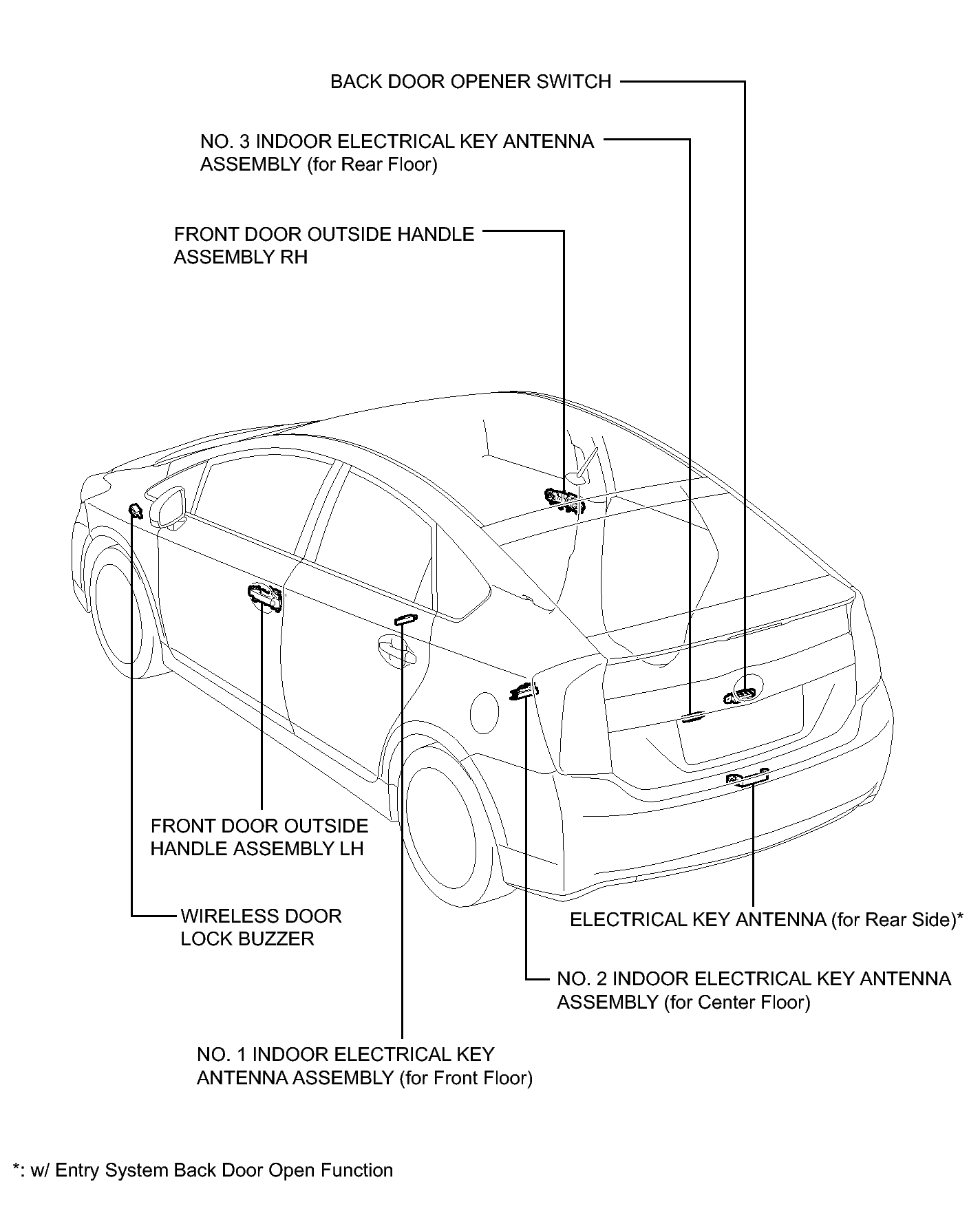

Fig 1: Identifying Smart Key System Component Location (2 Of 3)
GTY324691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

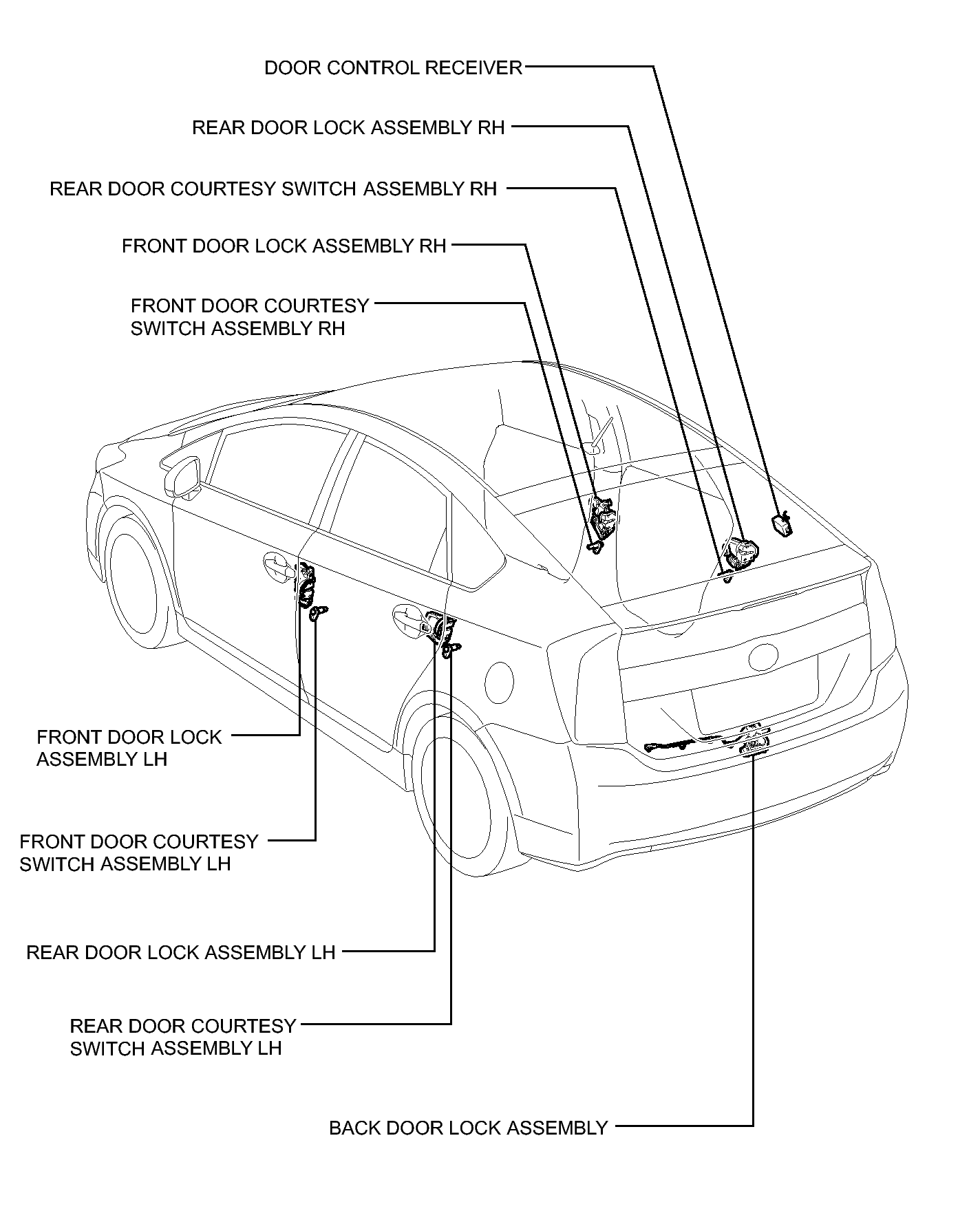

Fig 1: Identifying Smart Key System Component Location (3 Of 3)
GTY225362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
