Battery Smart Unit: Components: Illustration

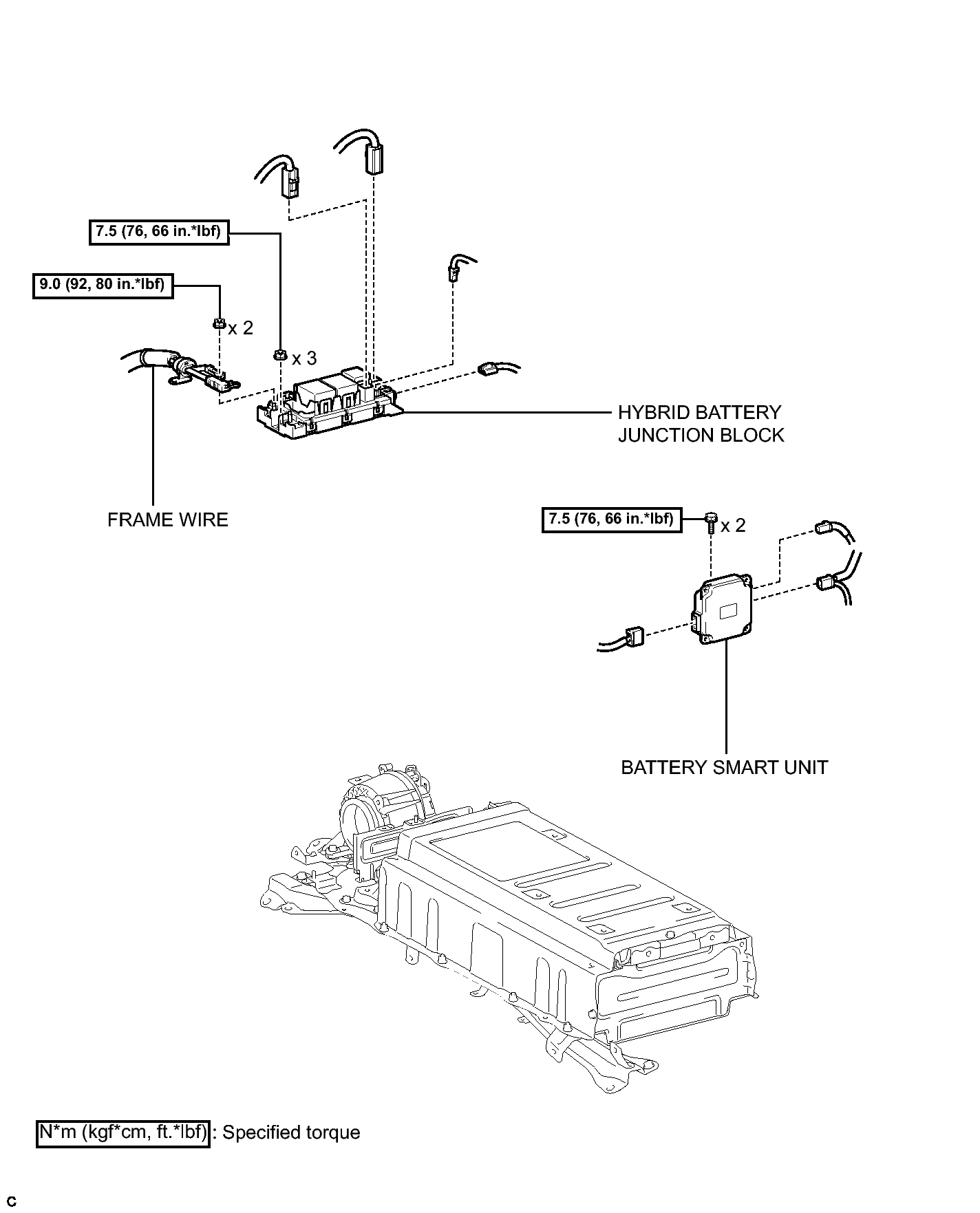

Fig 1: Identifying Battery Smart Unit Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
