Supplemental Restraint System (Except Plug-In) (Diagnostics - Introduction)
›
Airbag System
›
Parts Location
›
Illustrations
Parts Location: Illustrations

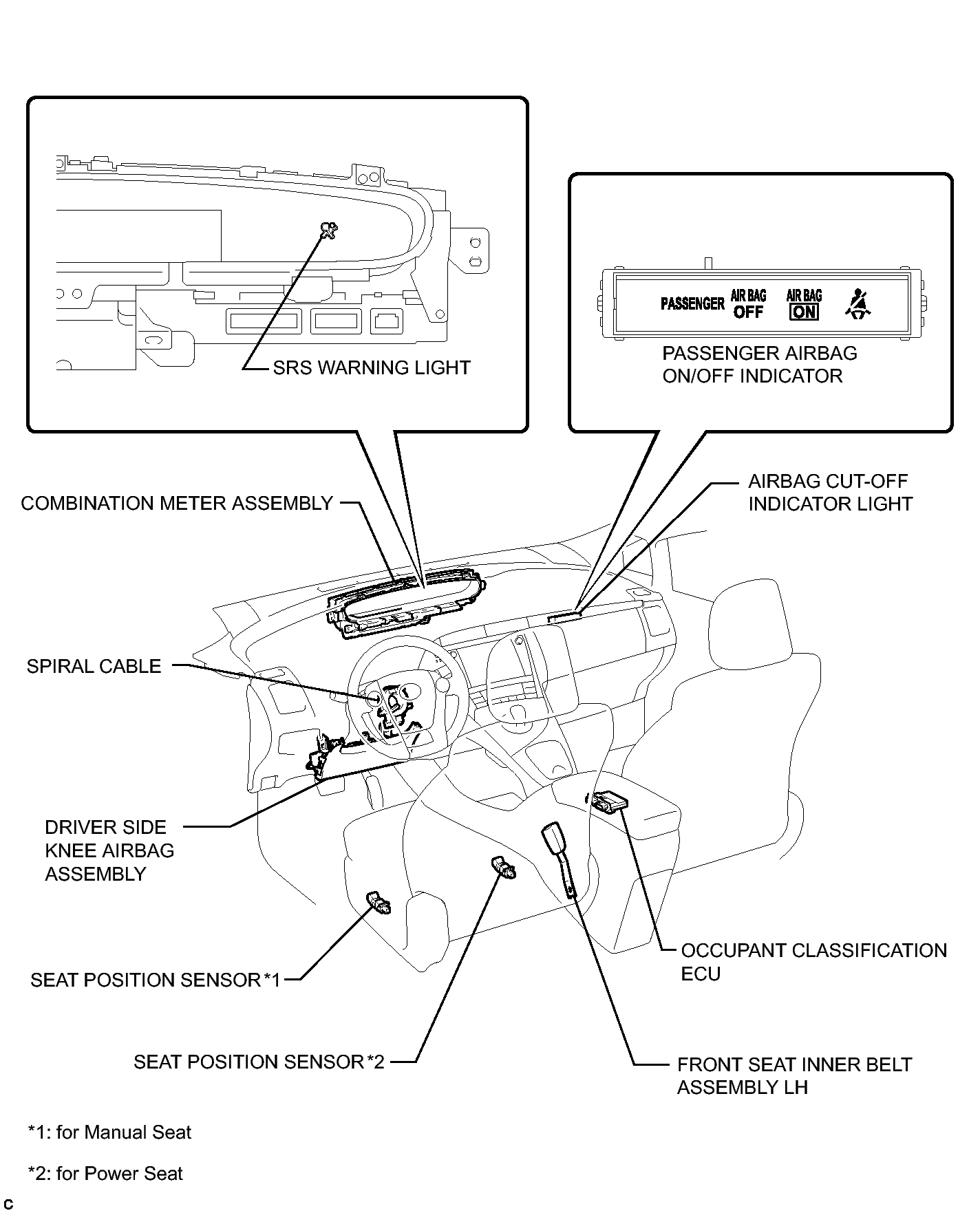

Fig 1: Identifying Airbag System Components Location (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

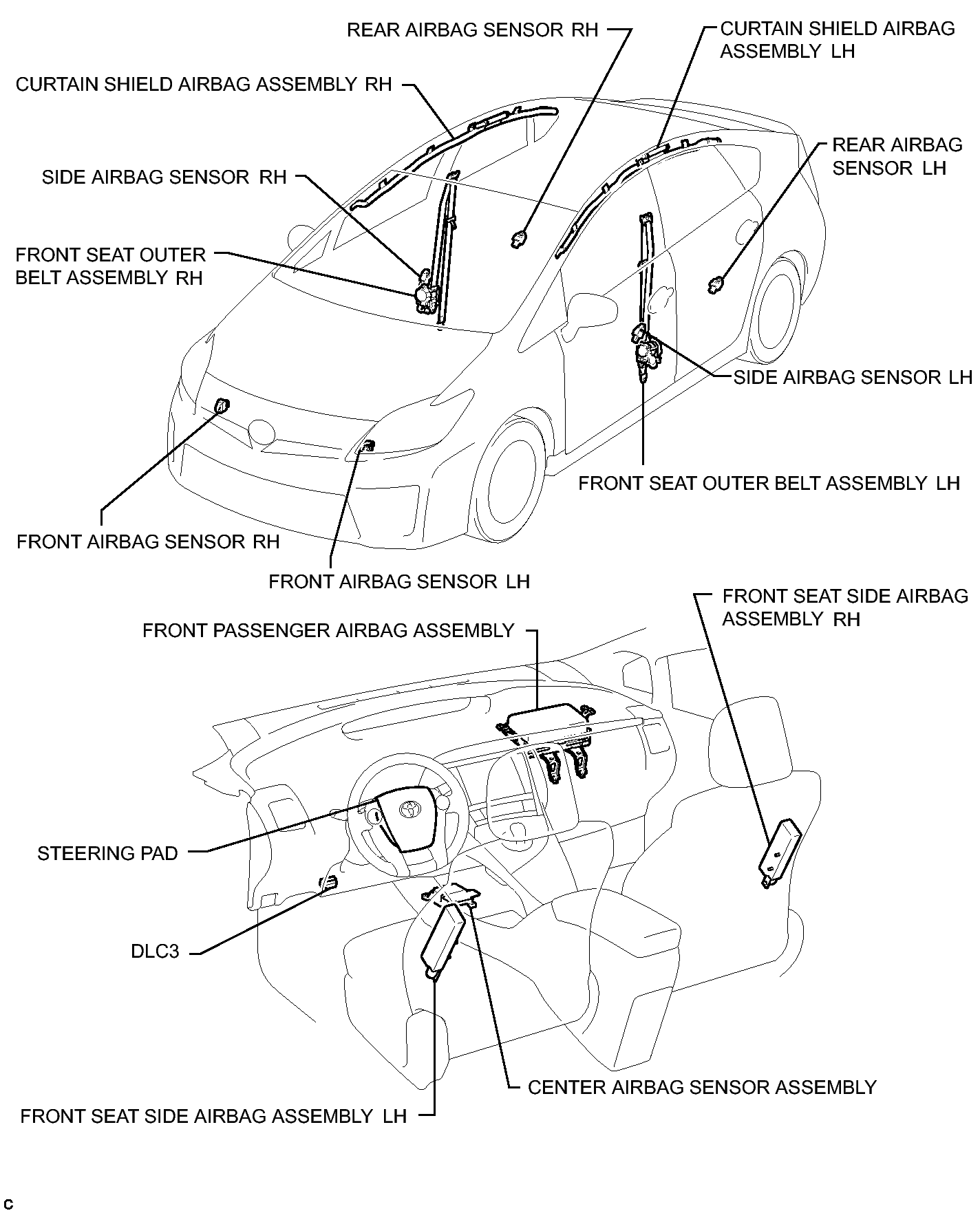

Fig 2: Identifying Airbag System Components Location (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
