Home › Toyota › 2012 › Prius Two › Repair and Diagnosis › Steering › Steering Column › Steering Column (Except Plug-In) (Service Information) › Steering Pad Switch › Components › Illustration

Steering Pad Switch: Components: Illustration

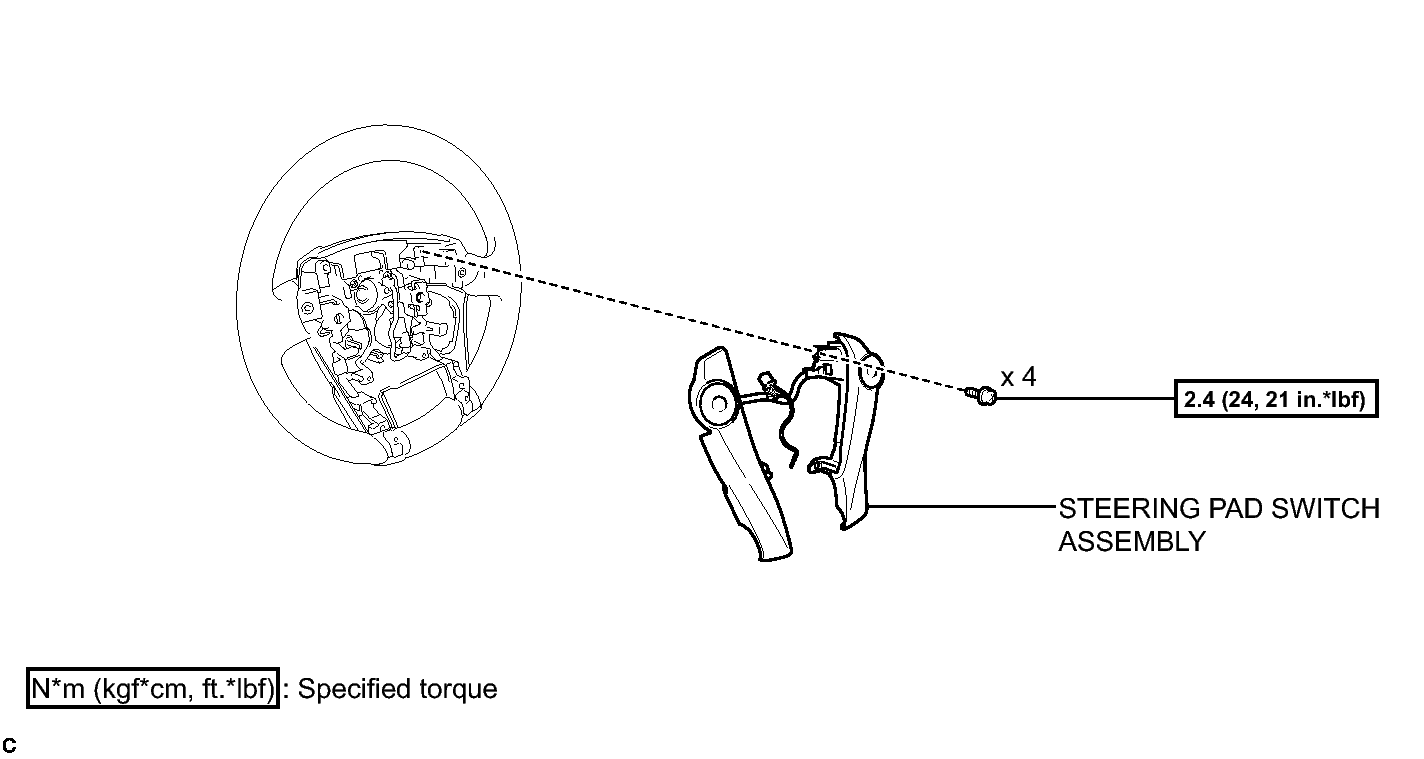

Fig 1: Identifying Steering Pad Switch Replacement Components With Torque Specifications
GTY323954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
