Electronic A/T Shift Lever System (Except Plug-In) (Diagnostics - Introduction)
›
Electronic Shift Lever System
›
System Diagram
›
System Diagram
System Diagram

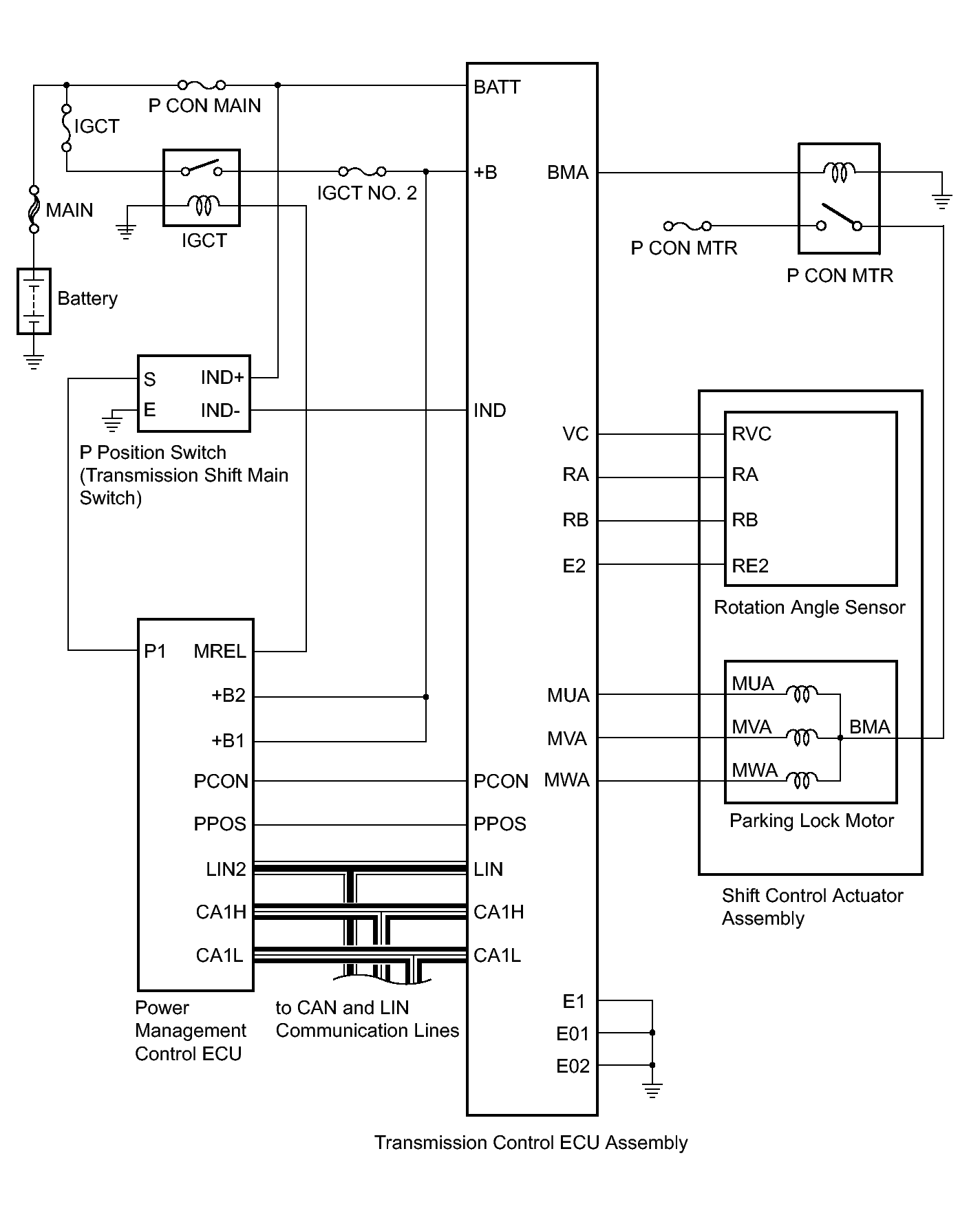

Fig 1: Identifying Transmission Control Assembly ECU Diagram
