OEM System Circuits: DLC3: Notes

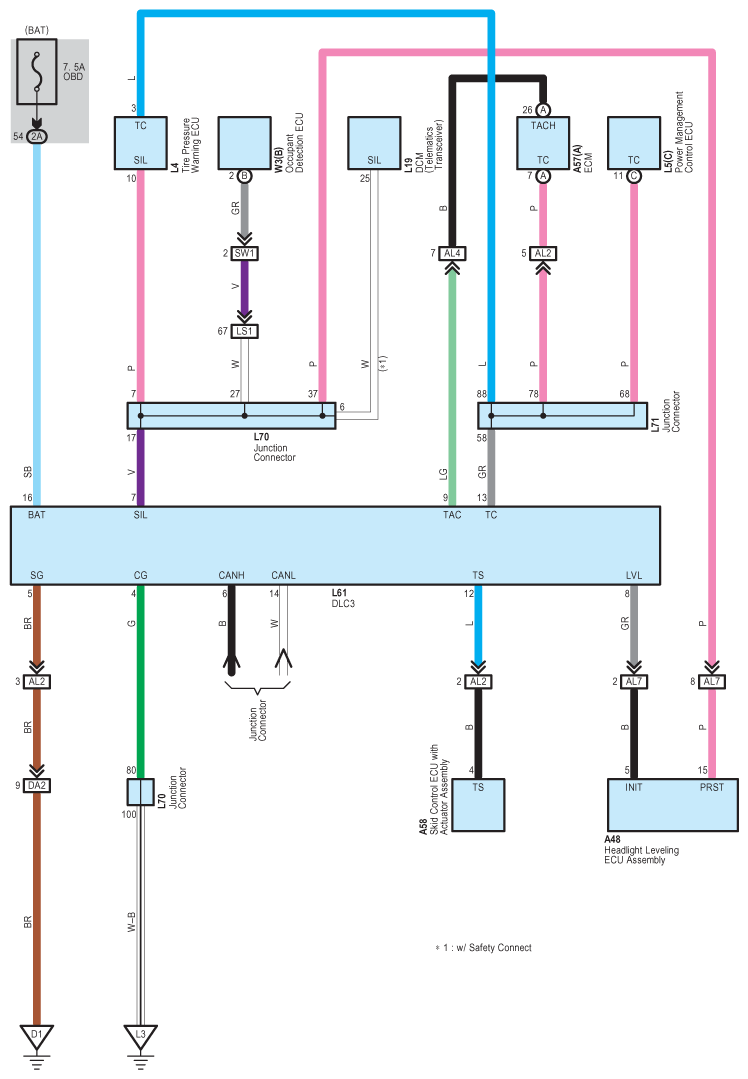

Fig 1: DLC3 System Wiring Diagram

G08862844

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
