Multiplex Communication System (AVC-LAN)
›
Notes
Multiplex Communication System (AVC-LAN): Notes

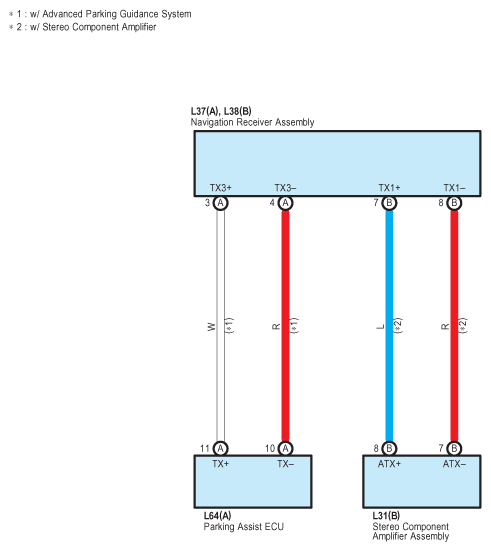

Fig 1: Multiplex Communication System Wiring Diagram (AVC-LAN)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
