Roof Sunshade System
›
Notes
Roof Sunshade System: Notes

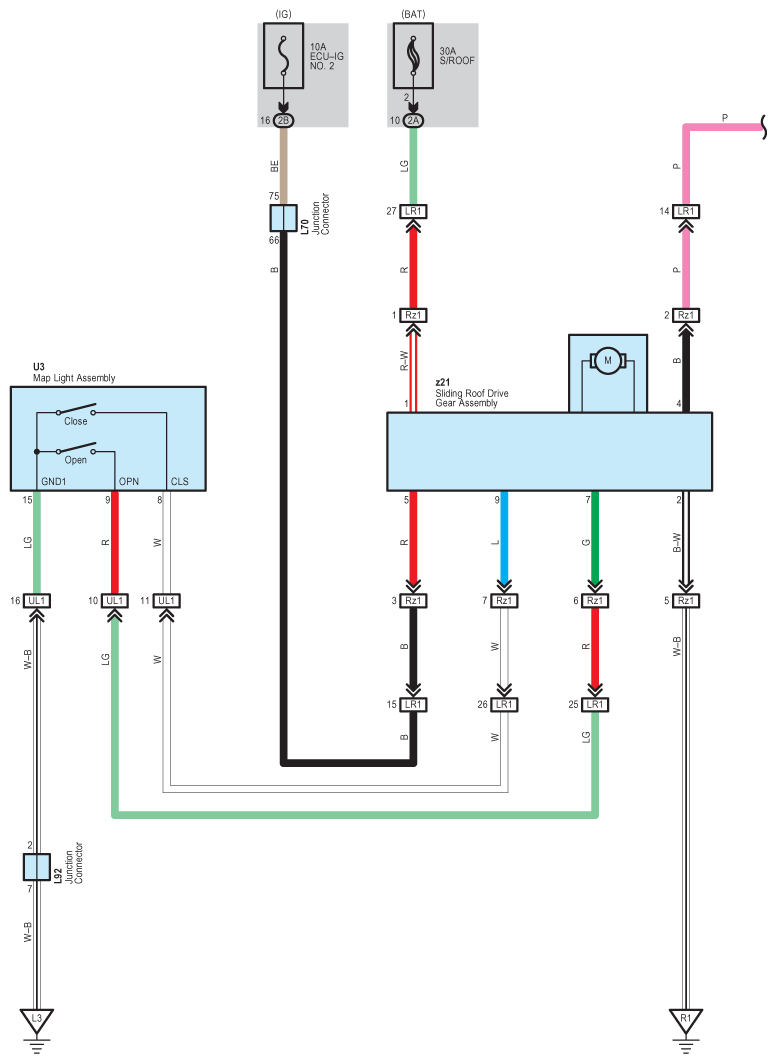

Fig 1: Roof Sunshade System Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

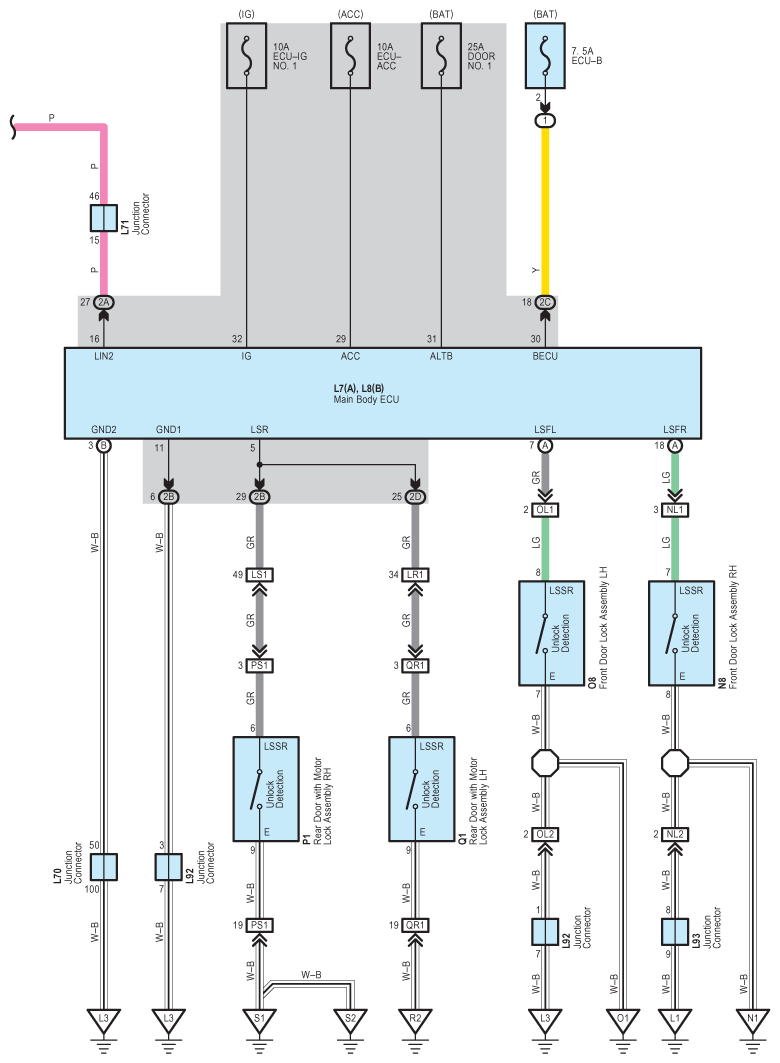

Fig 2: Roof Sunshade System Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
