Engine Control System [Diagnostic Codes]
›
SFI System
›
DTC P0403: Exhaust Gas Recirculation Control Circuit
›
Wiring Diagram
DTC P0403: Exhaust Gas Recirculation Control Circuit: Wiring Diagram

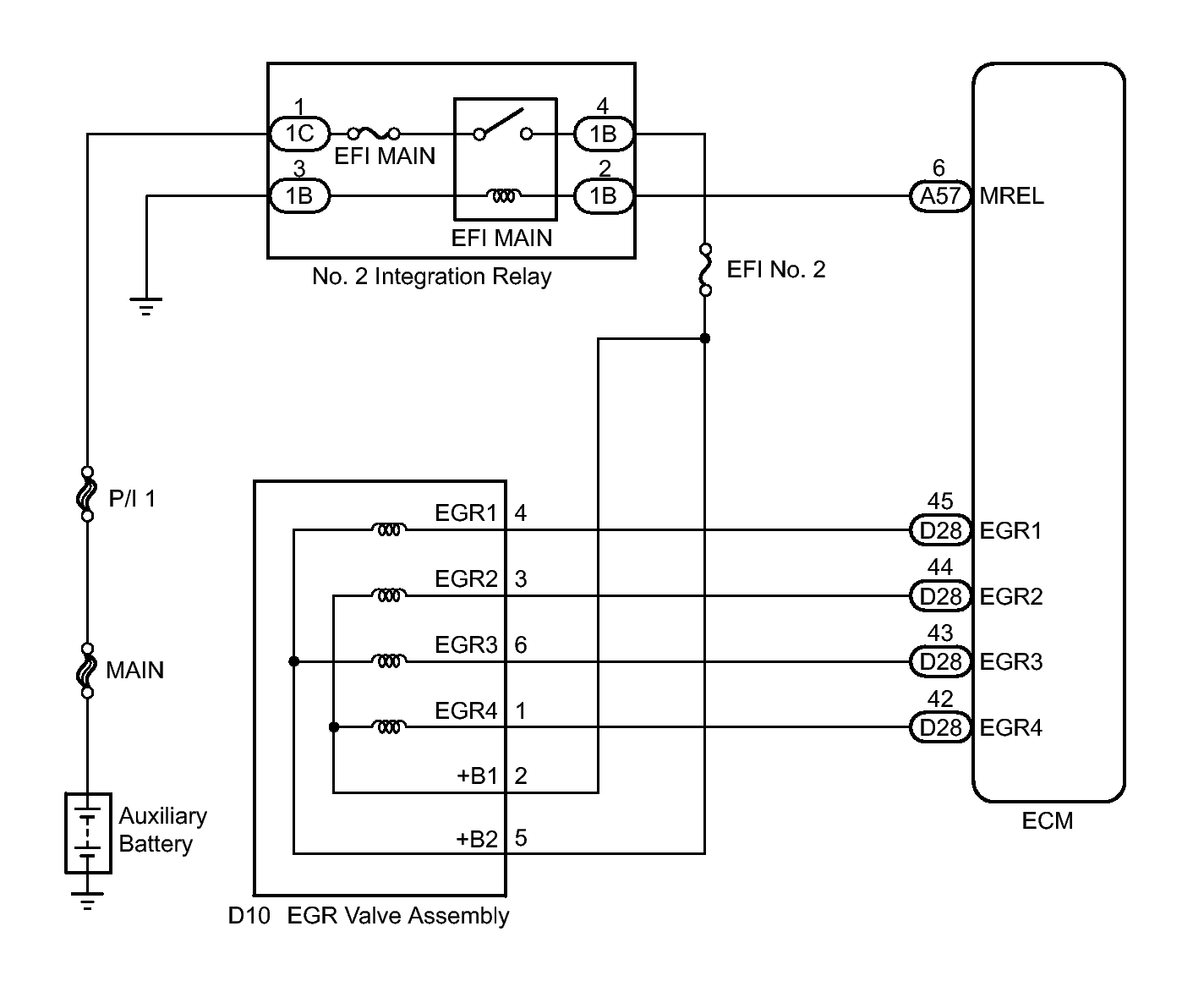

Fig 1: EGR Valve Assembly Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
