Ignition Coil And Spark Plug: Removal: Removal

REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
Refer to REMOVAL
REMOVE COWL BODY MOUNTING REINFORCEMENT LH . Refer to REMOVAL - Step 5
REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY . Refer to REMOVAL - Step 6
REMOVE NO. 2 CYLINDER HEAD COVER . Refer to REMOVAL - Step 22
REMOVE IGNITION COIL ASSEMBLY
1. Disconnect the 4 ignition coil connectors.

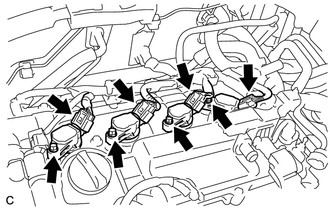

  Fig 1: Identifying Ignition Coil Assembly & Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 4 bolts and 4 ignition coils.
  NOTE:
  When removing each ignition coil, do not damage the plug cap on the engine head cover opening or the upper edge of the spark plug tube.
REMOVE SPARK PLUG
1. Using a 14 mm spark plug wrench, remove the 4 spark plugs.

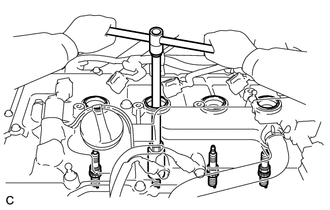

  Fig 2: Identifying Spark Plug Wrench
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
