Seat Belt Control Ecu: Components: Illustration

Fig 1: Seat Belt Control ECU Replacement Components (1 Of 2)
GTY333117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

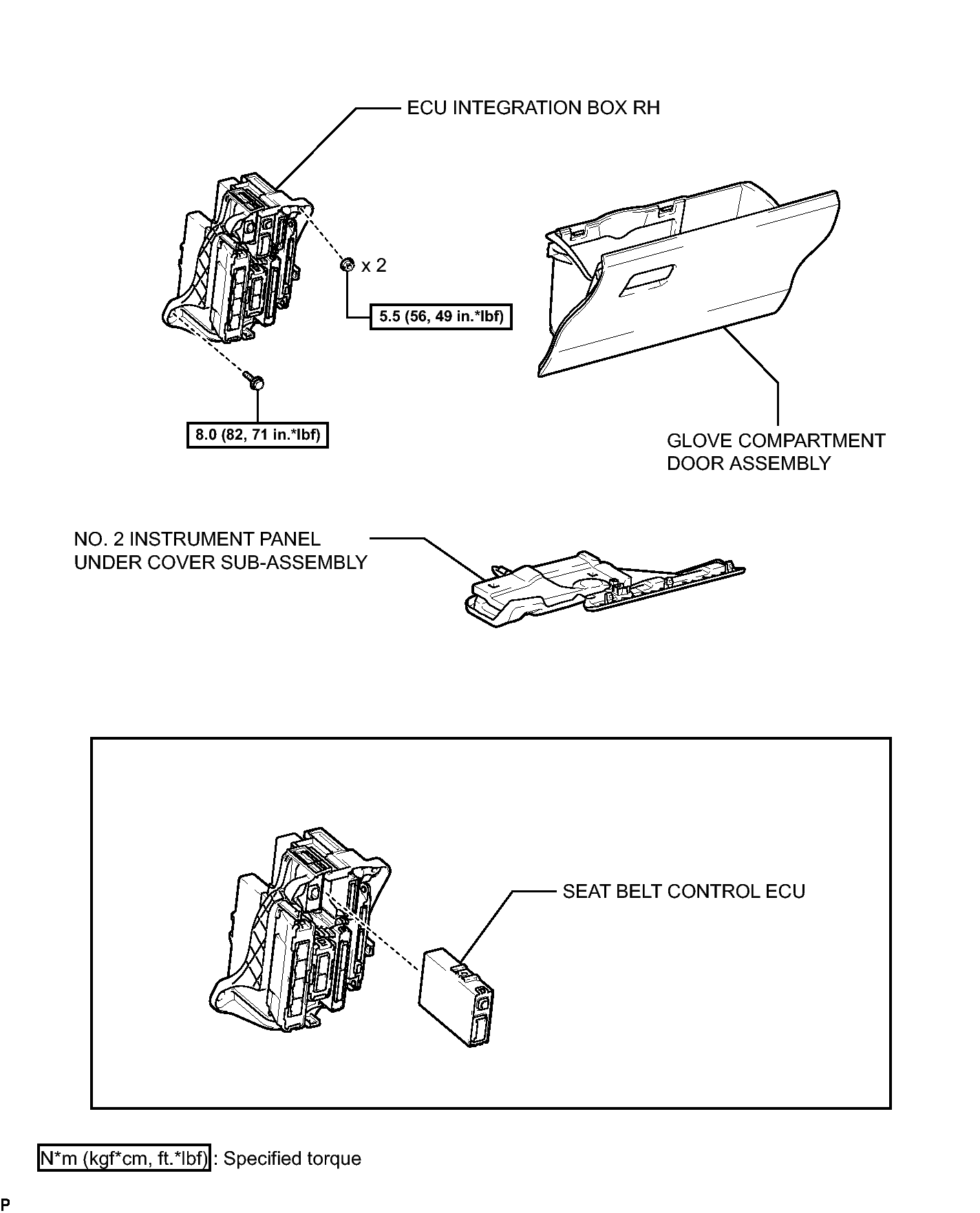

Fig 1: Seat Belt Control ECU Replacement Components With Torque Specifications (2 Of 2)
GTY331604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
