Parts Location: Illustration

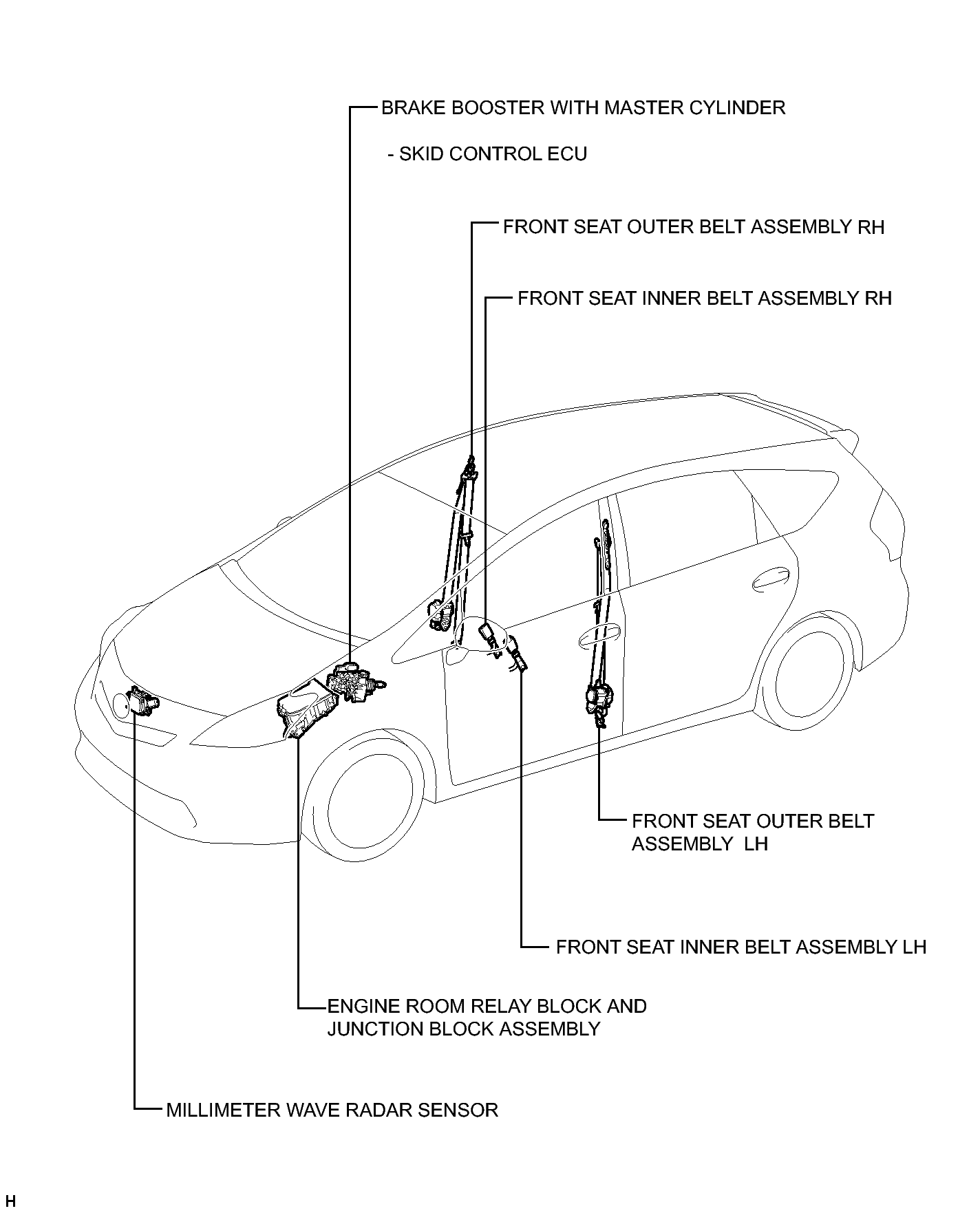

Fig 1: Pre-Collision System Components Location (1 Of 2)
GTY332560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

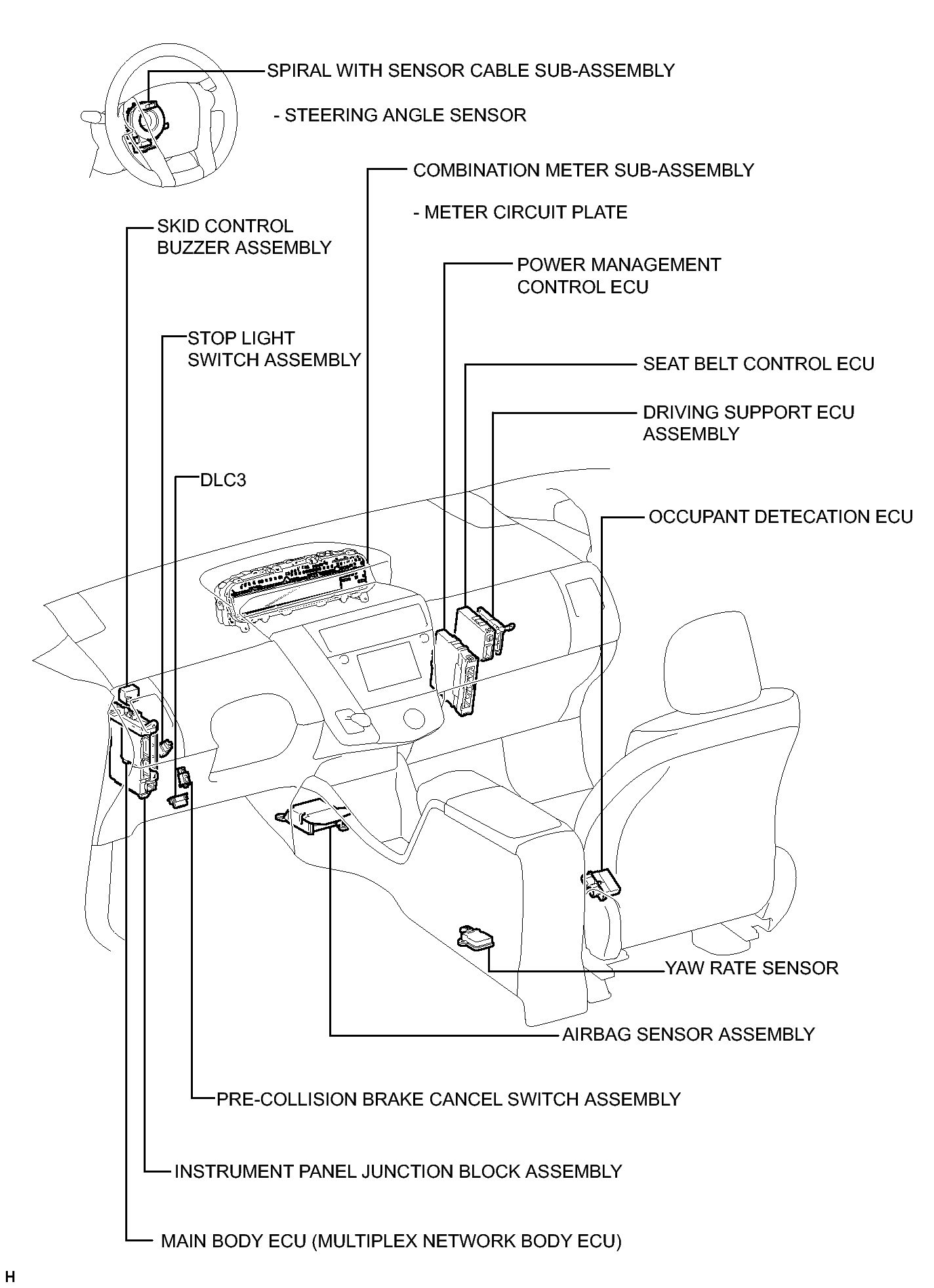

Fig 1: Pre-Collision System Components Location (2 Of 2)
GTY328035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
