Shift Control Actuator: Installation: Installation

INSTALL SHIFT CONTROL ACTUATOR SEAL
NOTE:
It is not always necessary to replace or remove/install the shift control actuator seal at the same time when replacing the shift control actuator assembly.

HINT:

Remove/install the shift control actuator seal only if oil leaks from the shift control actuator seal or other faults are found when the shift control actuator assembly is removed.
1. Using SST and a hammer, tap in a new shift control actuator seal.

  Fig 1: Identifying SST, Actuator Seal & Depth Dimensions
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09820-00031
  Seal installation depth

  8.5 to 9.8 mm (0.335 to 0.386 in.)
  TEXT IN ILLUSTRATION

  *a Seal installation depth
INSTALL SHIFT CONTROL ACTUATOR ASSEMBLY

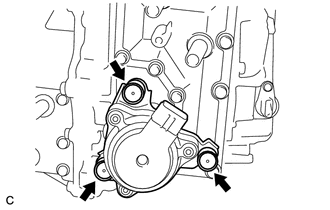

1. Install the shift control actuator assembly with 3 new shift control actuator bolts.

  Fig 2: Installing Shift Control Actuator Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 9.5 N*m (97 kgf*cm, 84 in.*lbf)
2. Install 3 new shift control actuator bolt caps to the shift control actuator bolts.

  Fig 3: Identifying Bolt Caps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Push in each shift control actuator cap firmly until the claw of the shift control actuator bolt cap engages with the control actuator bolt.
3. Install the bolt and connect the wire harness clamp bracket.
  Torque: 29 N*m (296 kgf*cm, 21 ft.*lbf)
4. Connect the 2 connectors.
INSTALL WATER HOSE See step 42
ADD COOLANT (for Inverter) . Refer to REPLACEMENT - Step 3
INSPECT FOR COOLANT LEAK (for Inverter) . Refer to ON-VEHICLE INSPECTION - Step 1
INSTALL NO. 1 ENGINE UNDER COVER
