System Diagram

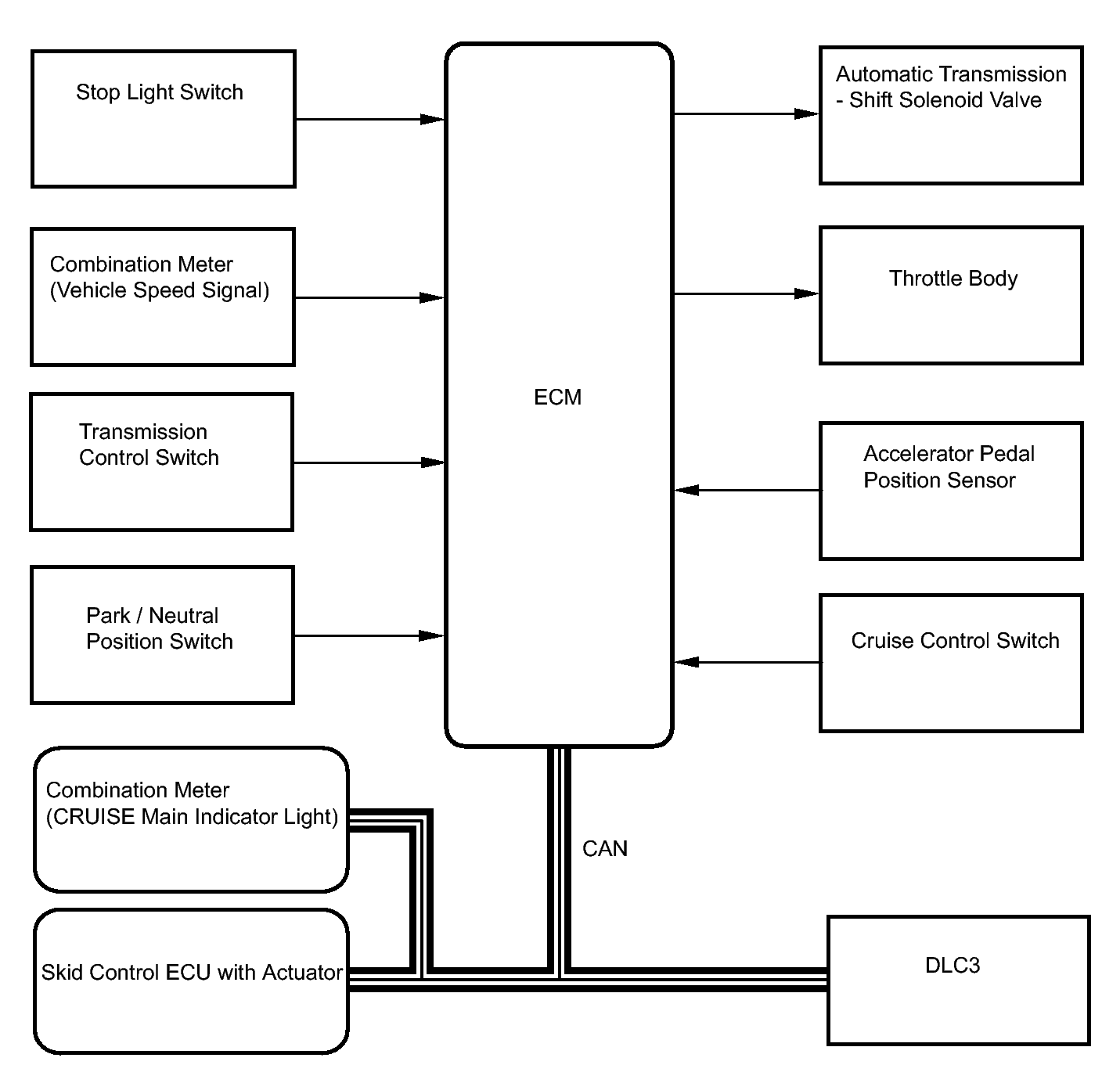

Fig 1: Cruise Control System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

COMMUNICATION TABLE

Sender	Receiver	Signal	Line
ECM	Skid control ECU with actuator	VSC operation signal Coast brake operation signal	CAN
ECM	Combination meter	CRUISE main indicator light signal	CAN
