Automatic Light Control and Light Auto Turn Off System
›
Notes
Automatic Light Control and Light Auto Turn Off System: Notes

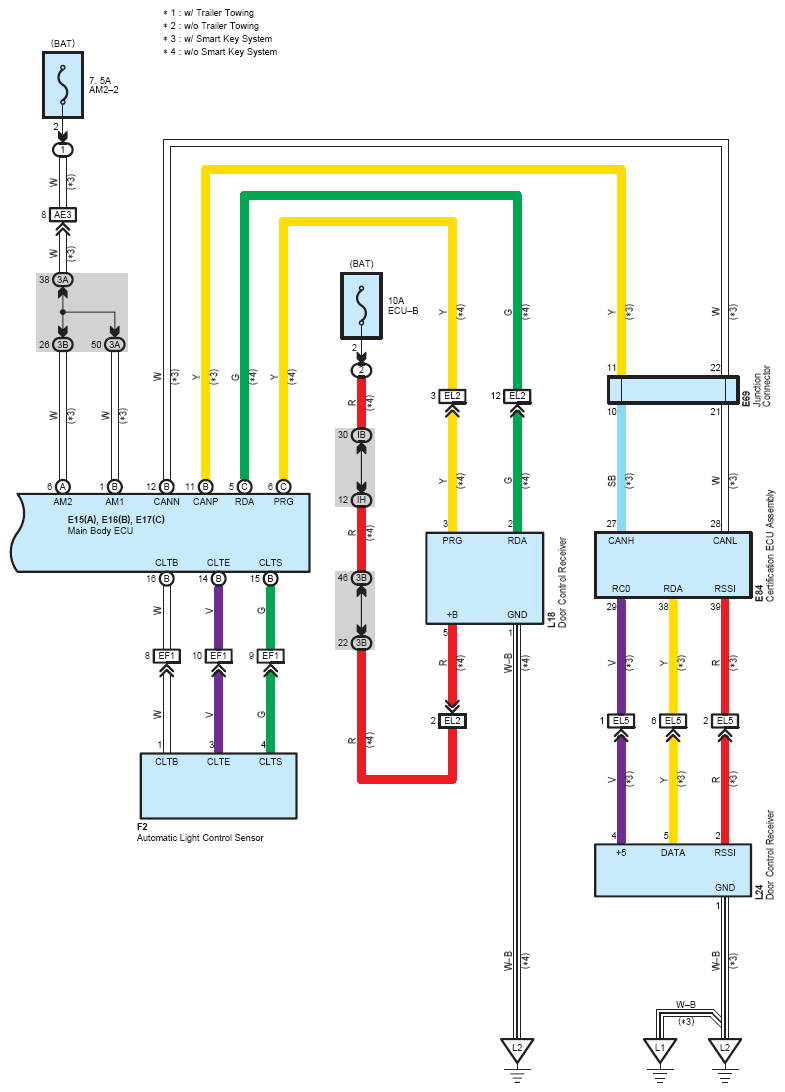

Fig 1: Automatic Light Control And Light Auto Turn Off System Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

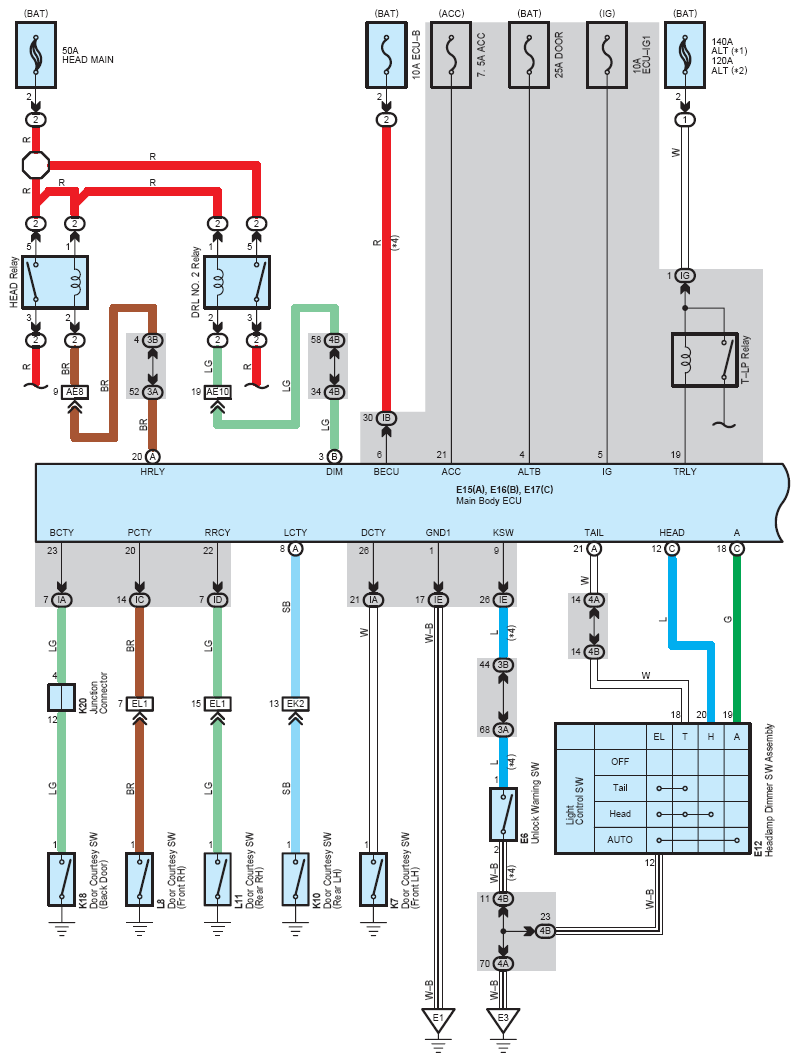

Fig 2: Automatic Light Control And Light Auto Turn Off System Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
