RAV4 EV
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Ignition (2GR-FE)
›
Notes
Ignition (2GR-FE): Notes

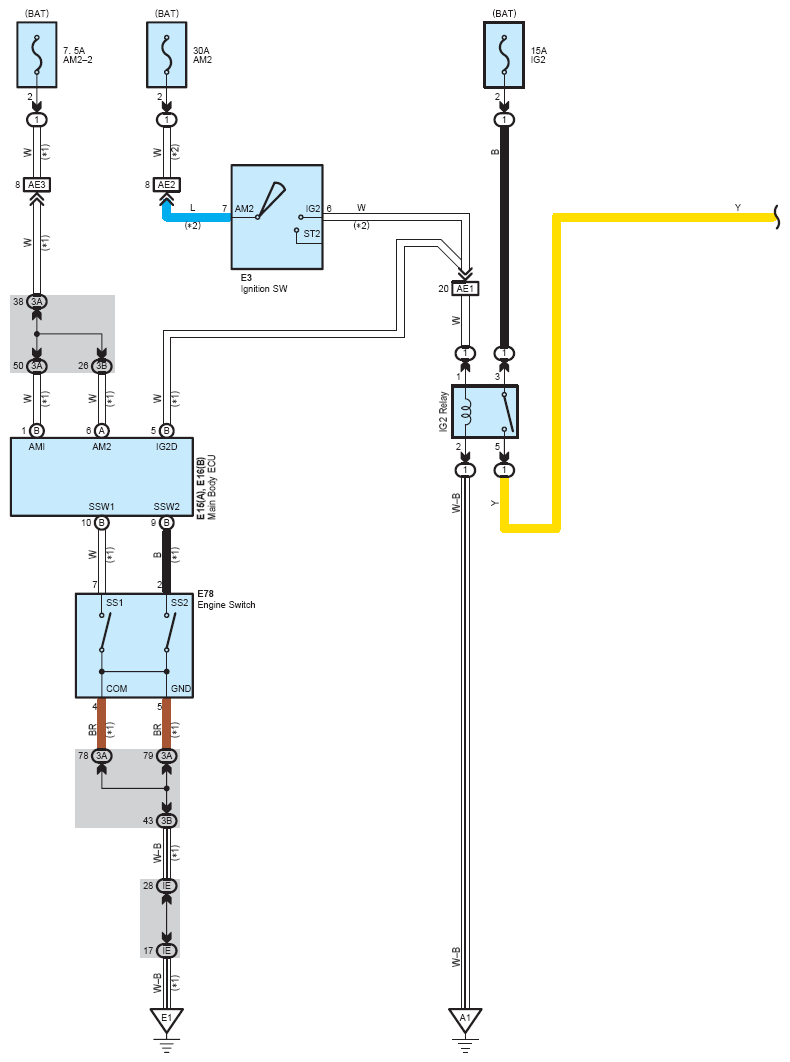

Fig 1: Ignition System Wiring Diagram (2GR-FE; 1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

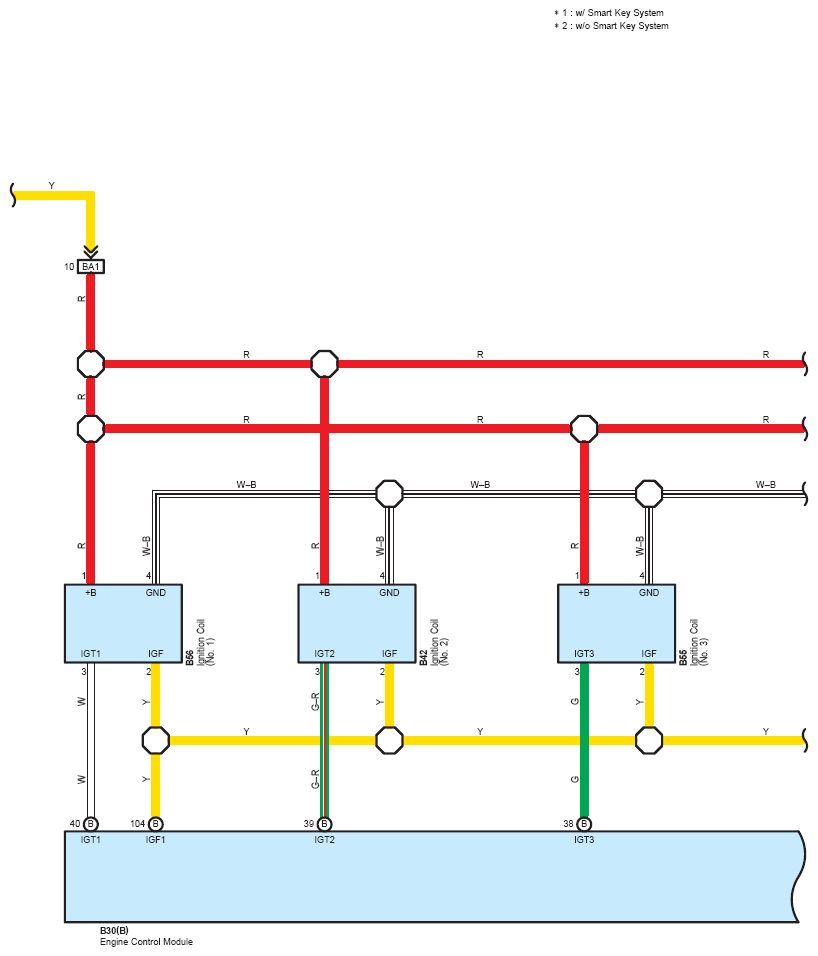

Fig 2: Ignition System Wiring Diagram (2GR-FE; 2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

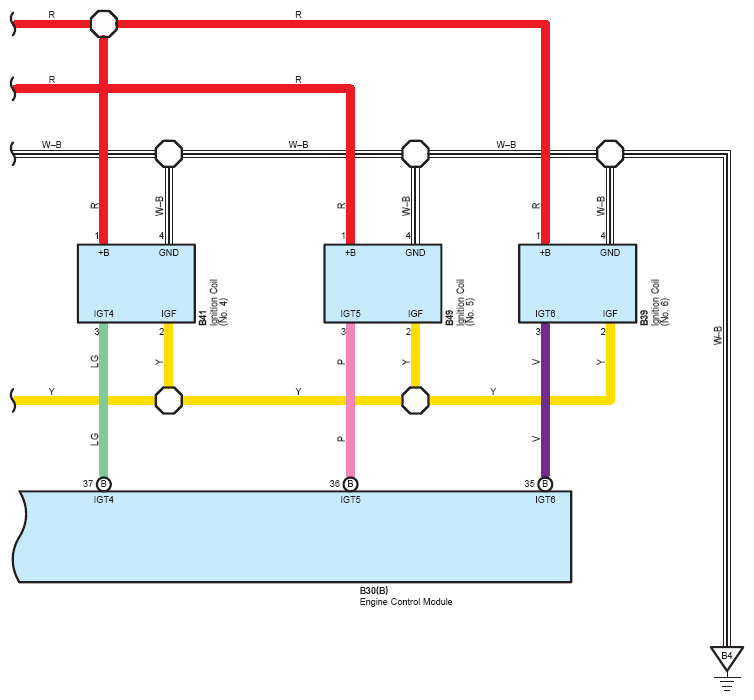

Fig 3: Ignition System Wiring Diagram (2GR-FE; 3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
