Illumination and Taillight: Notes

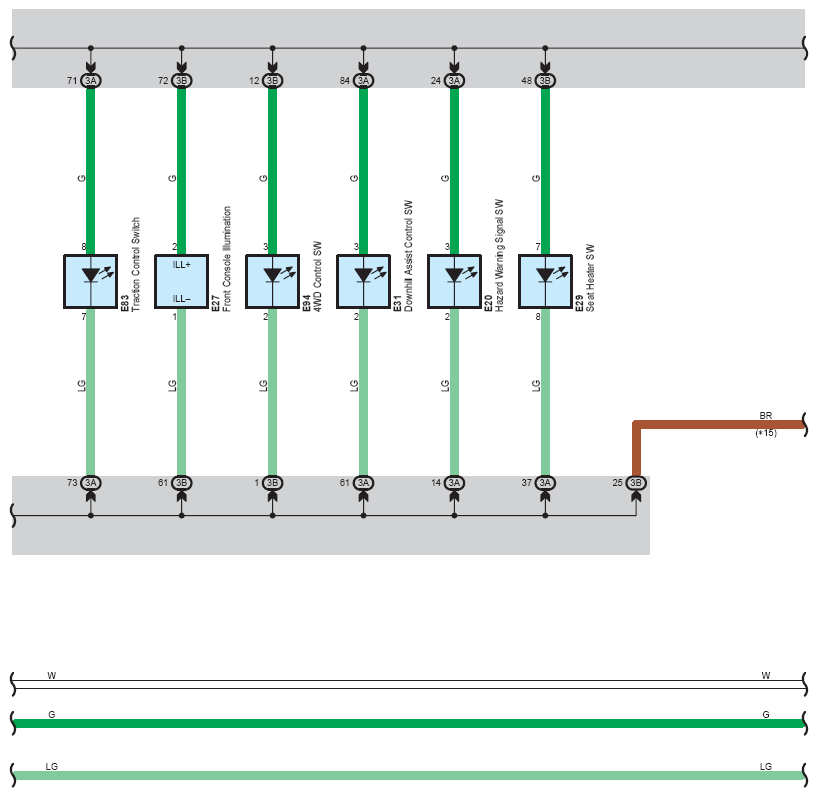

Fig 1: Illumination And Taillight System Wiring Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

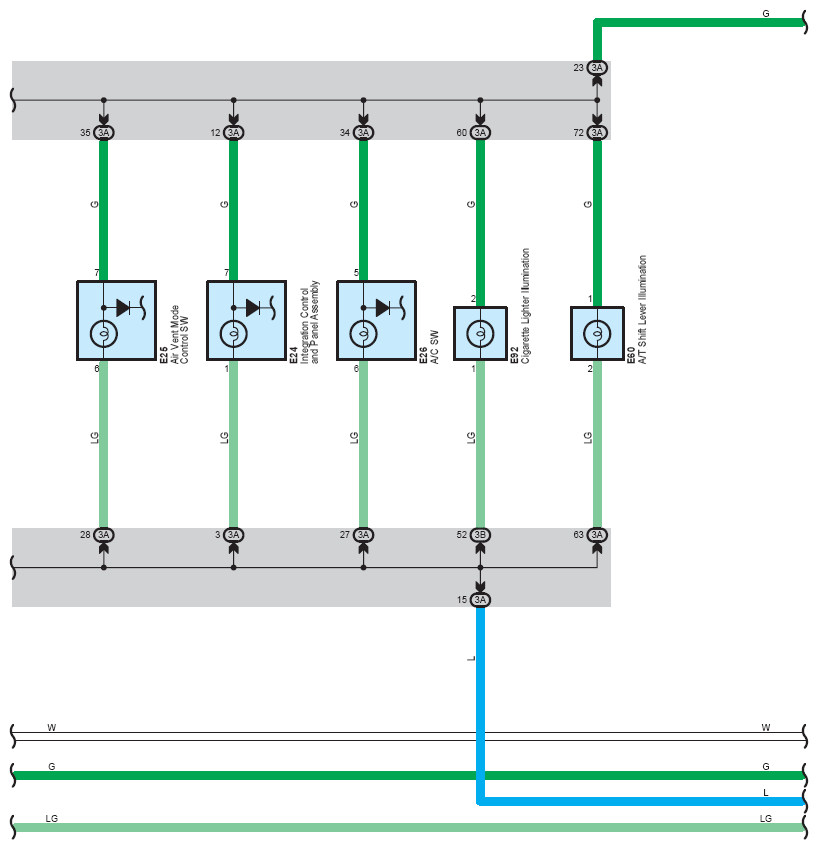

Fig 2: Illumination And Taillight System Wiring Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

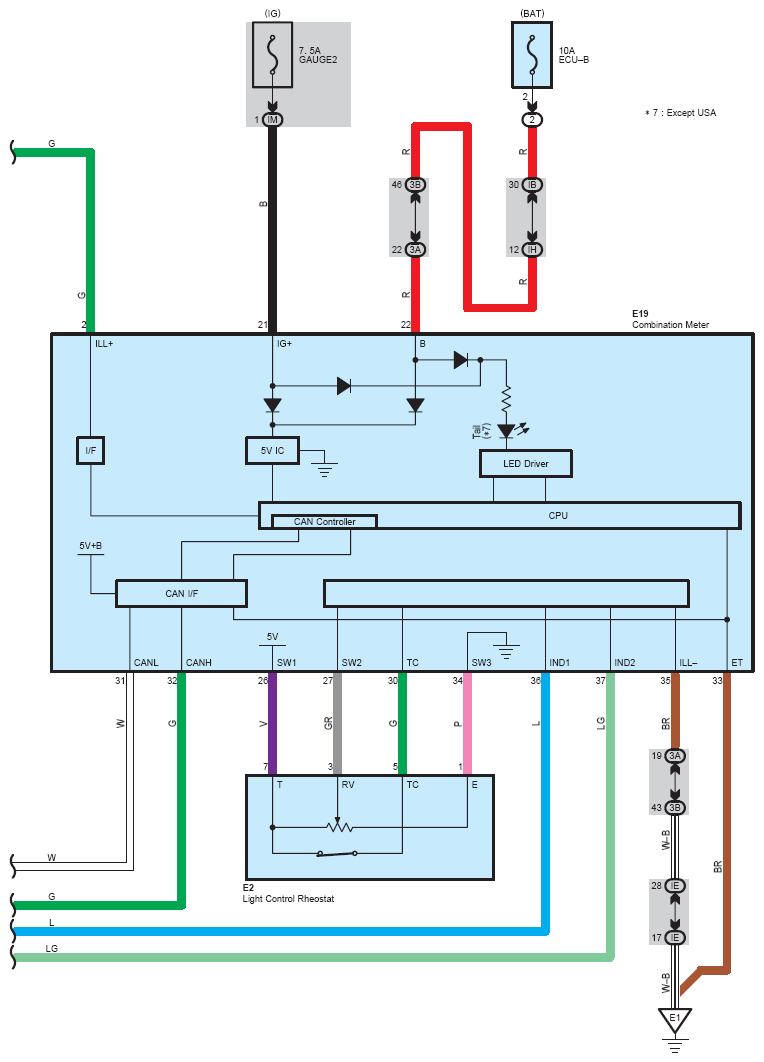

Fig 3: Illumination And Taillight System Wiring Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

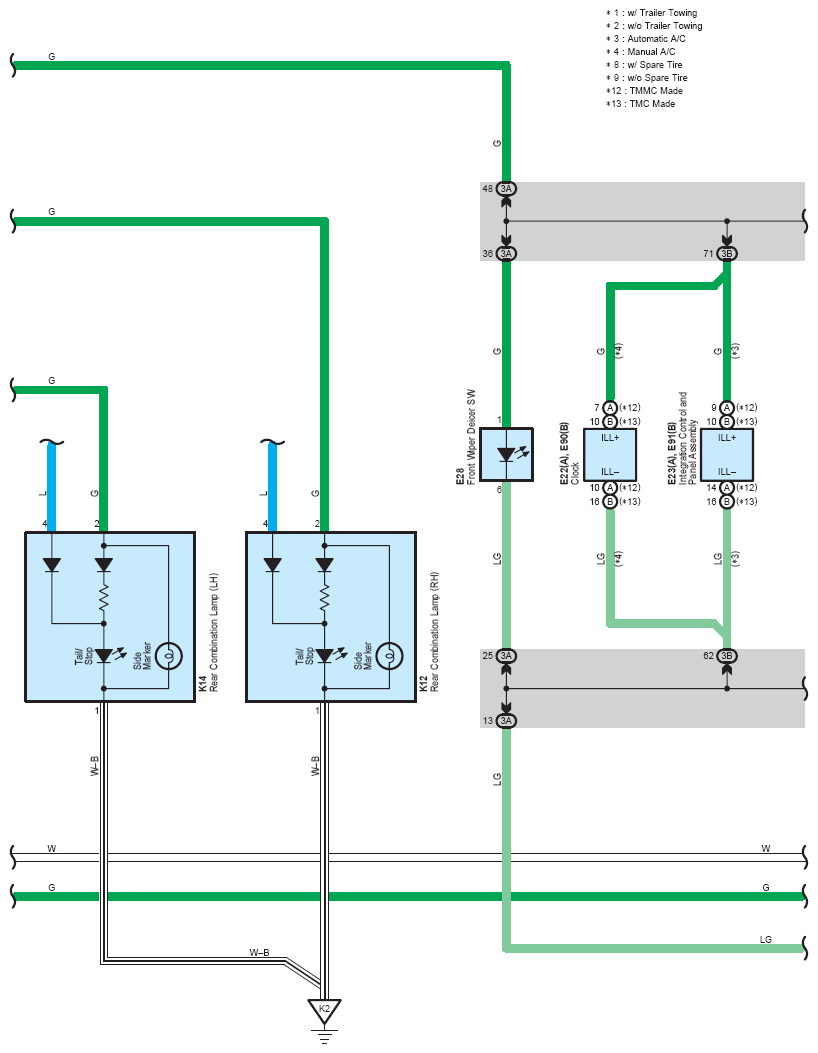

Fig 4: Illumination And Taillight System Wiring Diagram (4 Of 6)

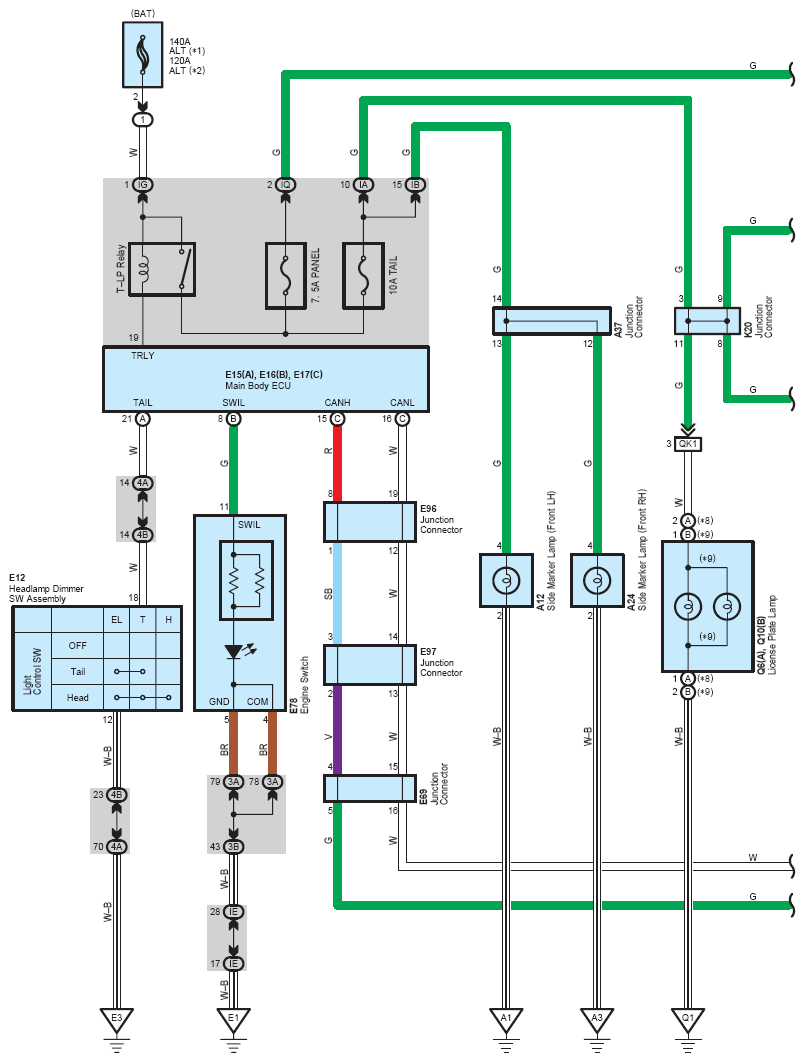

Fig 5: Illumination And Taillight System Wiring Diagram (5 Of 6)

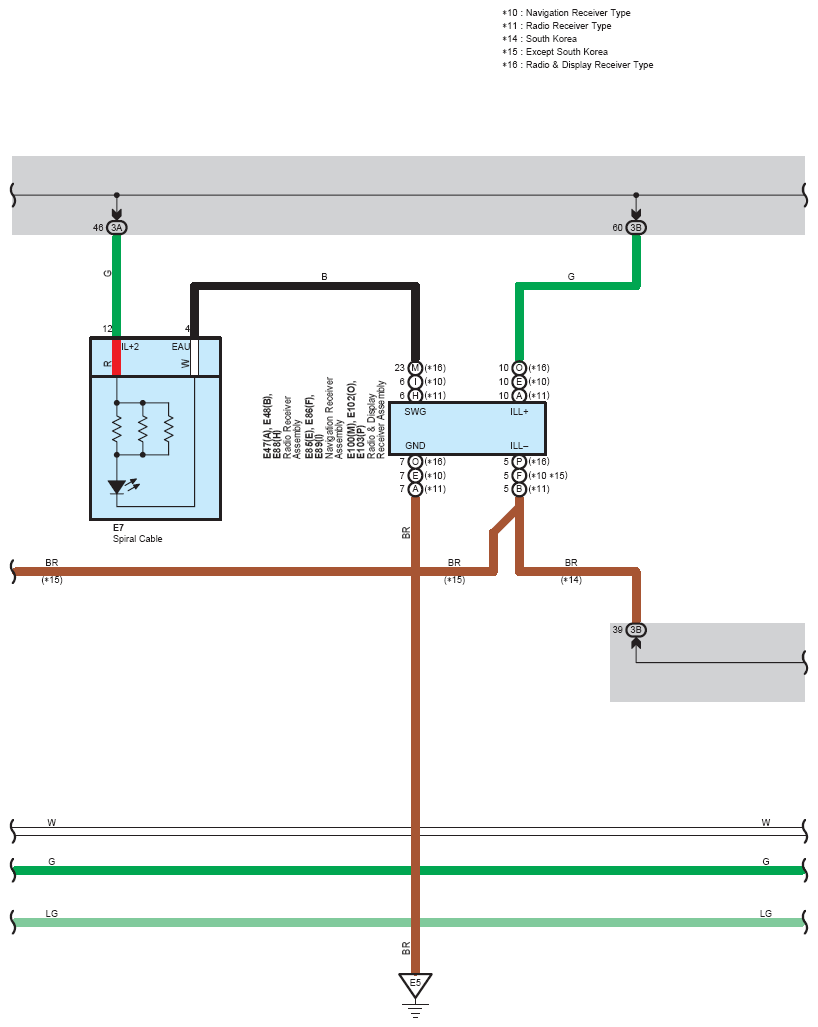

Fig 6: Illumination And Taillight System Wiring Diagram (6 Of 6)
