Power Outlet (120V): Notes

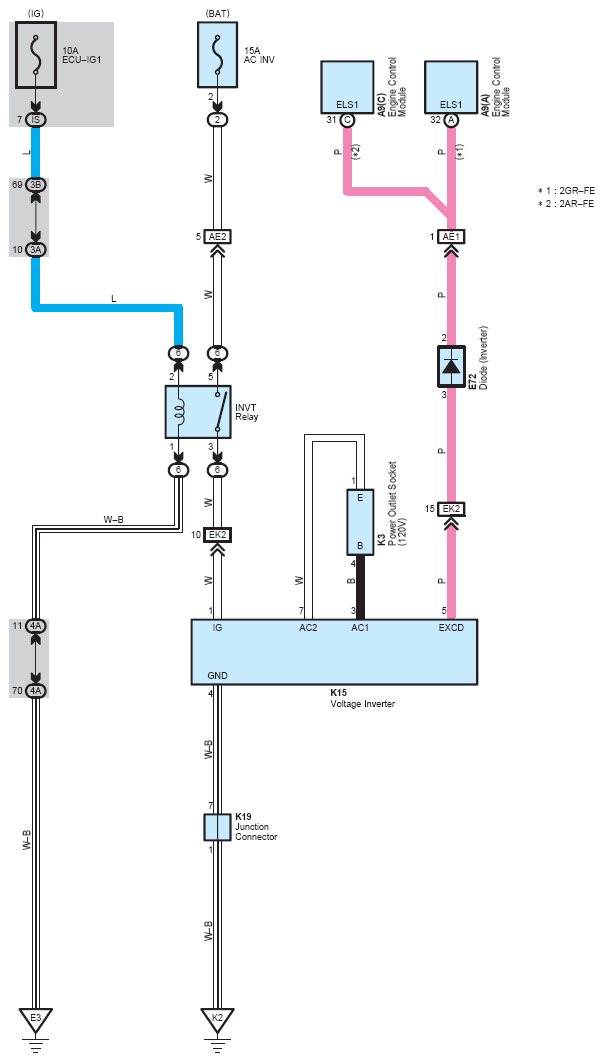

Fig 1: Power Outlet (120V) System Wiring Diagram
G08845257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
