Power Outlet (12V): Notes

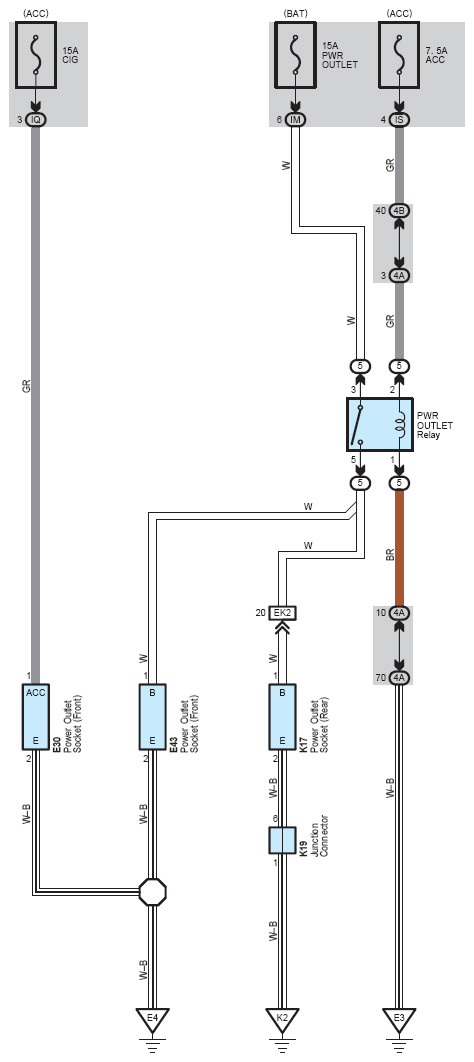

Fig 1: Power Outlet (12V) System Wiring Diagram
G08845258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
