Power Source: Notes

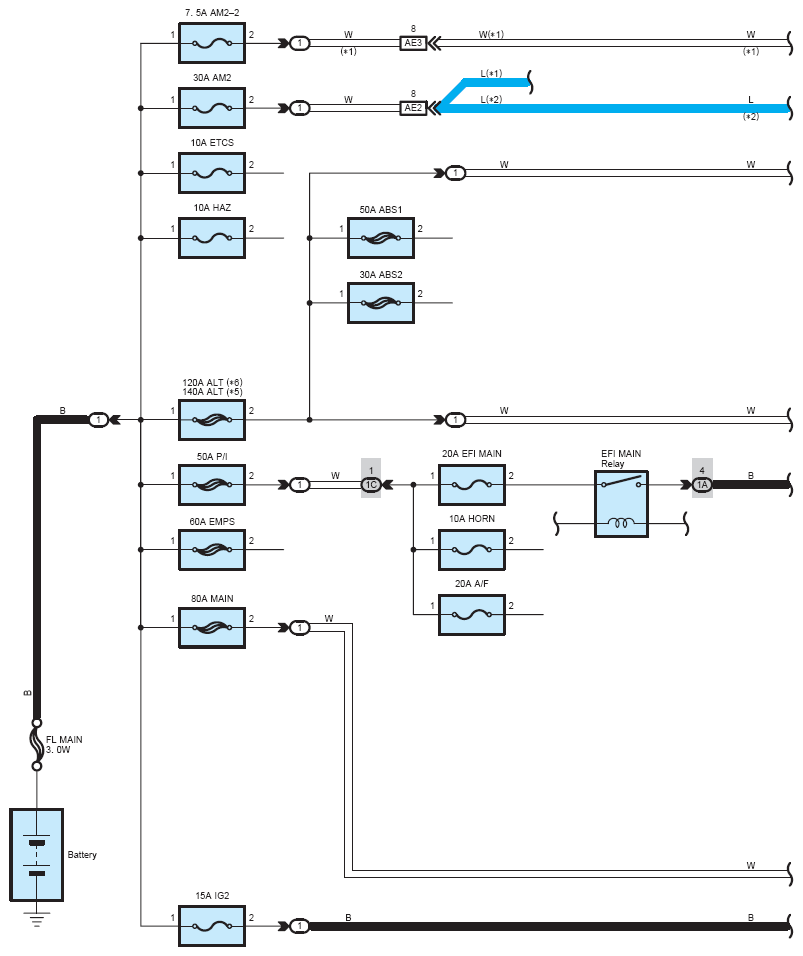

Fig 1: Power Source System Wiring Diagram (1 Of 5)
G08845157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

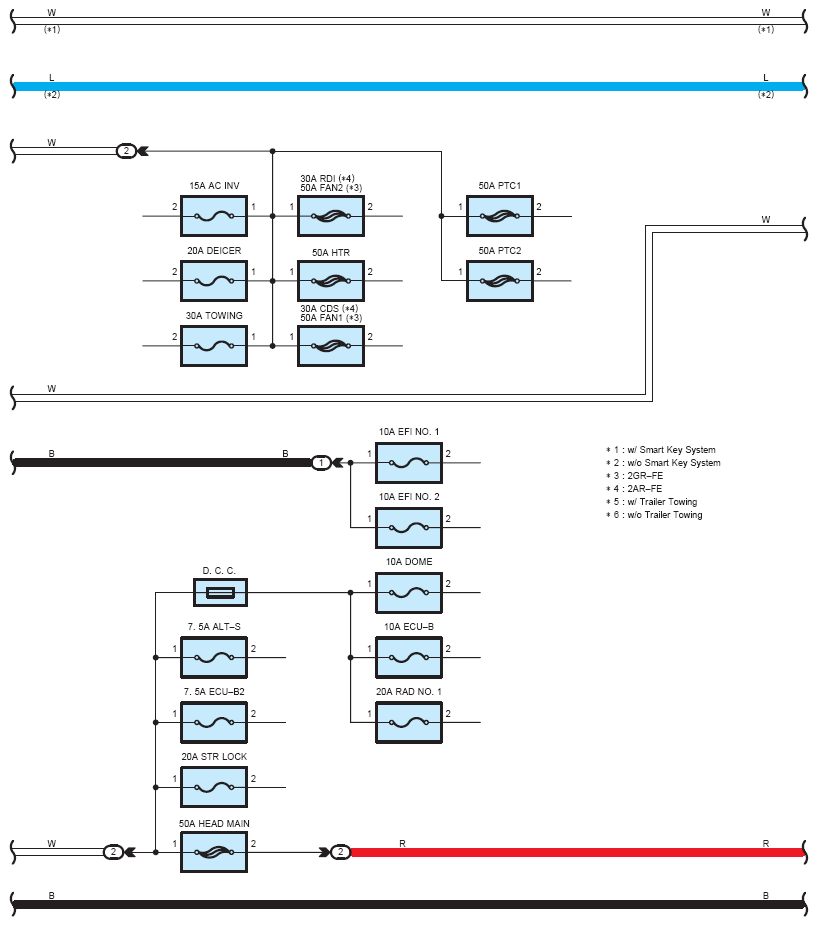

Fig 2: Power Source System Wiring Diagram (2 Of 5)
G08845158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

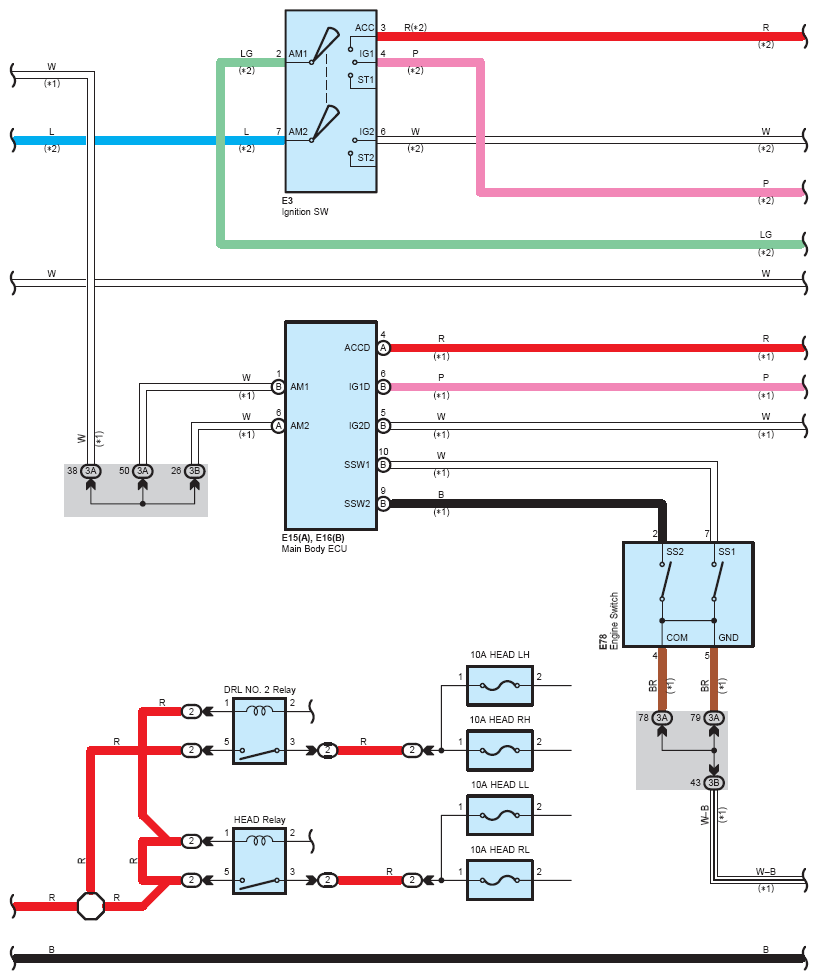

Fig 3: Power Source System Wiring Diagram (3 Of 5)
G08845159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

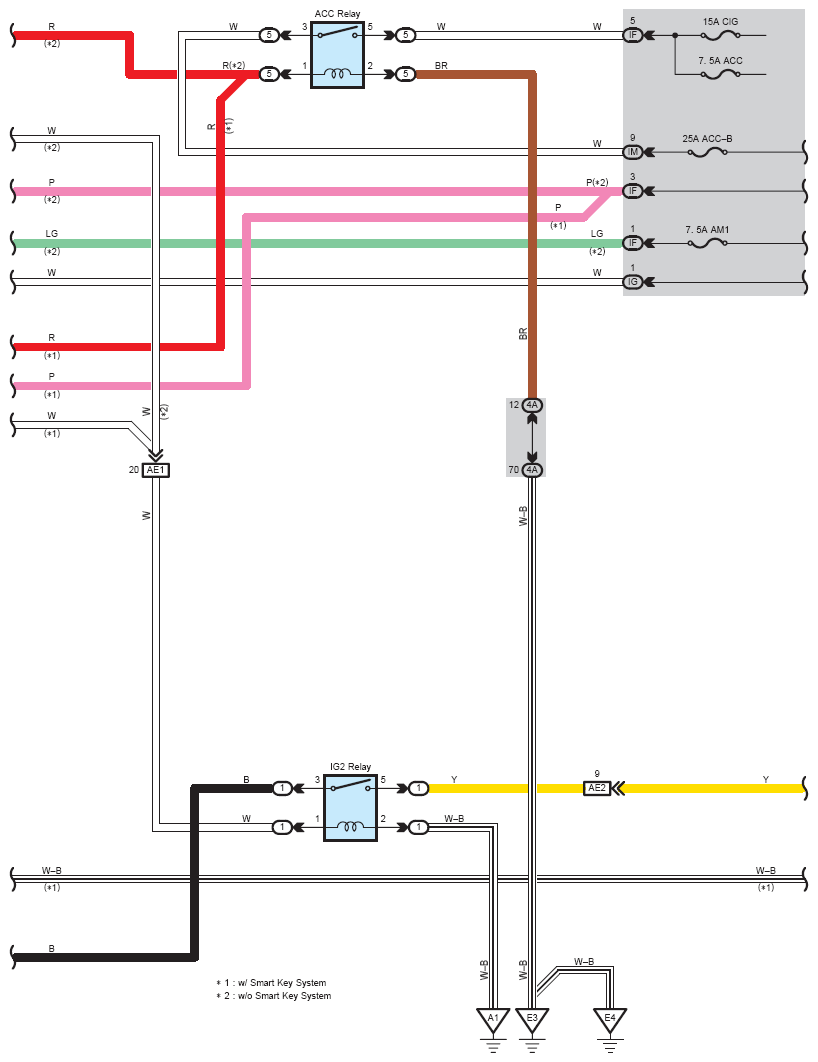

Fig 4: Power Source System Wiring Diagram (4 Of 5)
G08845160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

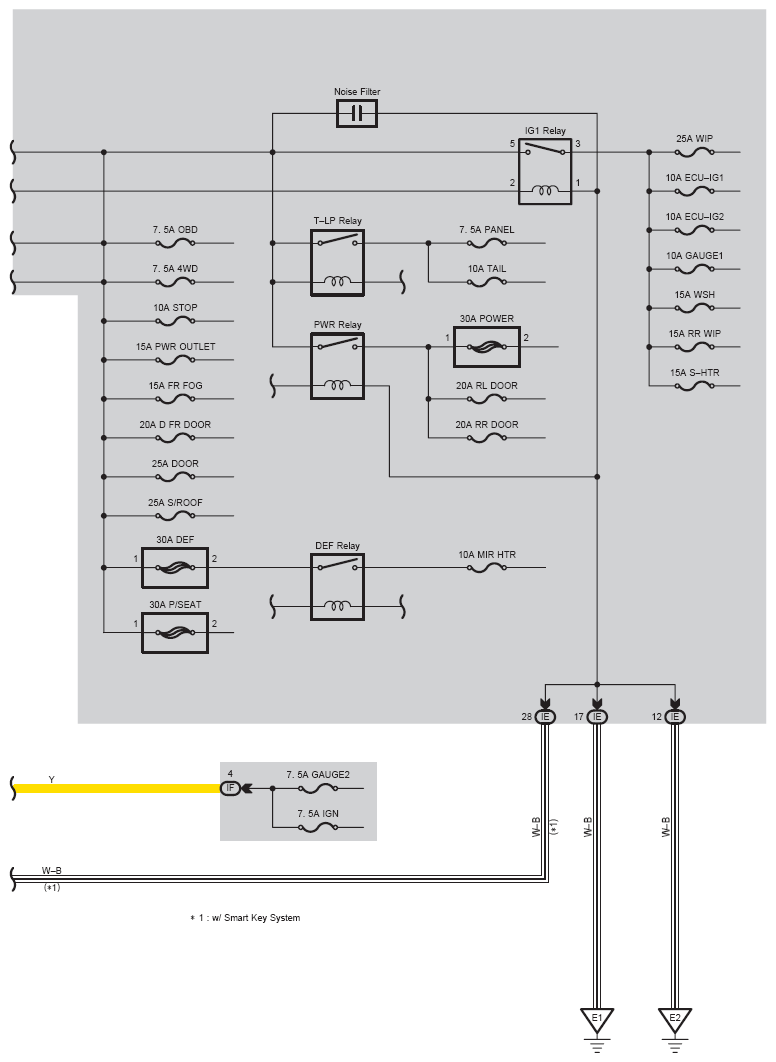

Fig 5: Power Source System Wiring Diagram (5 Of 5)
G08845161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
