Shift Lock: Notes

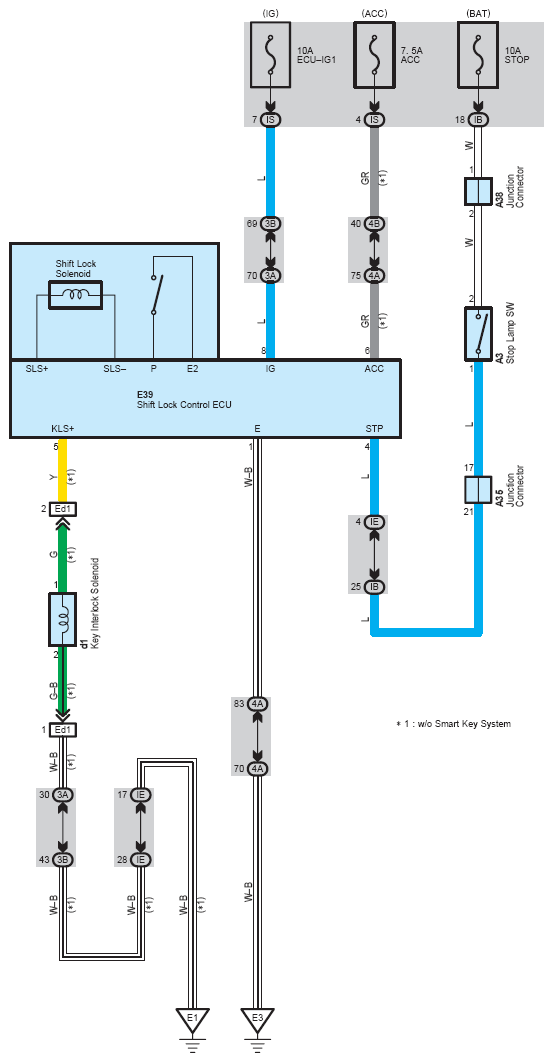

Fig 1: Shift Lock System Wiring Diagram

G08845274

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
