Power Outlet (120V): Notes

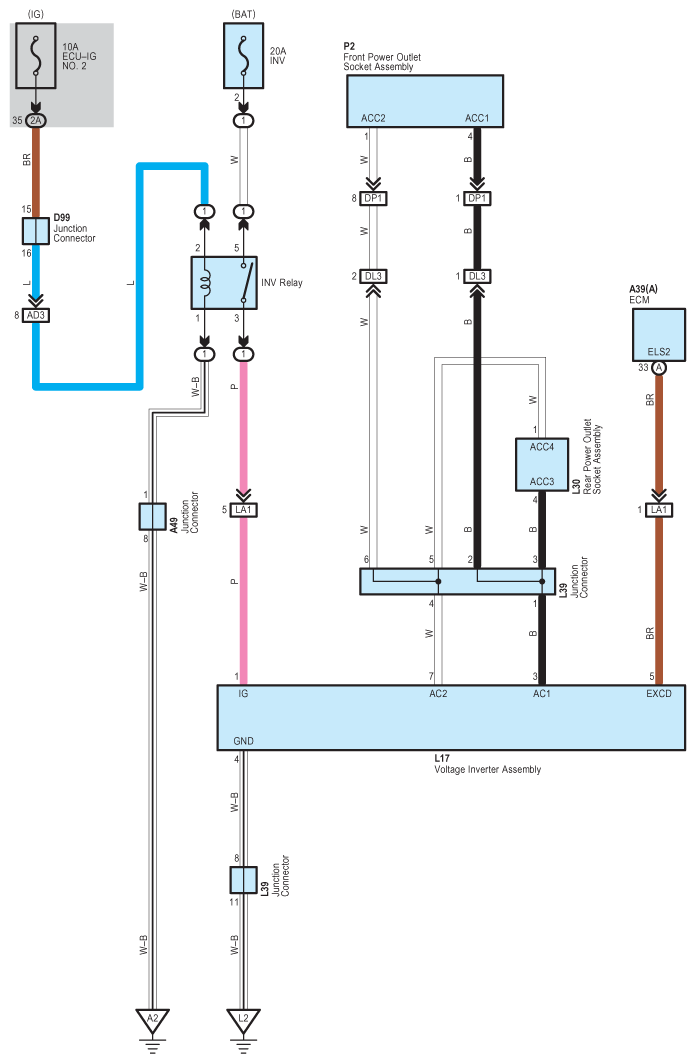

Fig 1: Power Outlet Wiring Diagram (120V)

G08846203

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
