Supplemental Restraint System (Service Information)
›
Steering Pad
›
Components
›
Illustration
Steering Pad: Components: Illustration

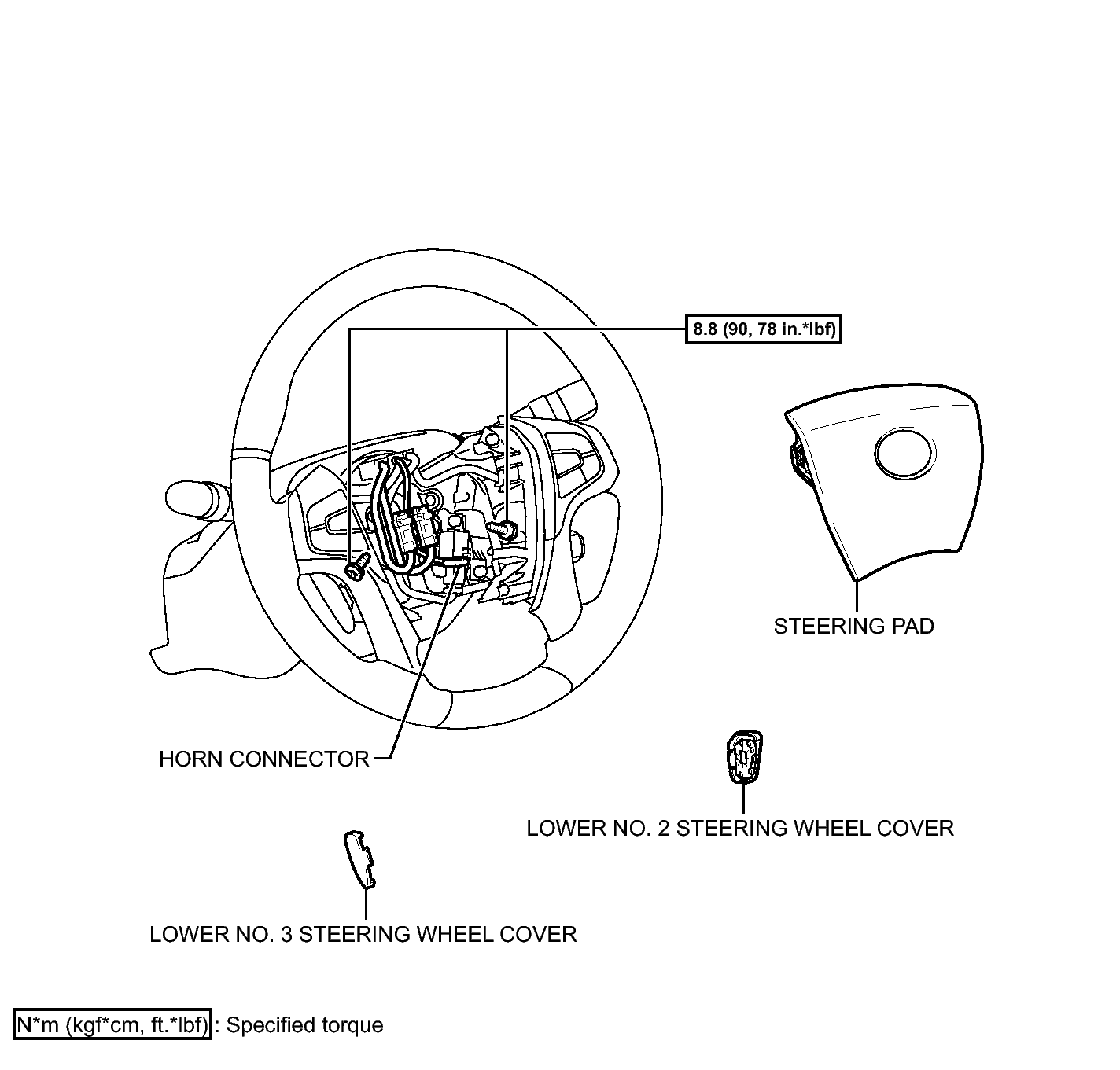

Fig 1: Steering Pad Replacement Components With Torque Specifications
