Front Wiper Deicer: Notes

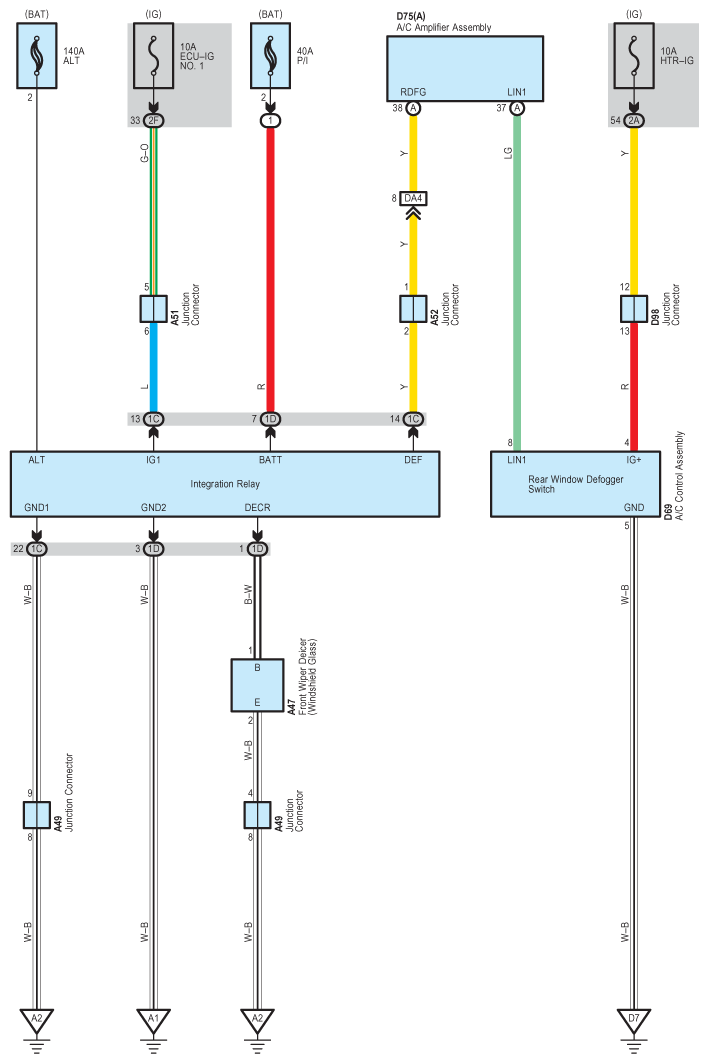

Fig 1: Front Wiper Deicer Wiring Diagram
G08846322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
