Parking Assist (Back Guide Monitor): Notes

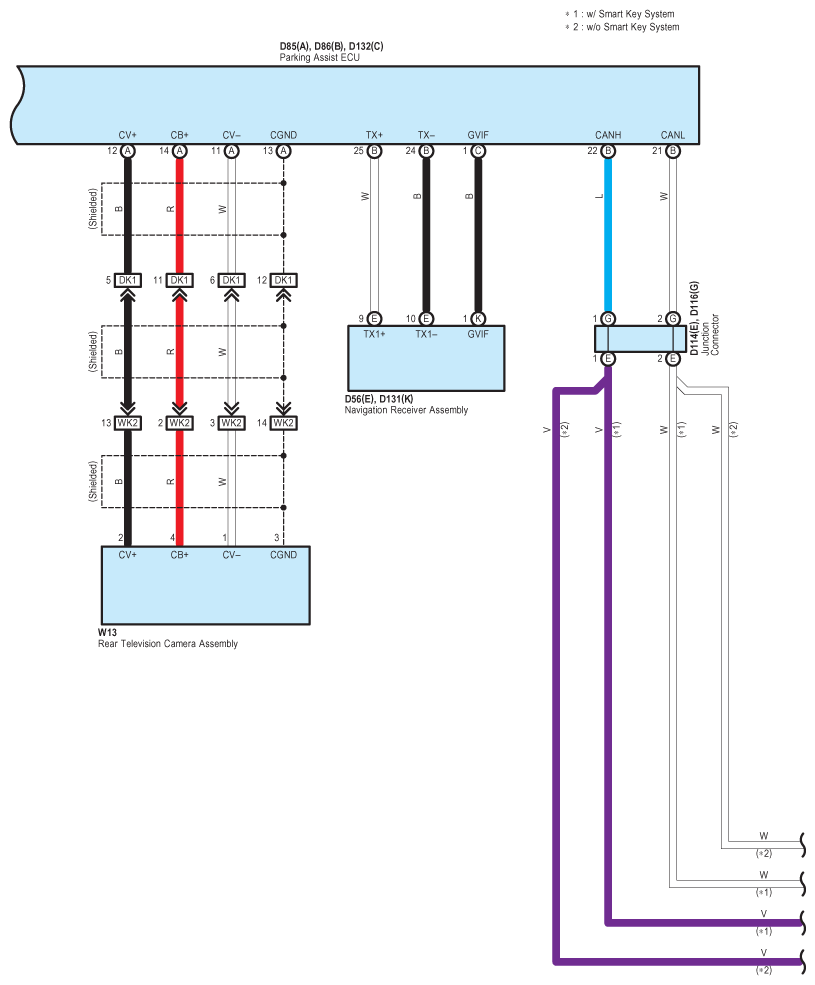

Fig 1: Parking Assist Wiring Diagram (Back Guide Monitor; 1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

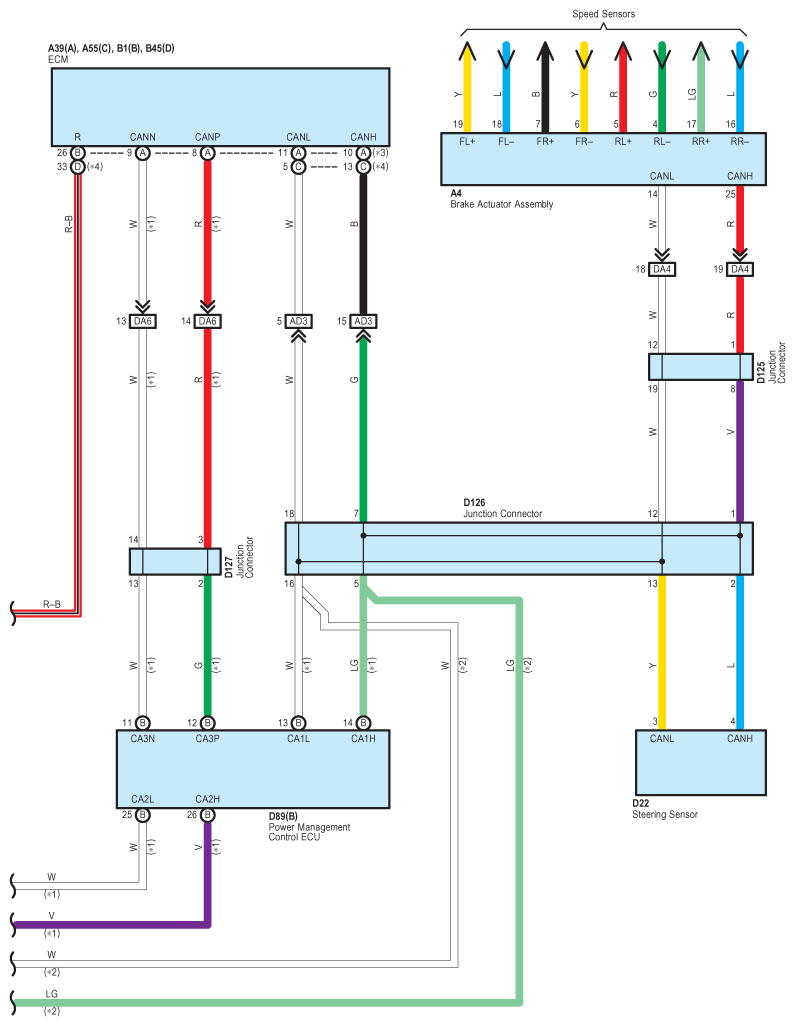

Fig 2: Parking Assist Wiring Diagram (Back Guide Monitor; 2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

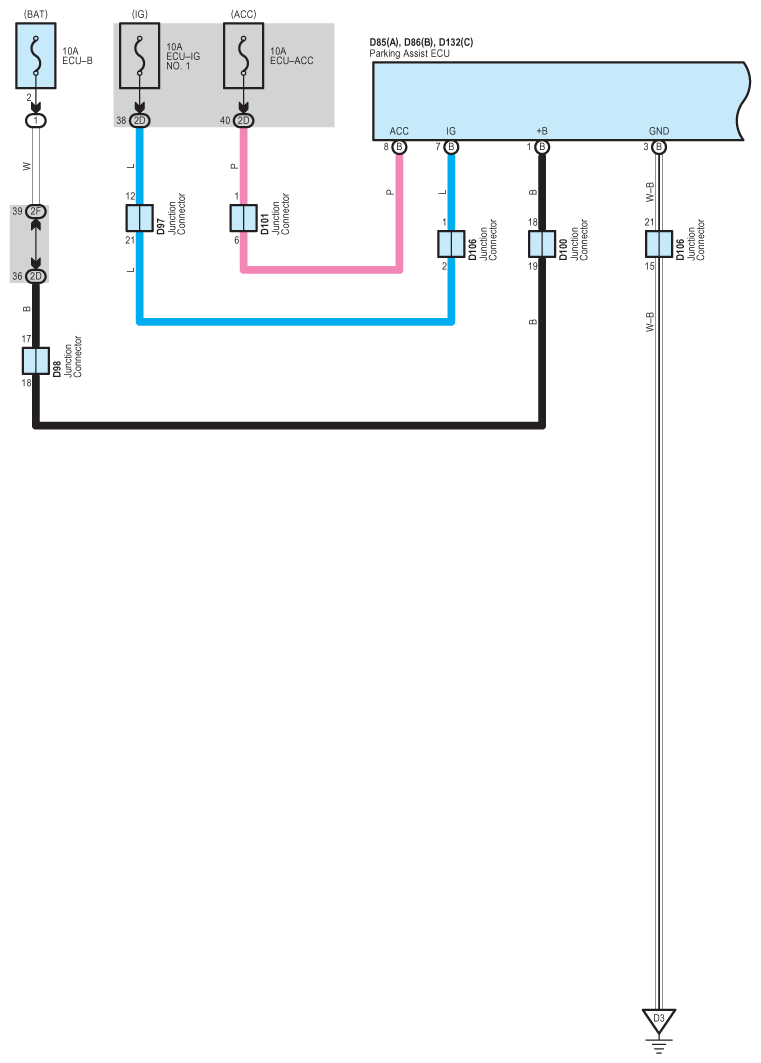

Fig 3: Parking Assist Wiring Diagram (Back Guide Monitor; 3 Of 4)

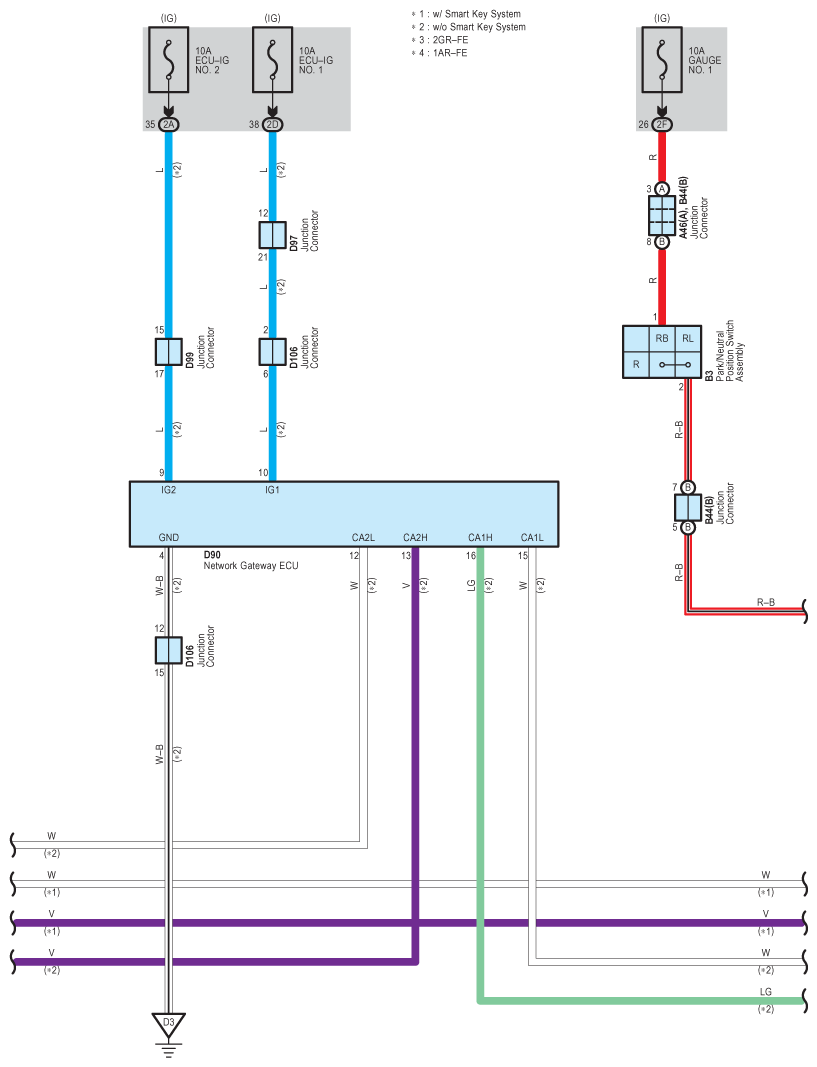

Fig 4: Parking Assist Wiring Diagram (Back Guide Monitor; 4 Of 4)
