Starting (w/o Smart Key System): Notes

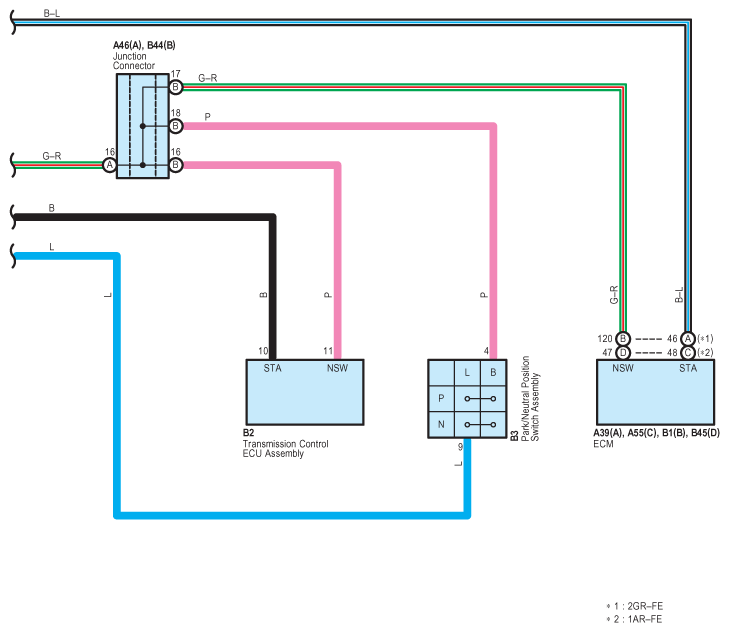

Fig 1: Starting System Wiring Diagram (W/O Smart Key; 1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

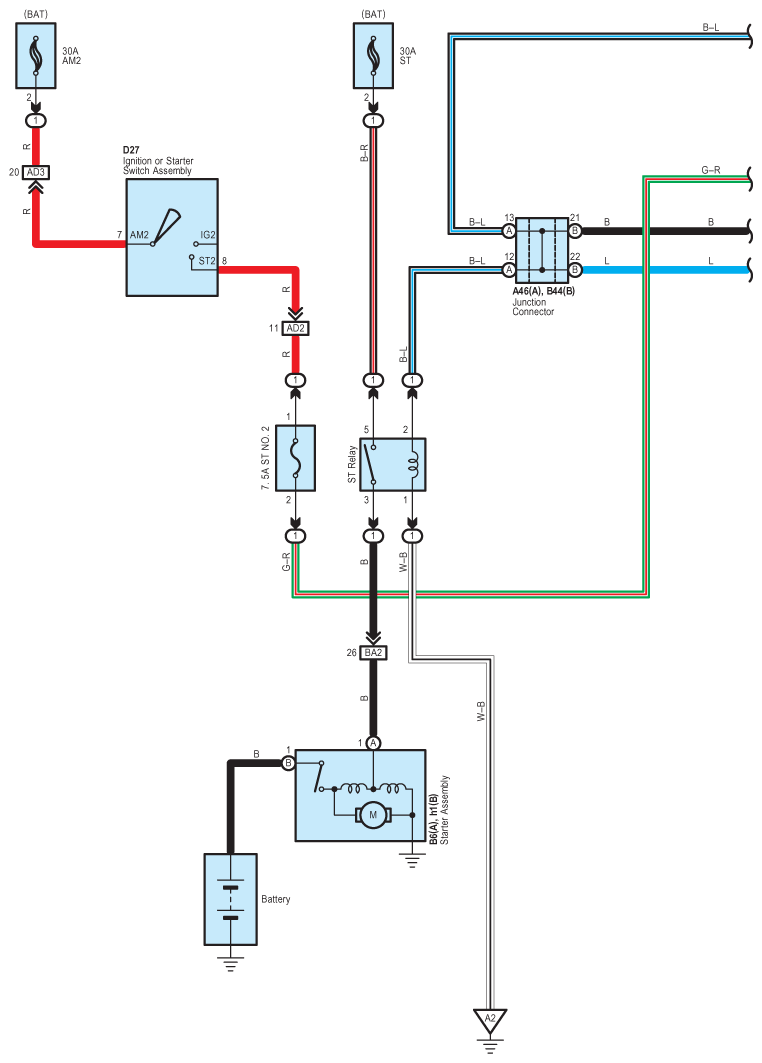

Fig 2: Starting System Wiring Diagram (W/O Smart Key; 2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
