Multiplex Communication System (CAN): Notes

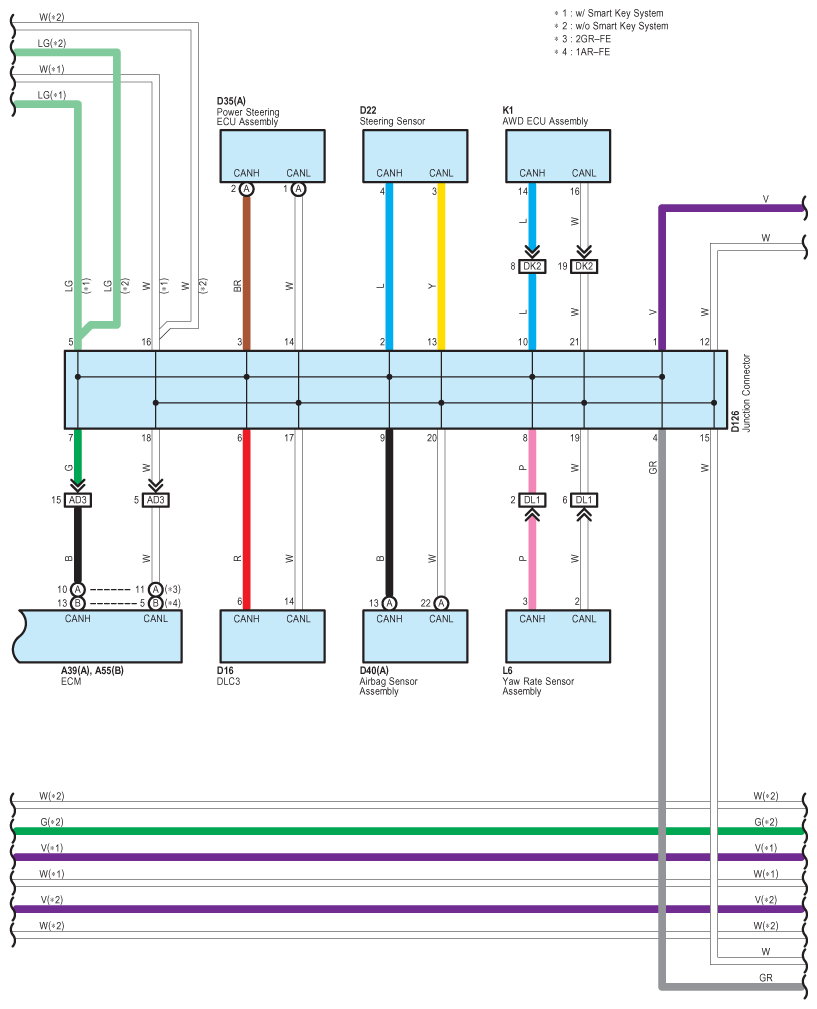

Fig 1: Multiplex Communication System Wiring Diagram (CAN; 1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

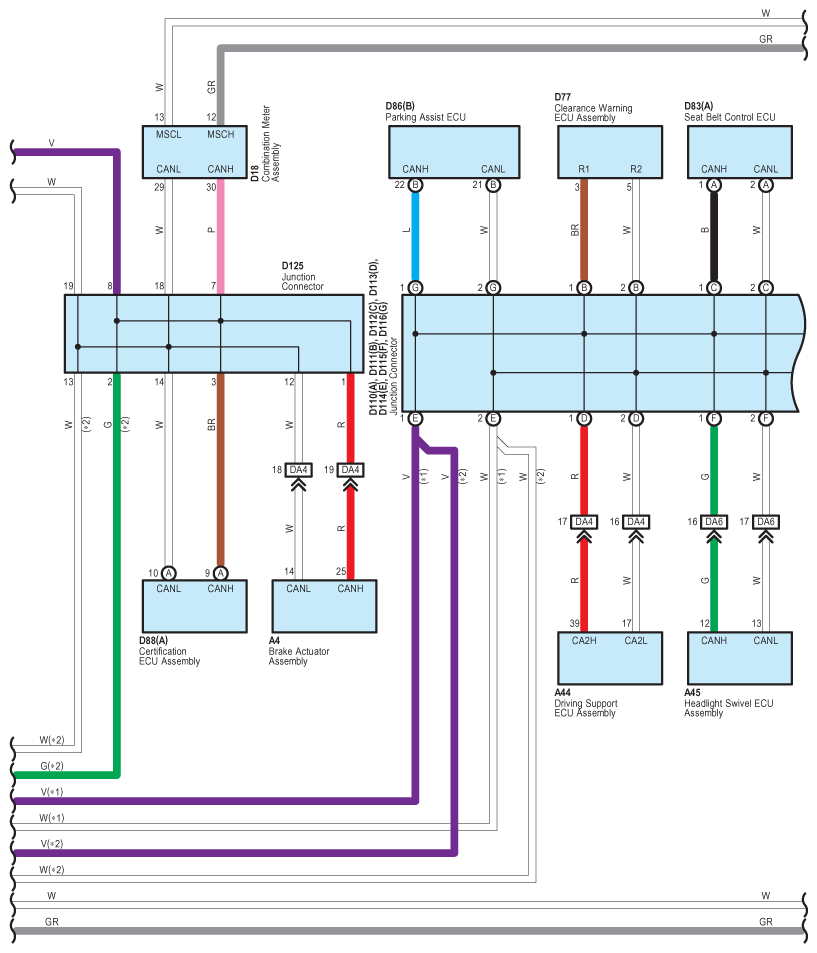

Fig 2: Multiplex Communication System Wiring Diagram (CAN; 2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Multiplex Communication System Wiring Diagram (CAN; 3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Multiplex Communication System Wiring Diagram (CAN; 4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
