Power Back Door: Notes — 2012 Toyota Sienna SE Service Manual ~ FixVault

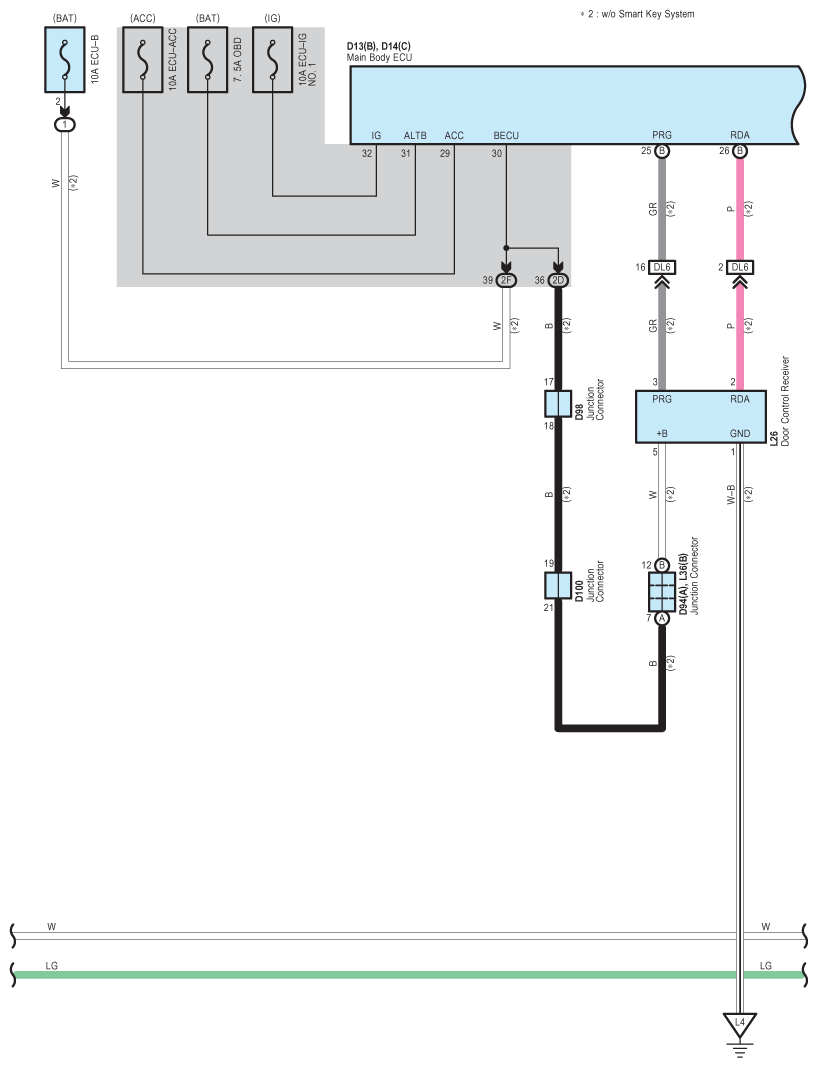

Fig 1: Power Back Door Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

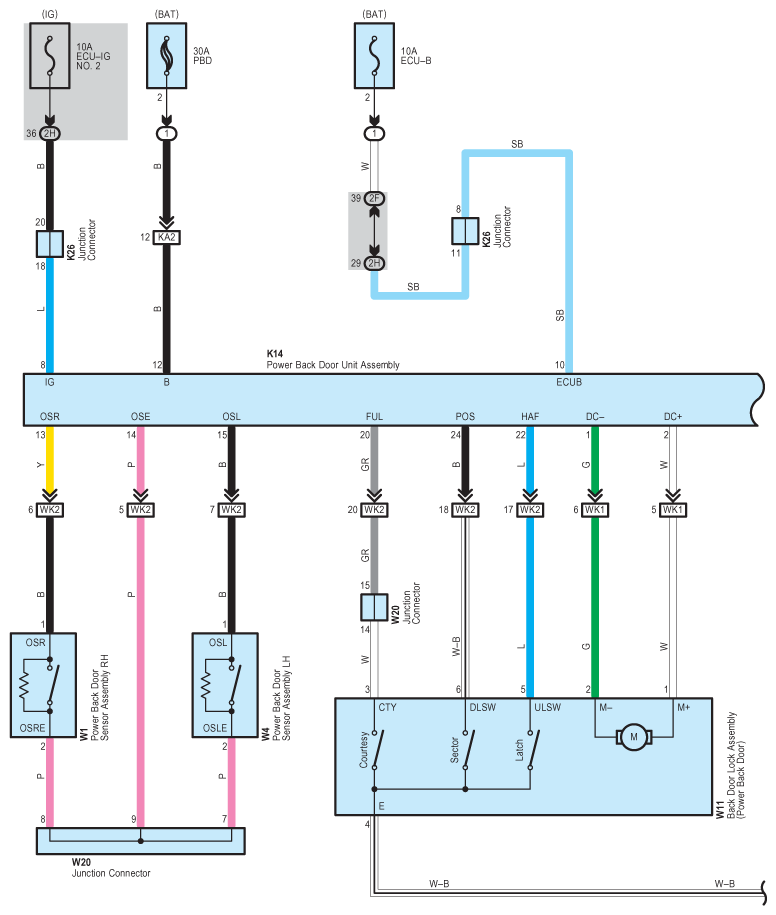

Fig 2: Power Back Door Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Power Back Door Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Power Back Door Wiring Diagram (4 Of 5)

Fig 5: Power Back Door Wiring Diagram (5 Of 5)
