Remote Control Mirror (w/Seat Position Memory): Notes

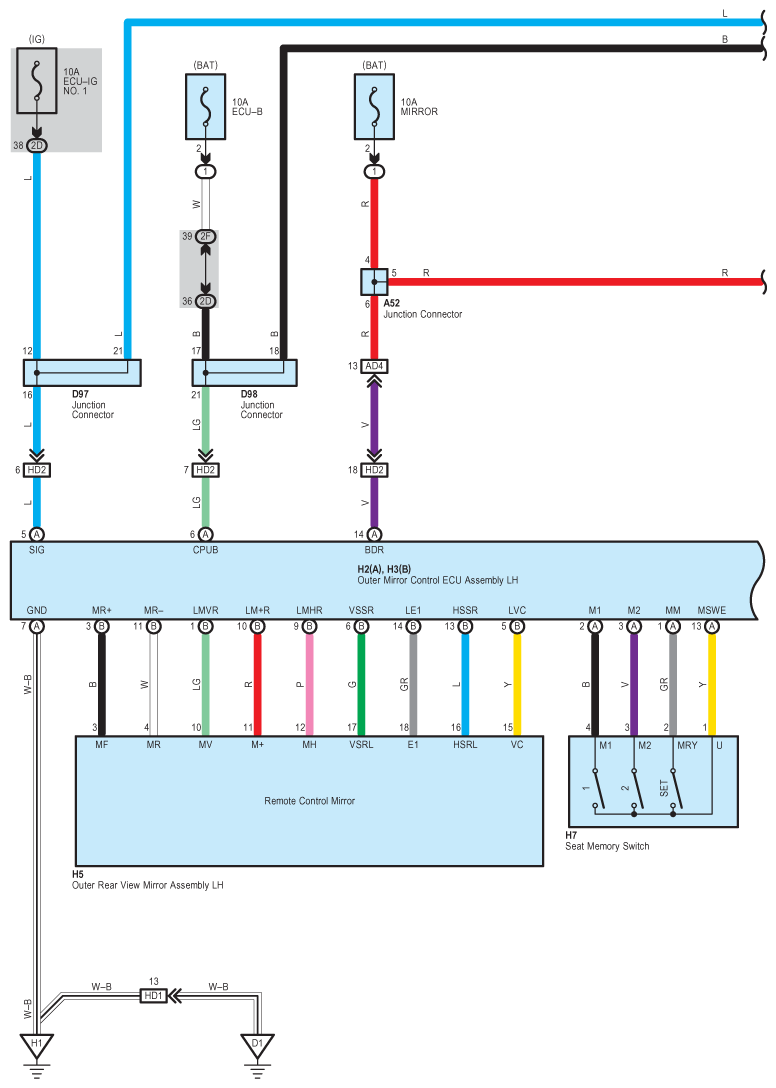

Fig 1: Remote Control Mirror Wiring Diagram (W/ Seat Position Memory; 1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

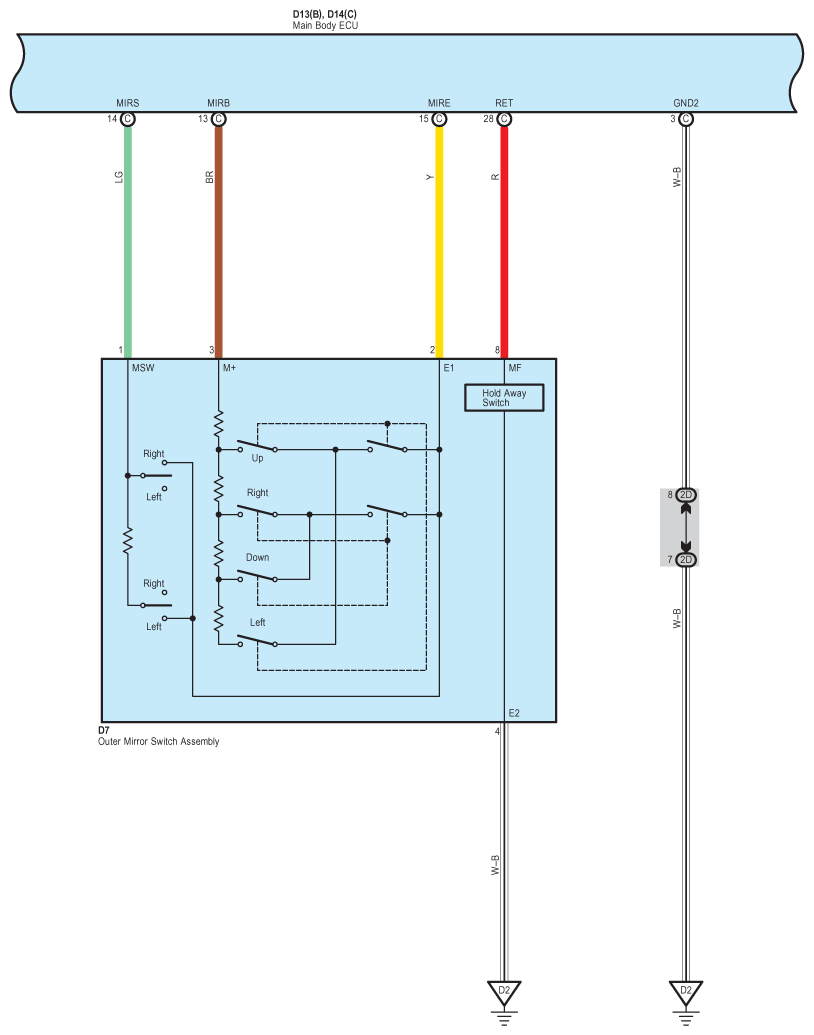

Fig 2: Remote Control Mirror Wiring Diagram (W/ Seat Position Memory; 2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Remote Control Mirror Wiring Diagram (W/ Seat Position Memory; 3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Remote Control Mirror Wiring Diagram (W/ Seat Position Memory; 4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Remote Control Mirror Wiring Diagram (W/ Seat Position Memory; 5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
