Remote Control Mirror (w/o Seat Position Memory)
›
Notes
Remote Control Mirror (w/o Seat Position Memory): Notes

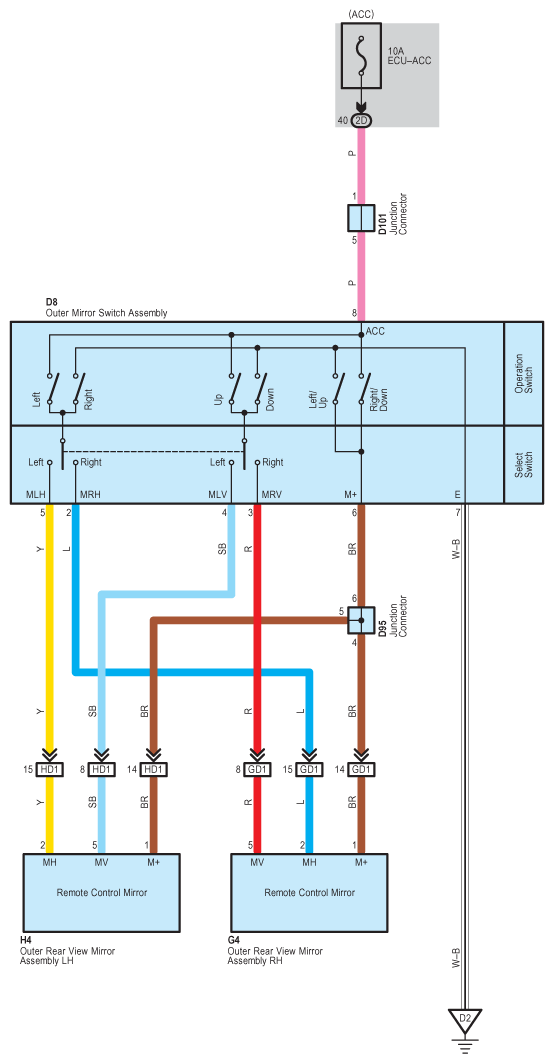

Fig 1: Remote Control Mirror Wiring Diagram (W/O Seat Position Memory)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
