Toyota
›
2012
›
Sienna SE
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Stop Light
›
Notes
Stop Light: Notes

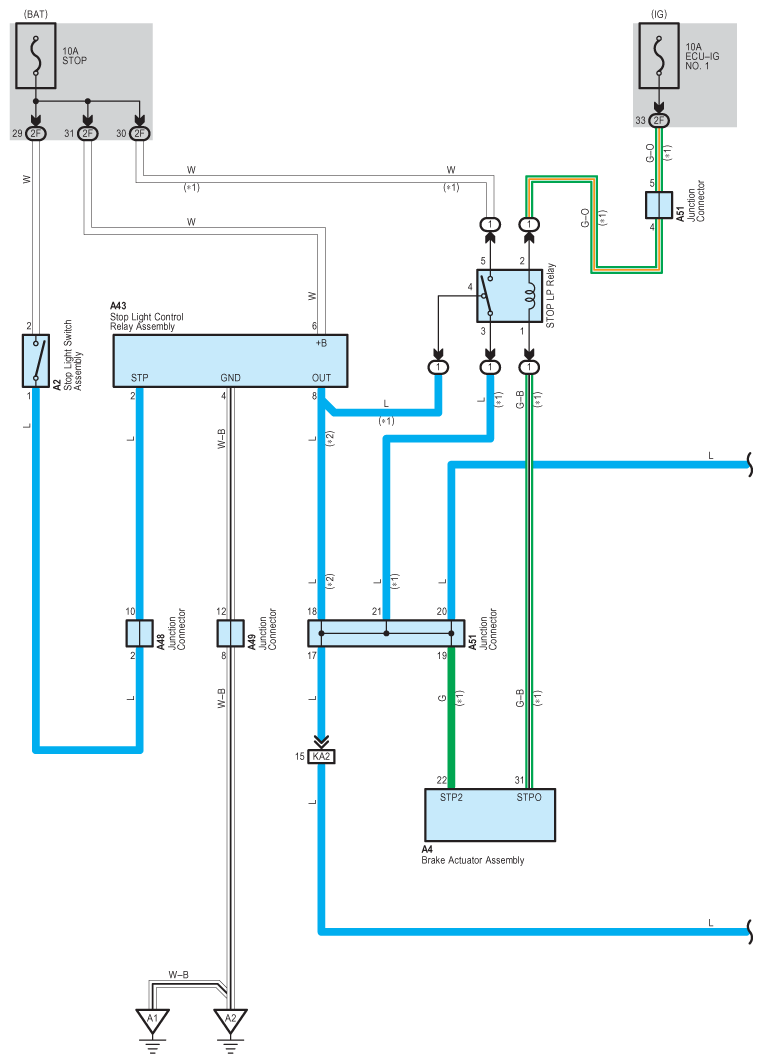

Fig 1: Stop Light Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

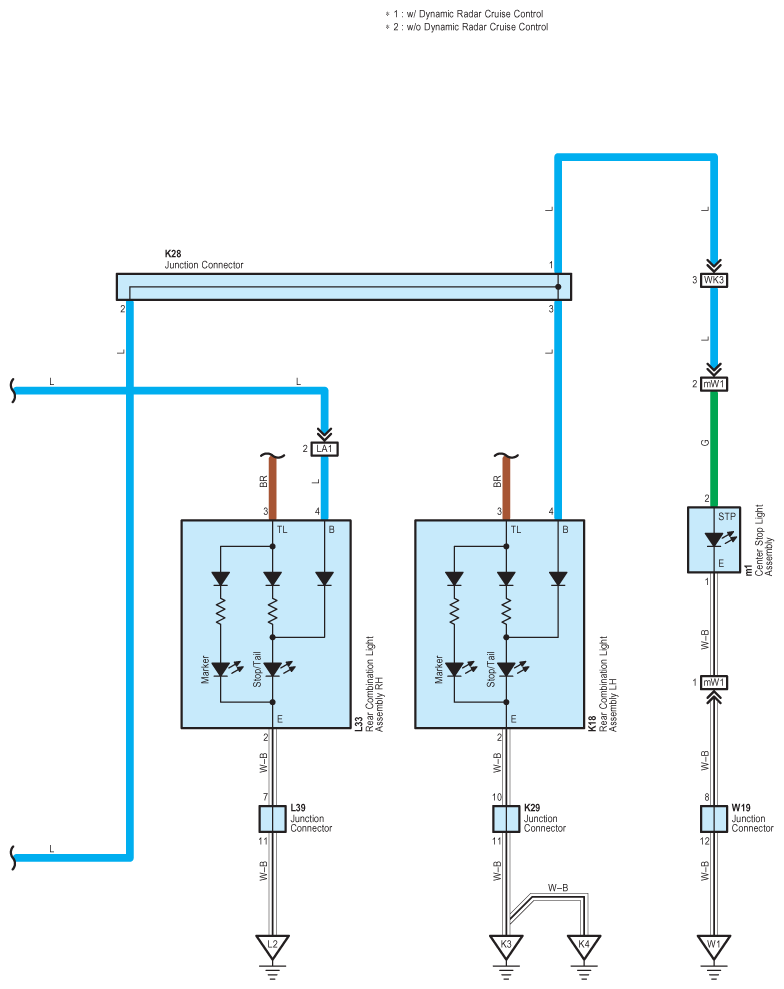

Fig 2: Stop Light Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
