Steering Column Assembly: Components: Illustration

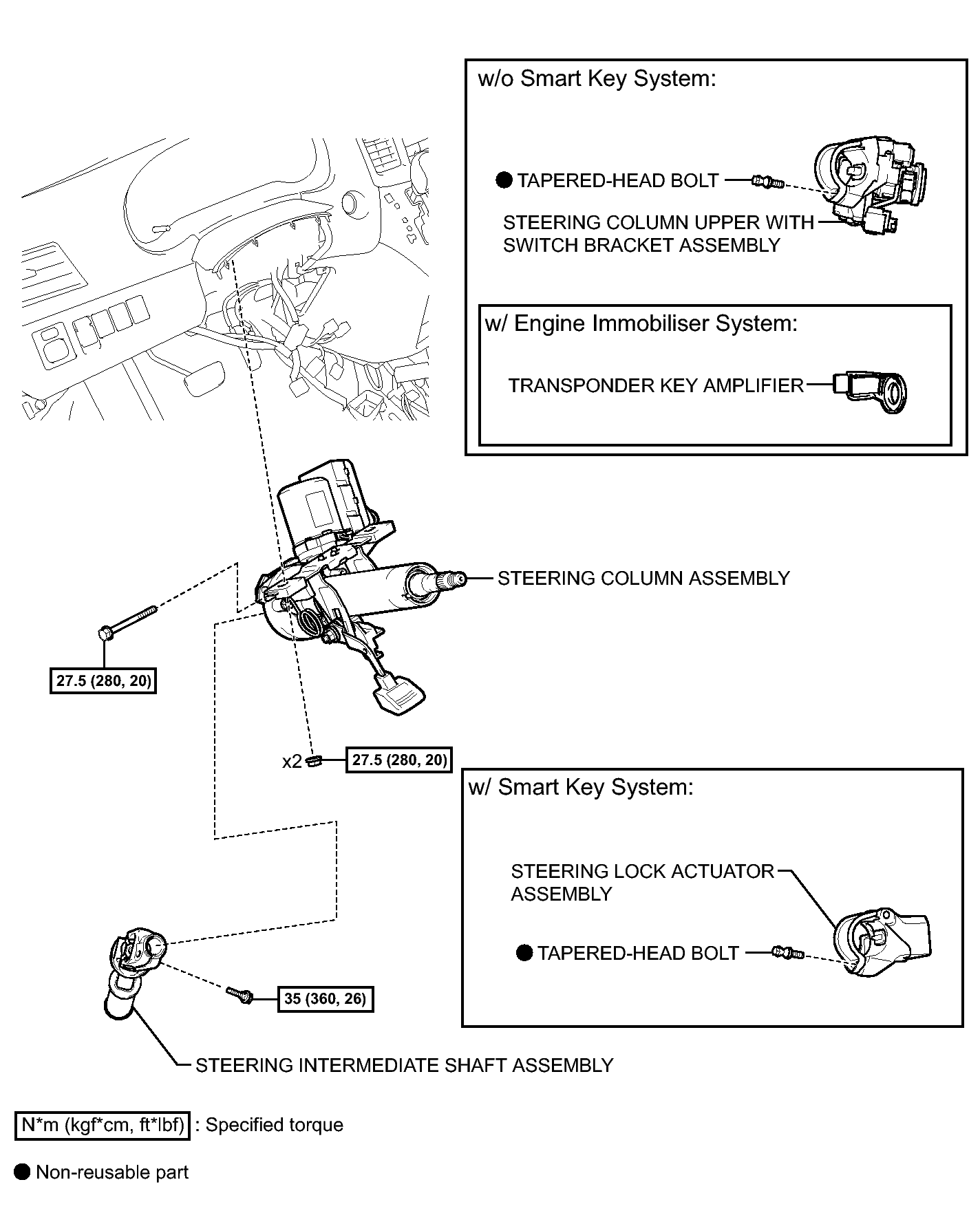

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (1 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

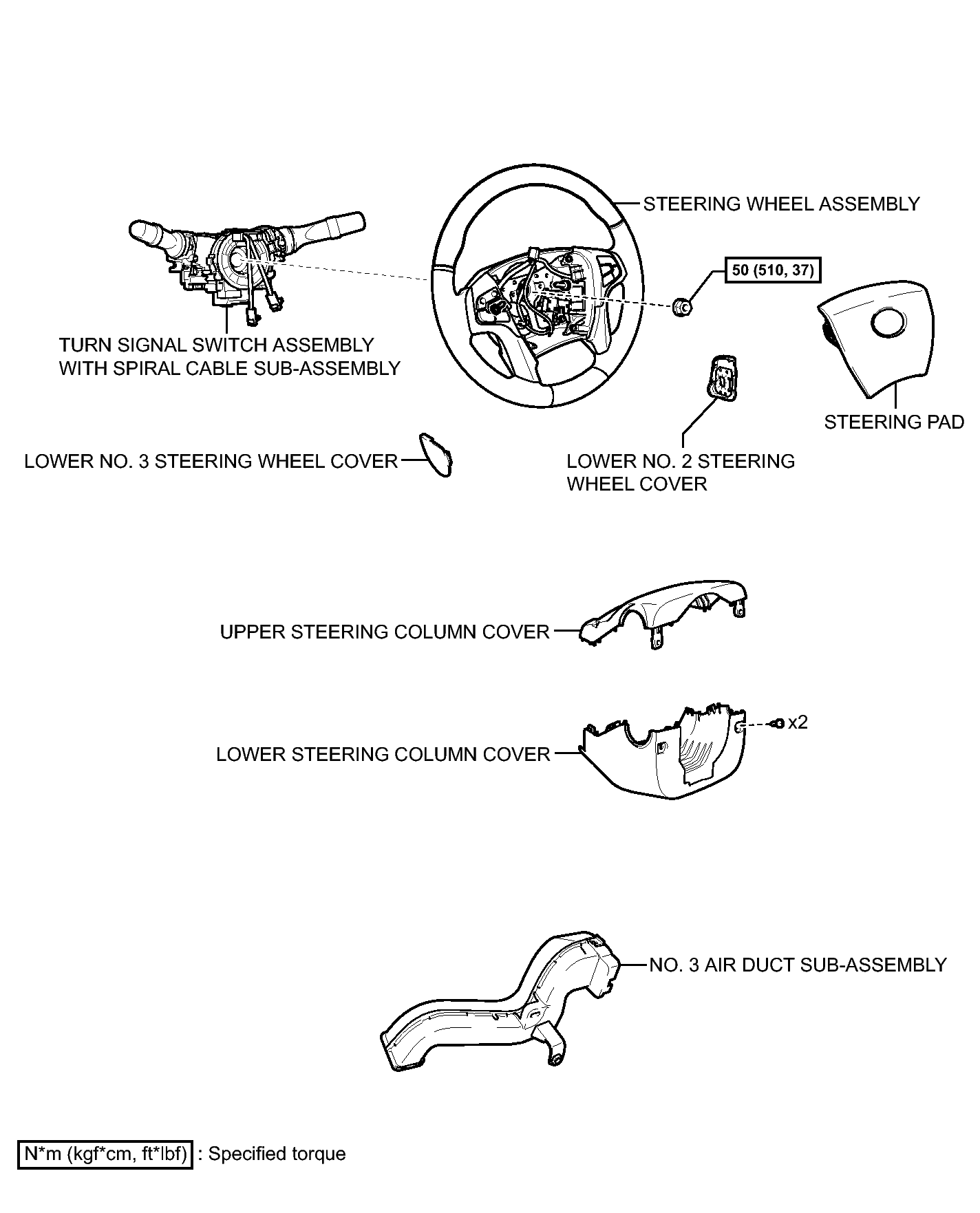

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (2 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

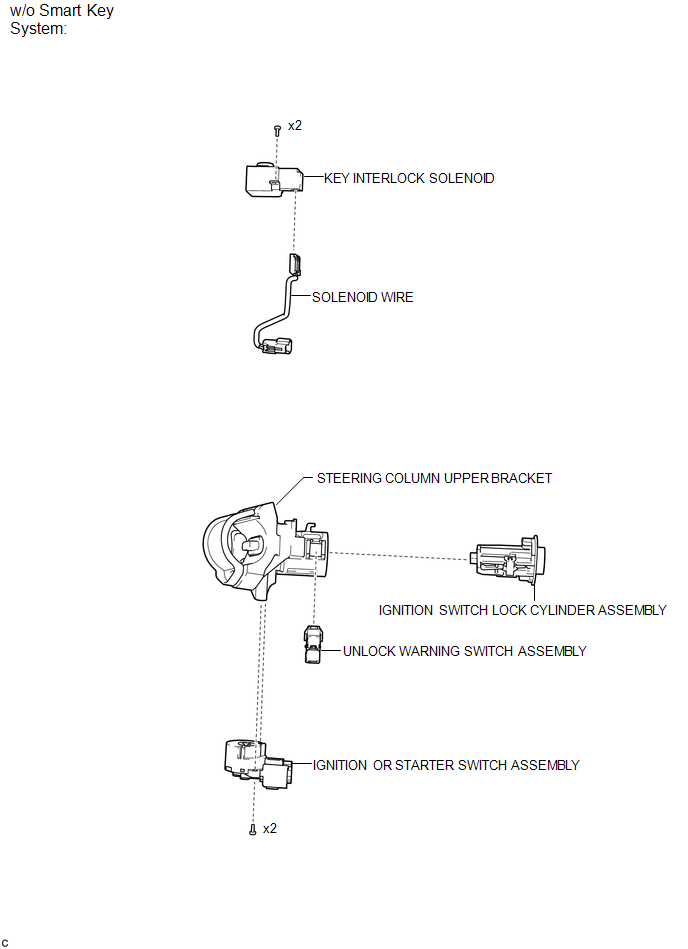

Fig 1: Steering Column Assembly Replacement Components (w/o Smart Key System) (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
