System Diagram

SYSTEM DIAGRAM

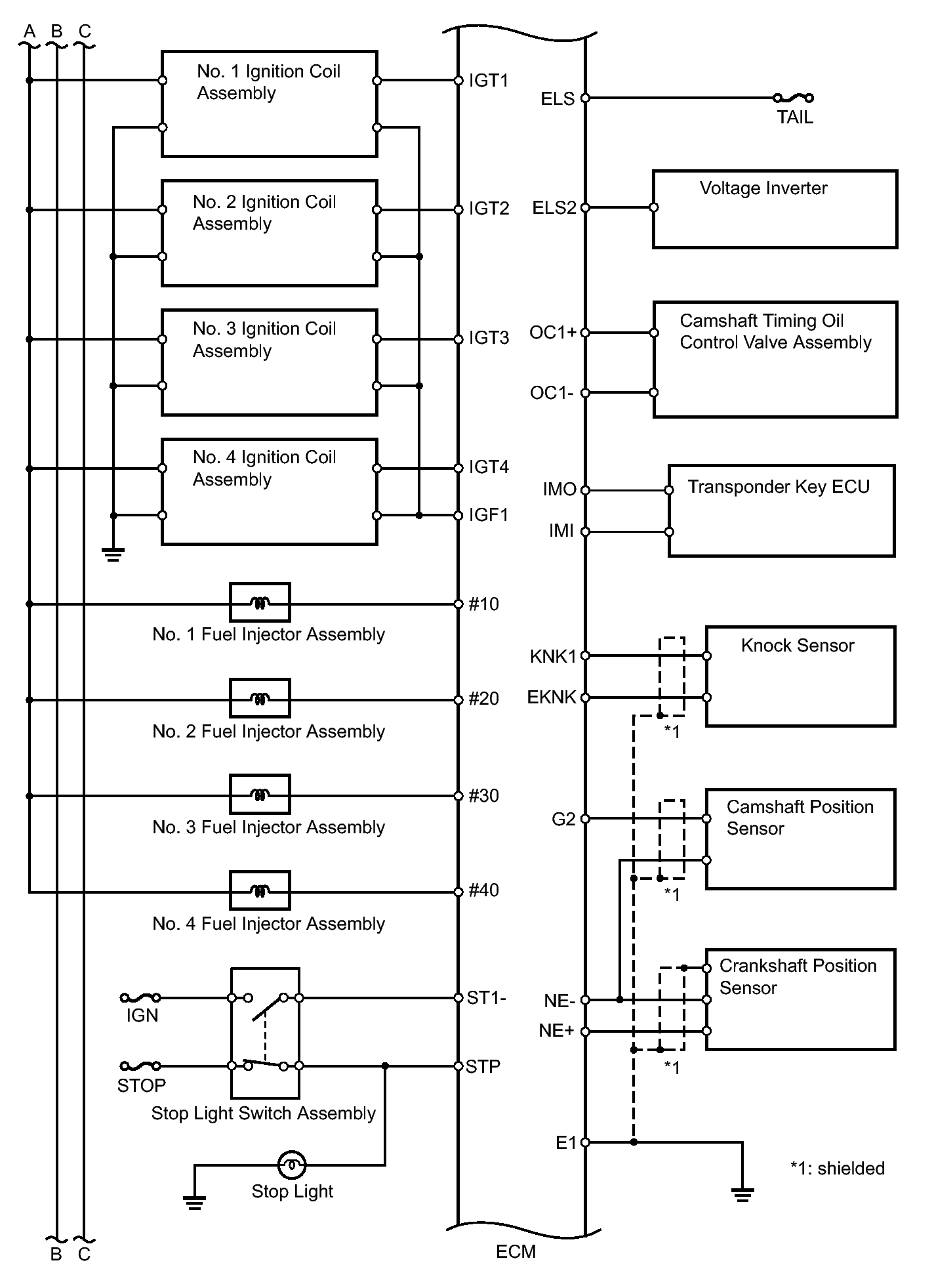

Fig 1: SFI System Wiring Diagram (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

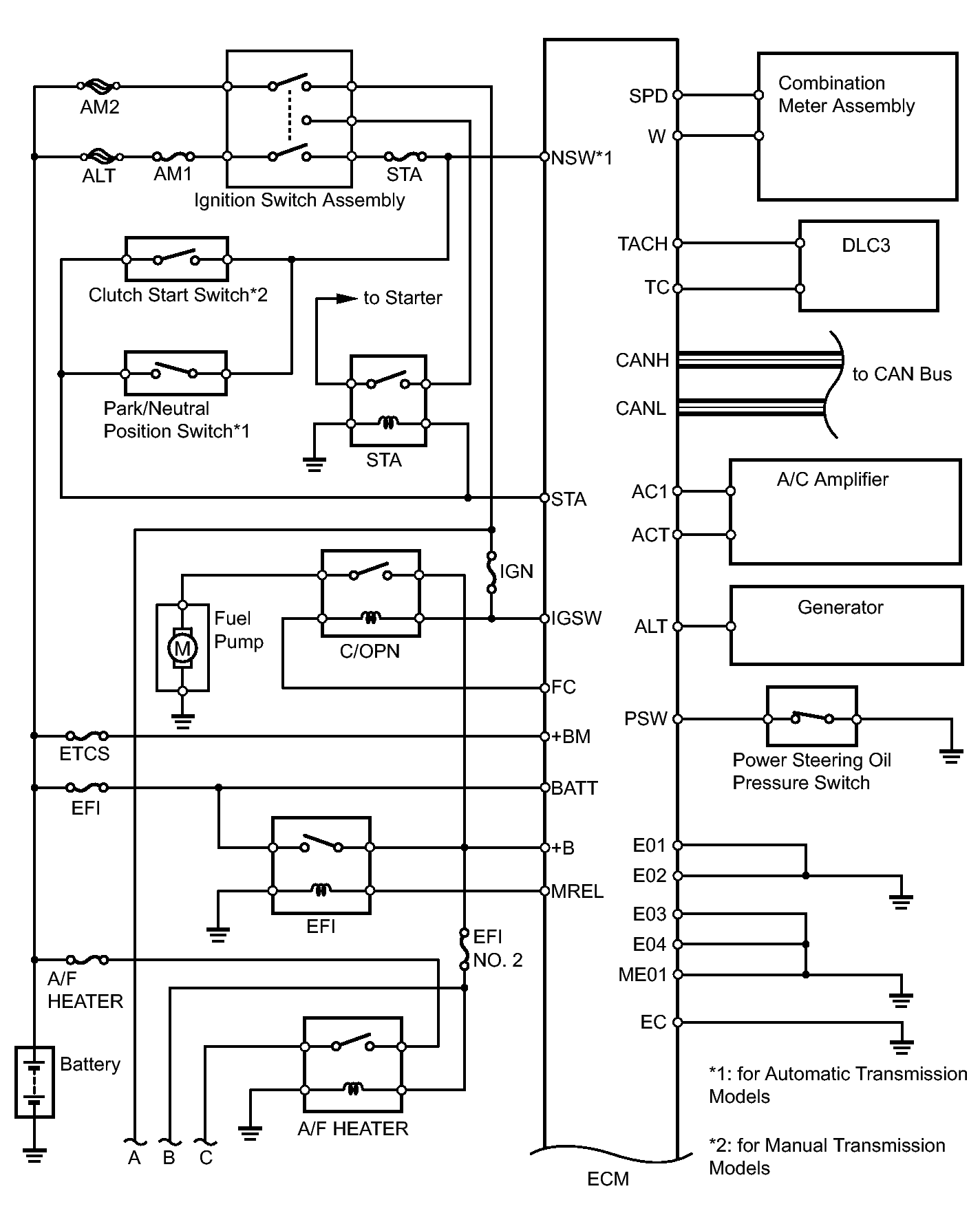

Fig 2: SFI System Wiring Diagram (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

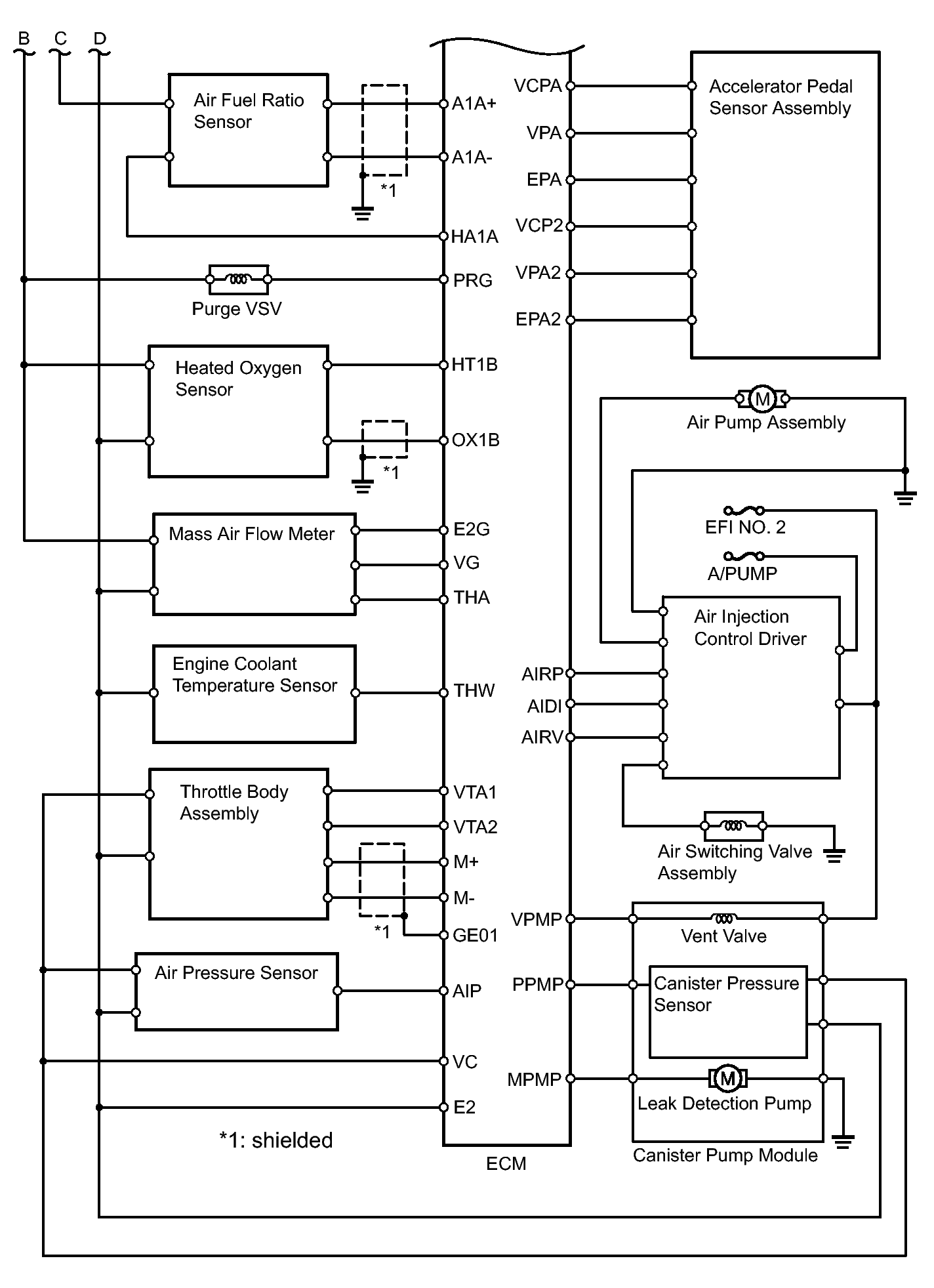

Fig 3: SFI System Wiring Diagram (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

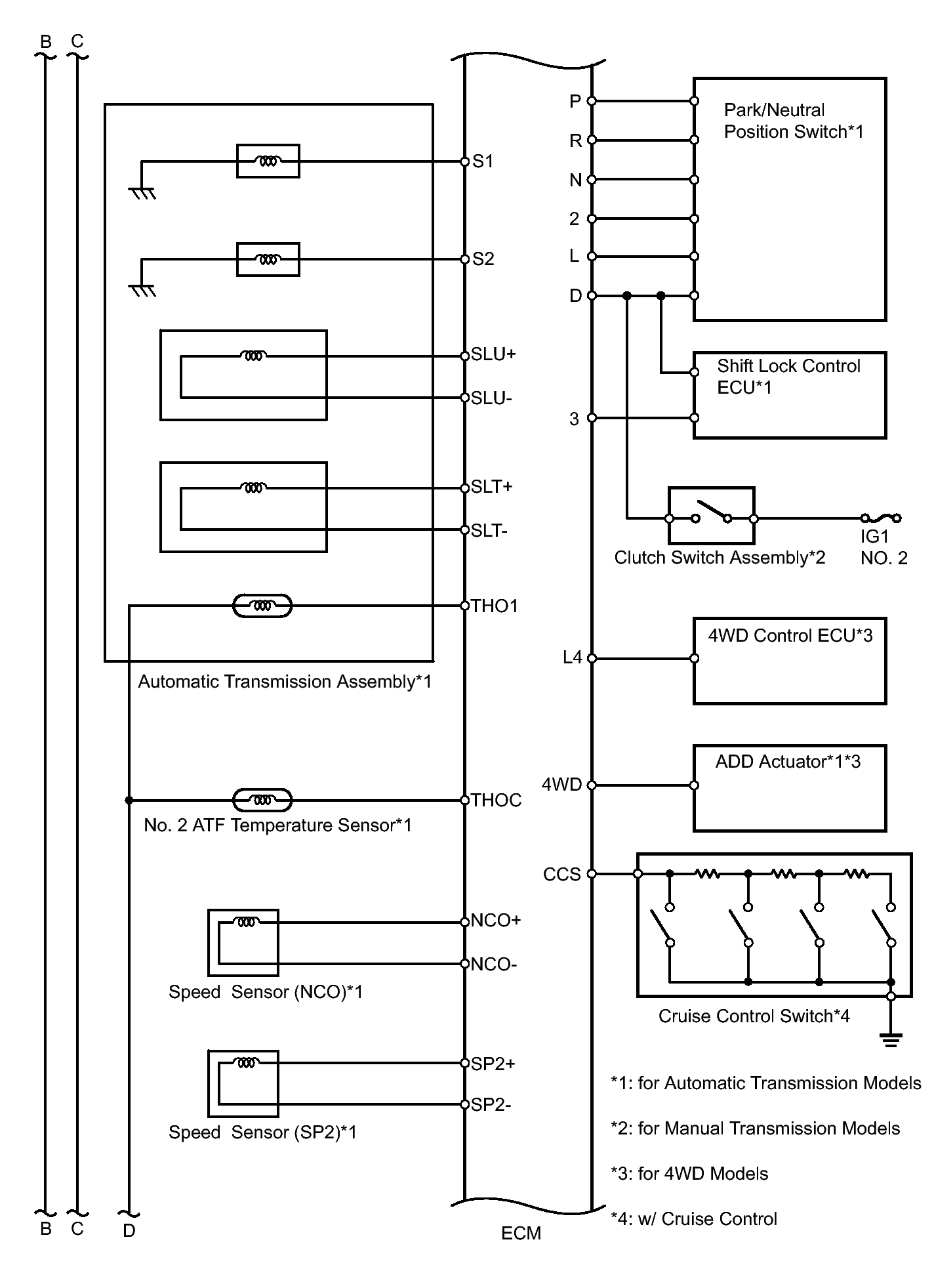

Fig 4: SFI System Wiring Diagram (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION WITH OTHER COMPUTERS
HINT:

For CAN communication line connection information, refer to CAN Communication System. Refer to SYSTEM DESCRIPTION .
