Remote Up / Down Function does not Operate: Wiring Diagram

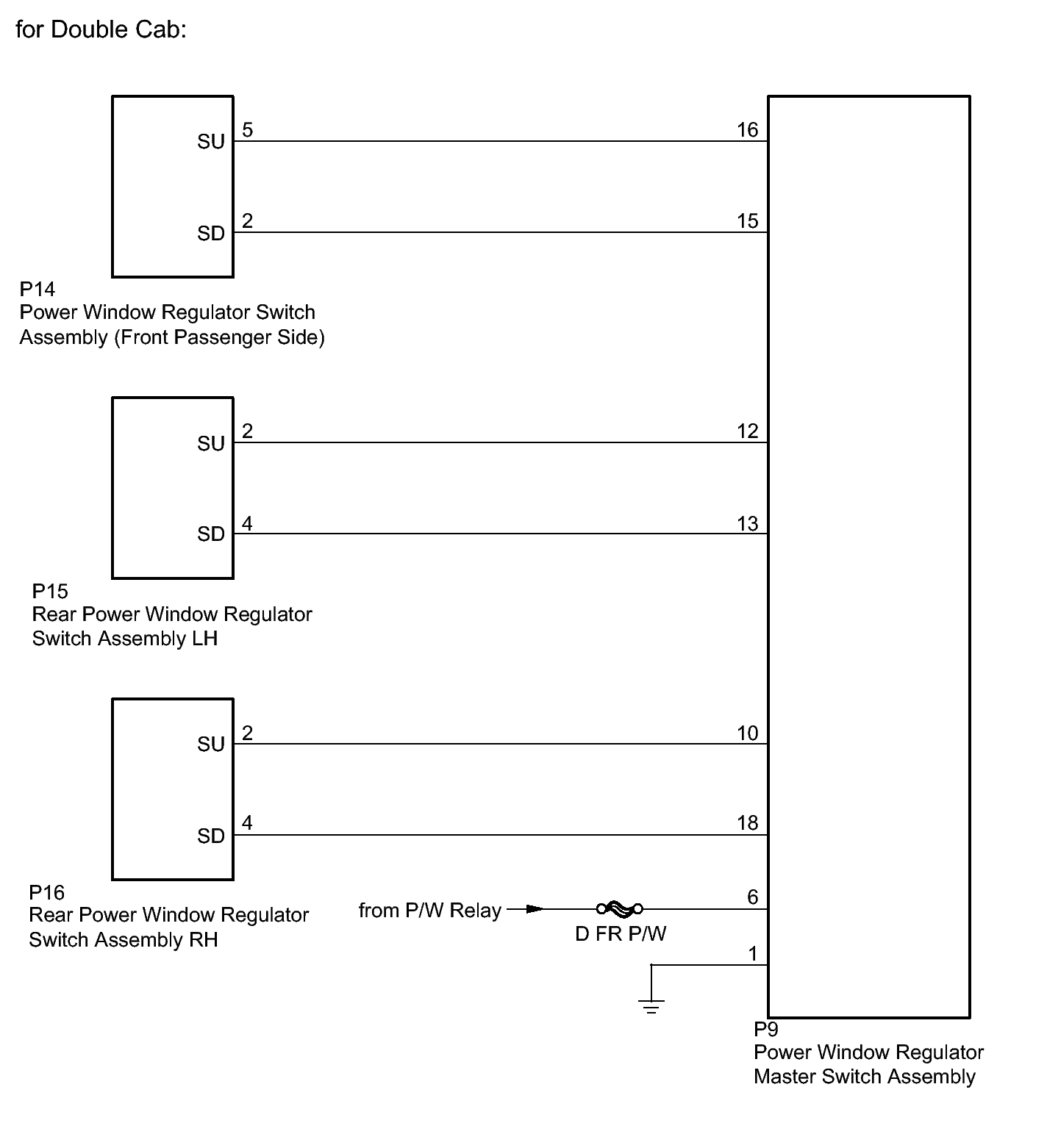

Fig 1: Power Window Control System Wiring Diagram (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Power Window Control System Wiring Diagram (Access Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
