Combination Meter: Notes

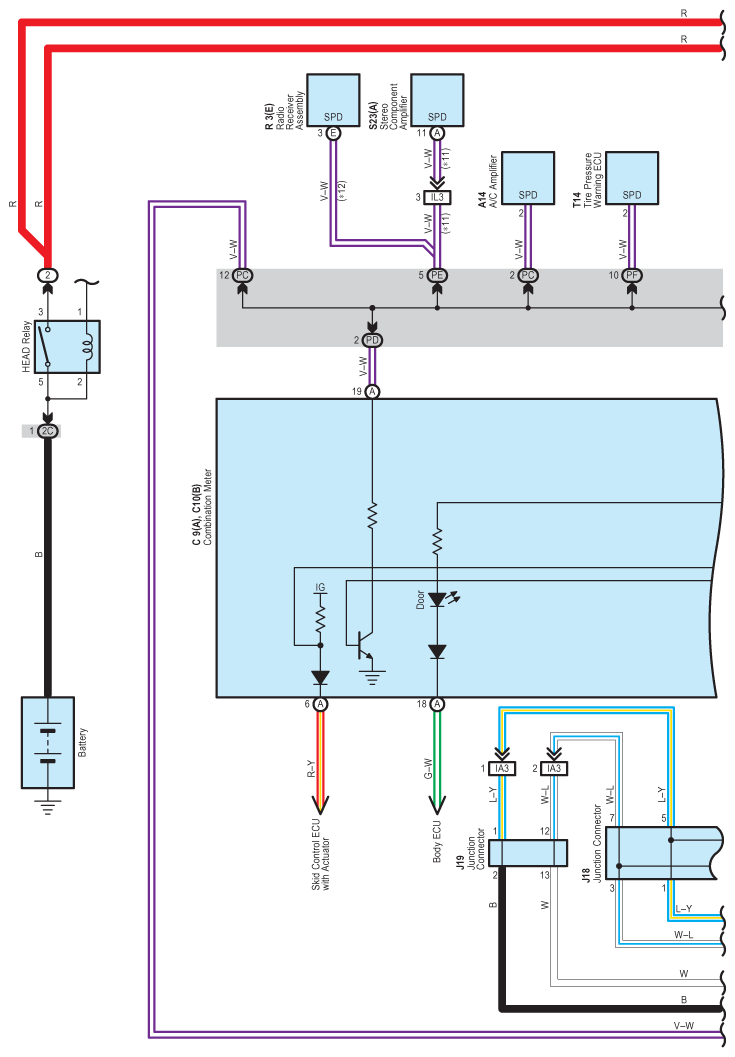

Fig 1: Combination Meter Wiring Diagram (1 Of 7)

G08847290

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

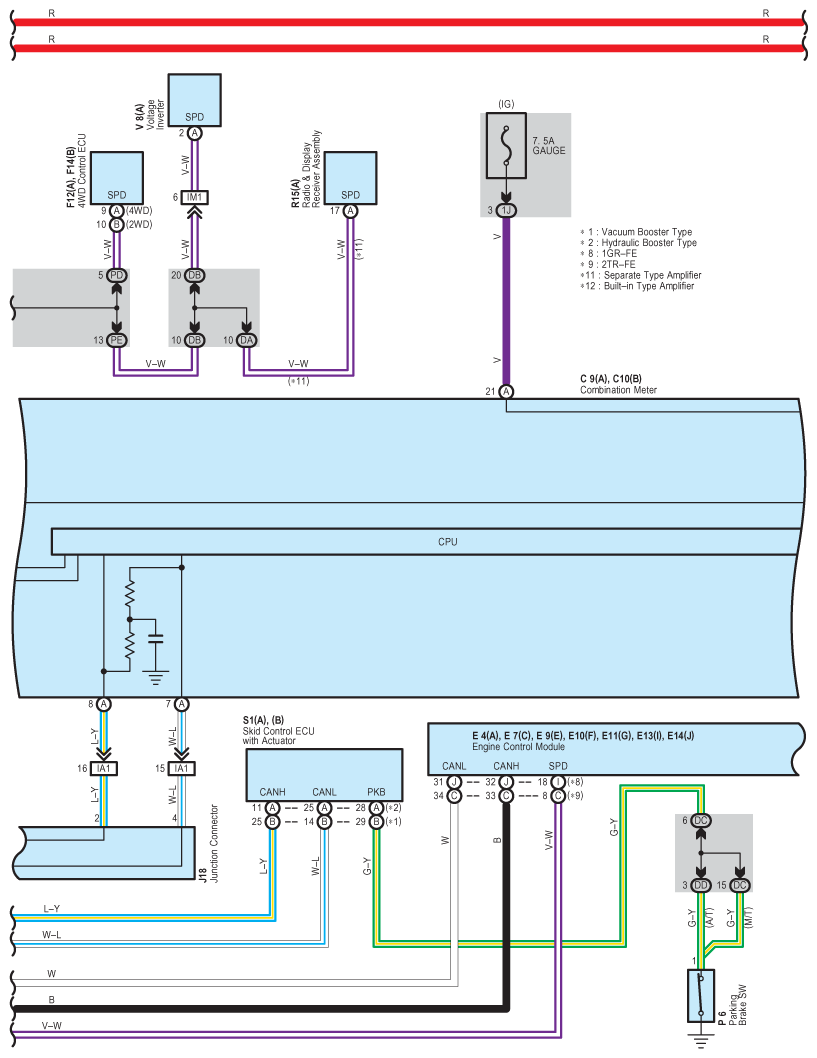

Fig 2: Combination Meter Wiring Diagram (2 Of 7)

G08847291

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

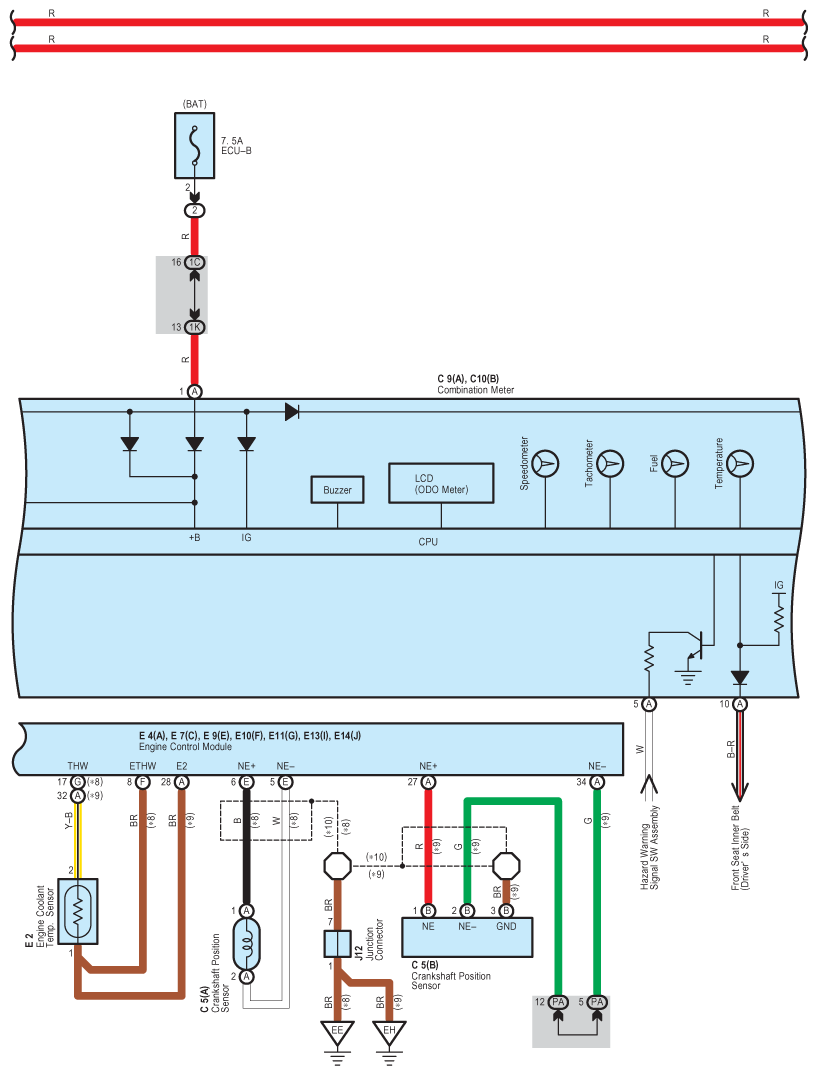

Fig 3: Combination Meter Wiring Diagram (3 Of 7)

G08847292

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

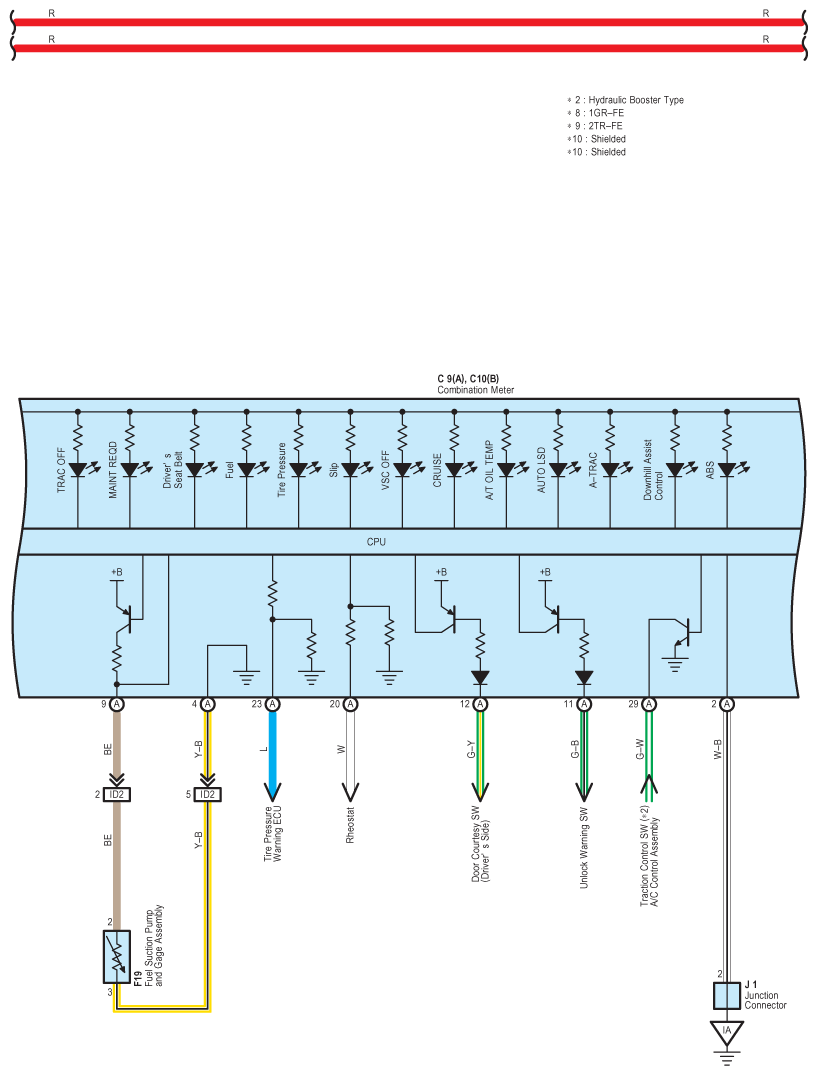

Fig 4: Combination Meter Wiring Diagram (4 Of 7)

G08847293

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

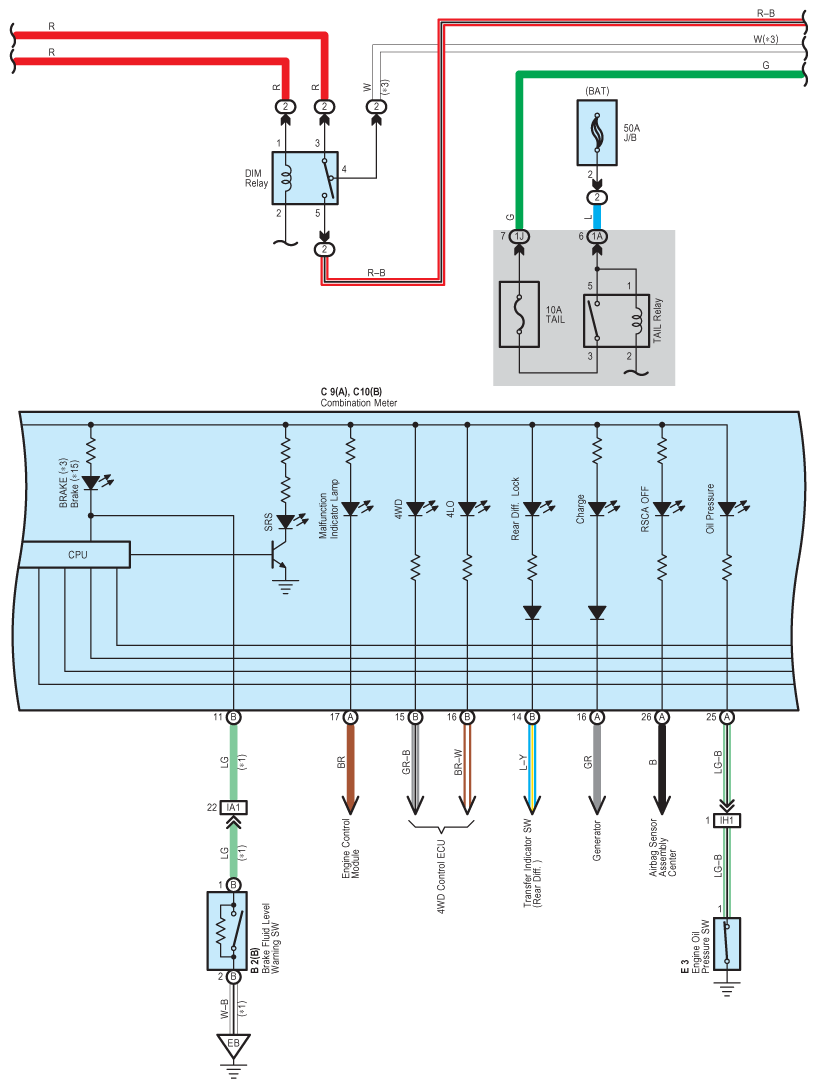

Fig 5: Combination Meter Wiring Diagram (5 Of 7)

G08847294

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

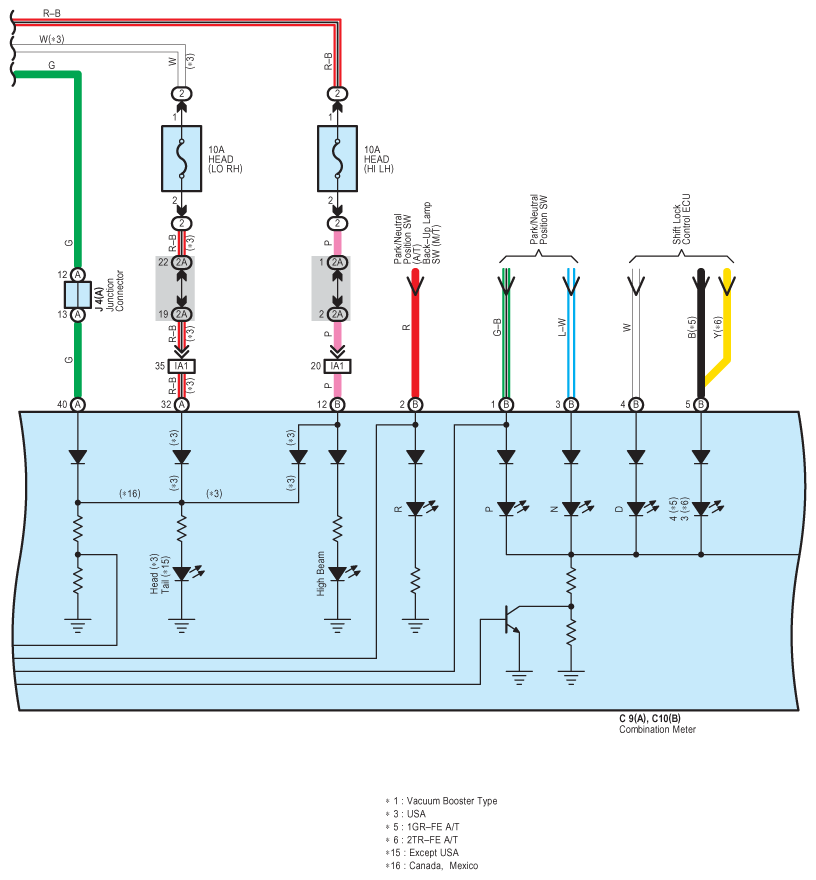

Fig 6: Combination Meter Wiring Diagram (6 Of 7)

G08847295

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

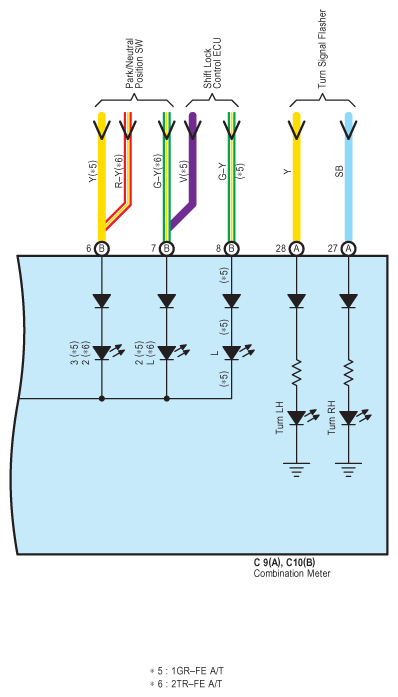

Fig 7: Combination Meter Wiring Diagram (7 Of 7)

G08847296

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
