Engine Immobilizer System (1GR-FE)
›
Notes
Engine Immobilizer System (1GR-FE): Notes

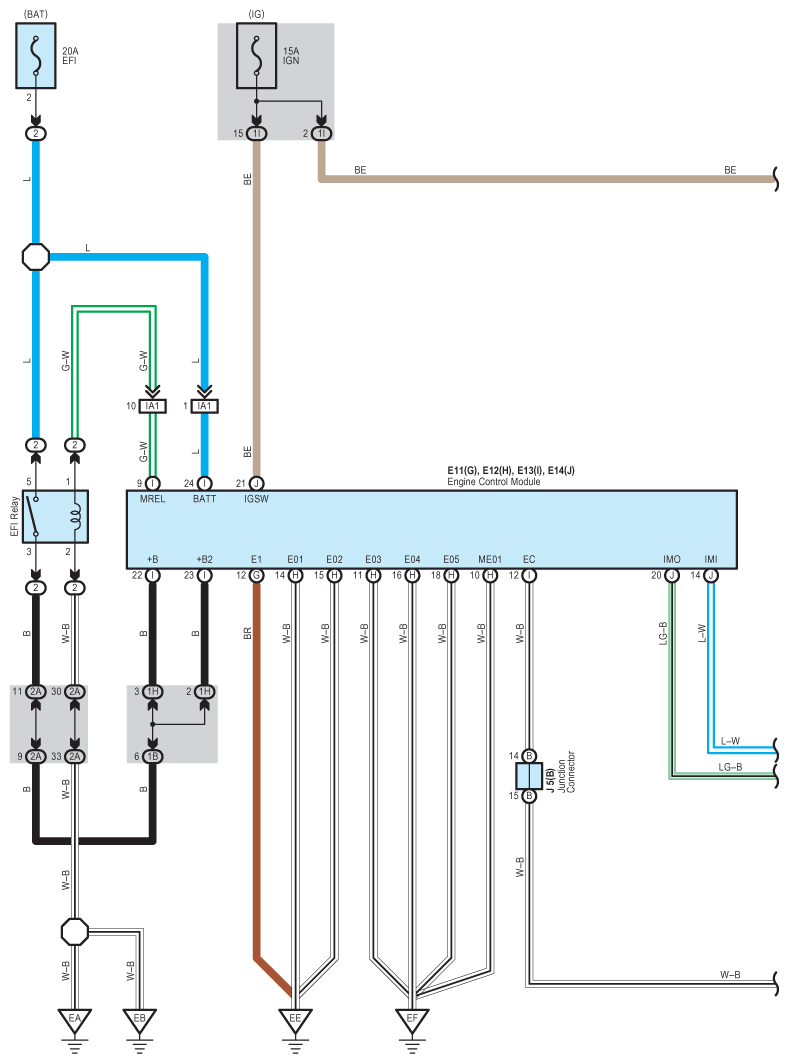

Fig 1: Engine Immobilizer System Wiring Diagram (1GR-FE; 1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

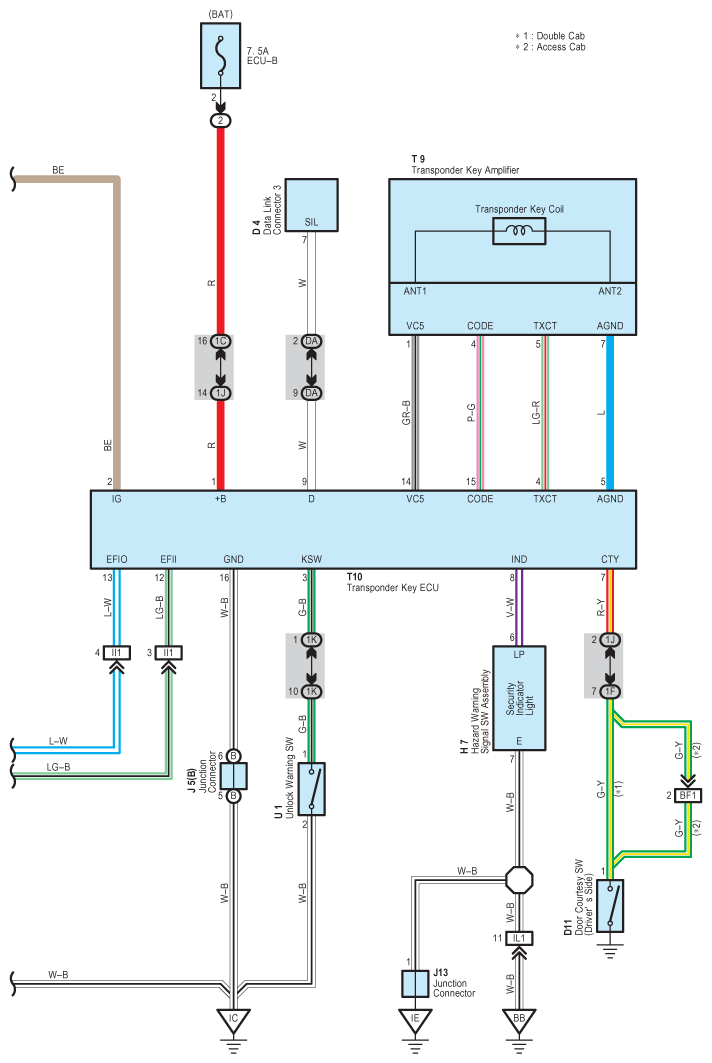

Fig 2: Engine Immobilizer System Wiring Diagram (1GR-FE; 2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
