Key Reminder: Notes

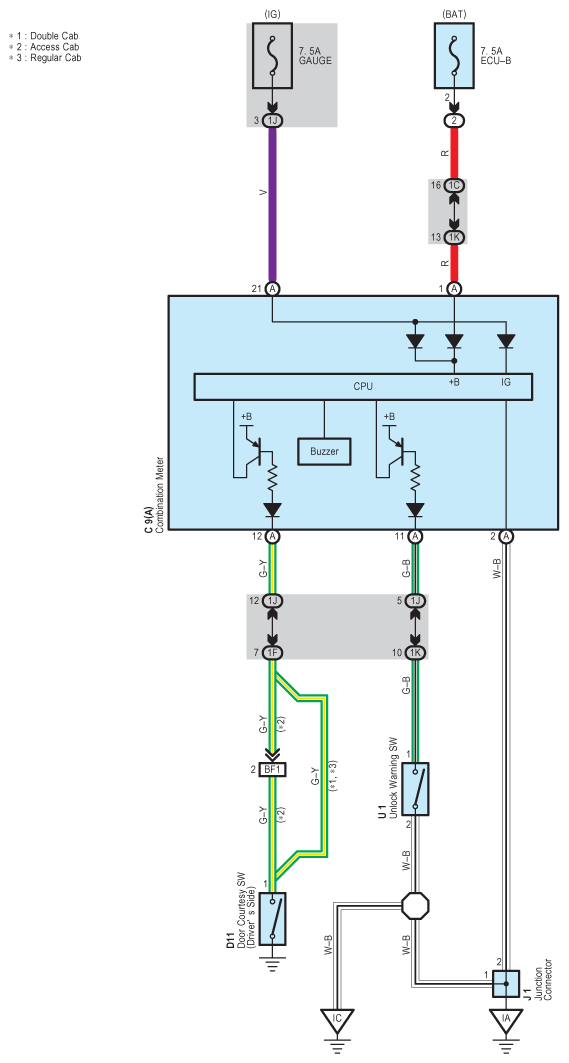

Fig 1: Key Reminder Wiring Diagram
G08847198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
