Air Conditioning: Notes — 2012 Toyota Tundra Base, 5.7L Eng VIN W Service Manual ~ FixVault

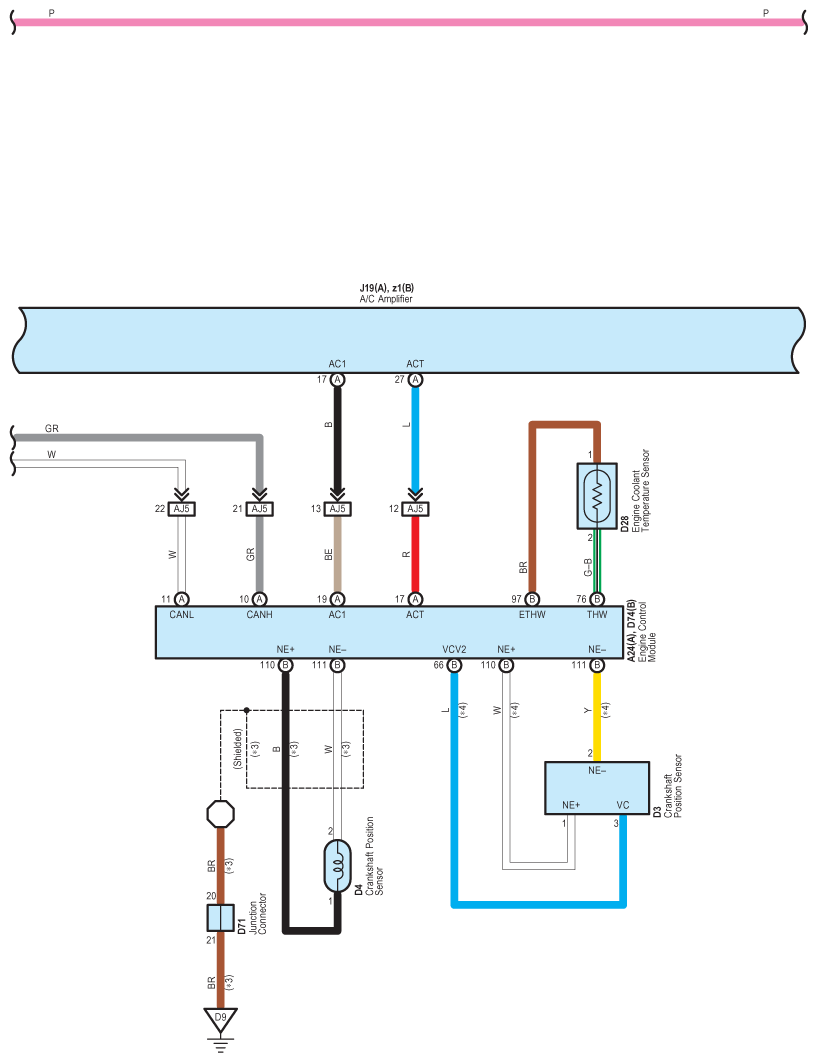

Fig 1: Air Conditioning System Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

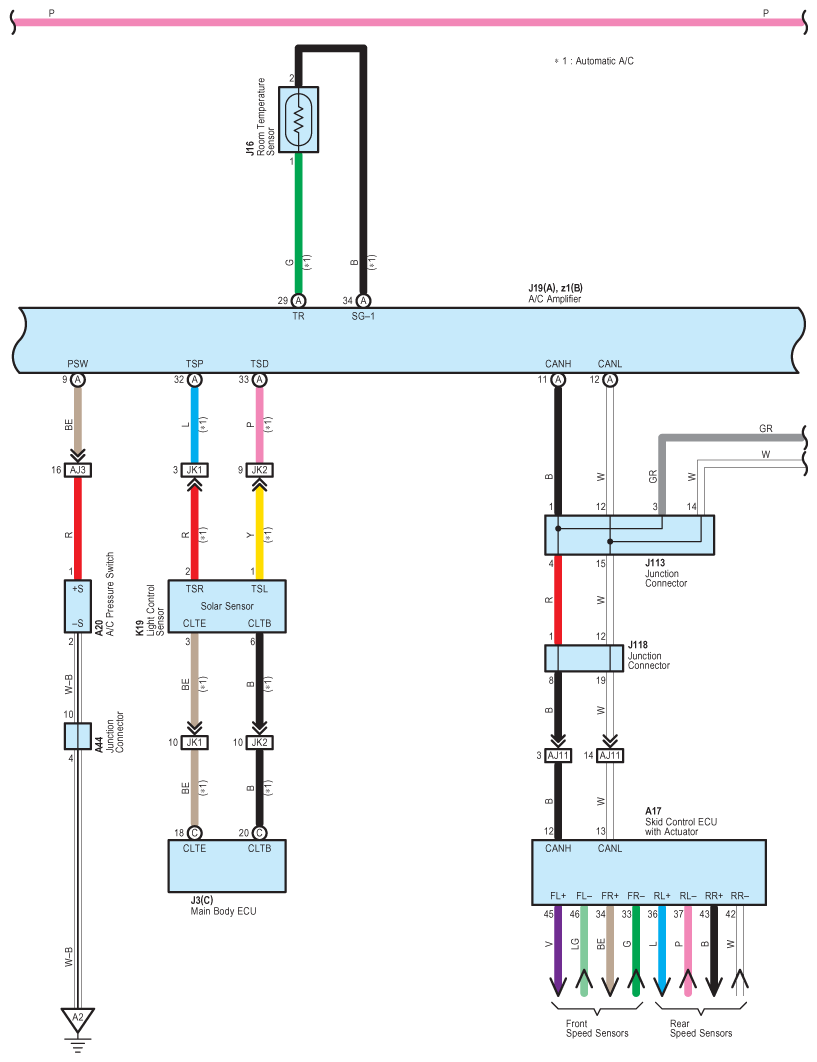

Fig 2: Air Conditioning System Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

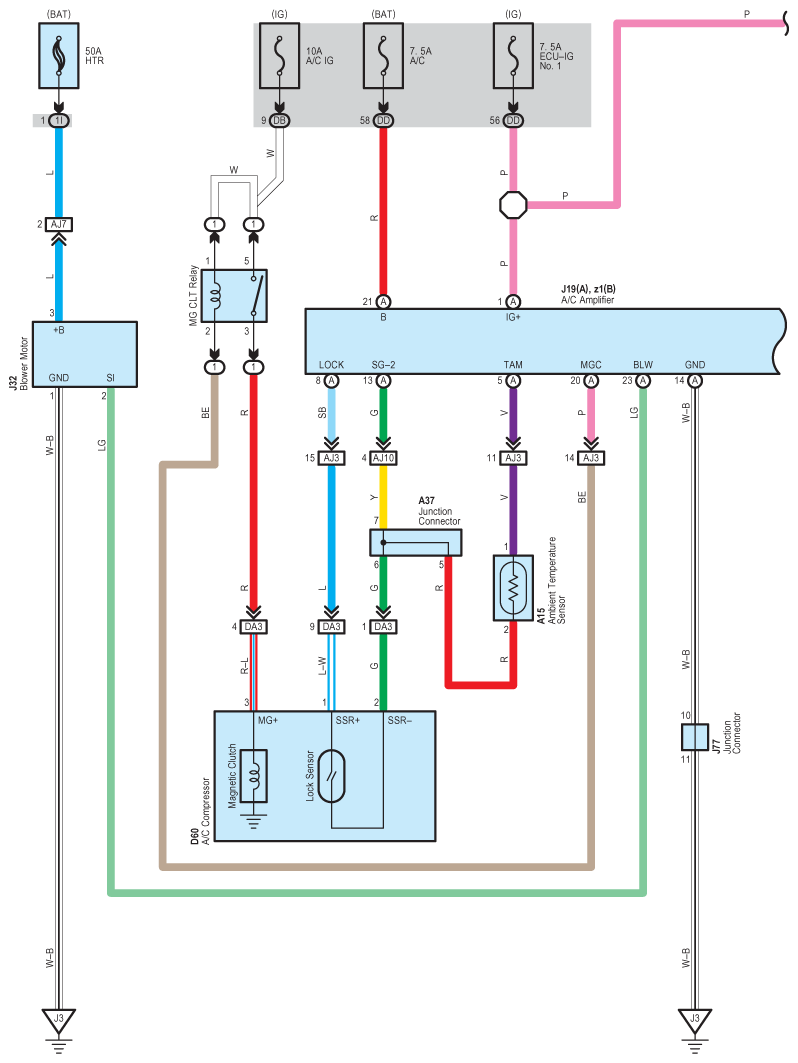

Fig 3: Air Conditioning System Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

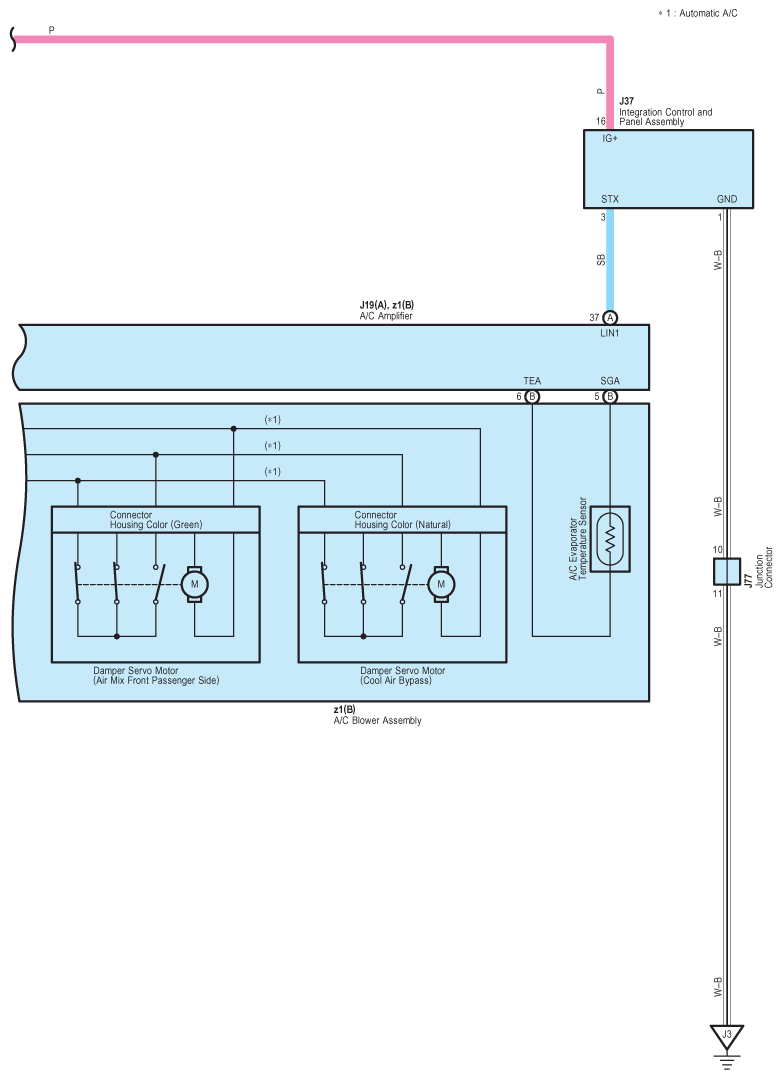

Fig 4: Air Conditioning System Wiring Diagram (4 Of 5)

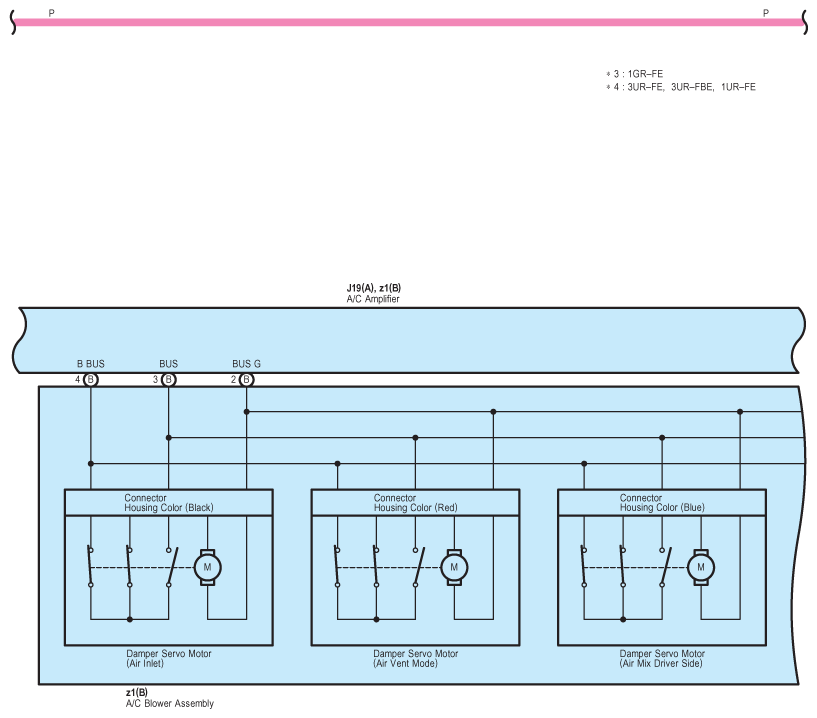

Fig 5: Air Conditioning System Wiring Diagram (5 Of 5)
