Cruise Control (1GR-FE): Notes

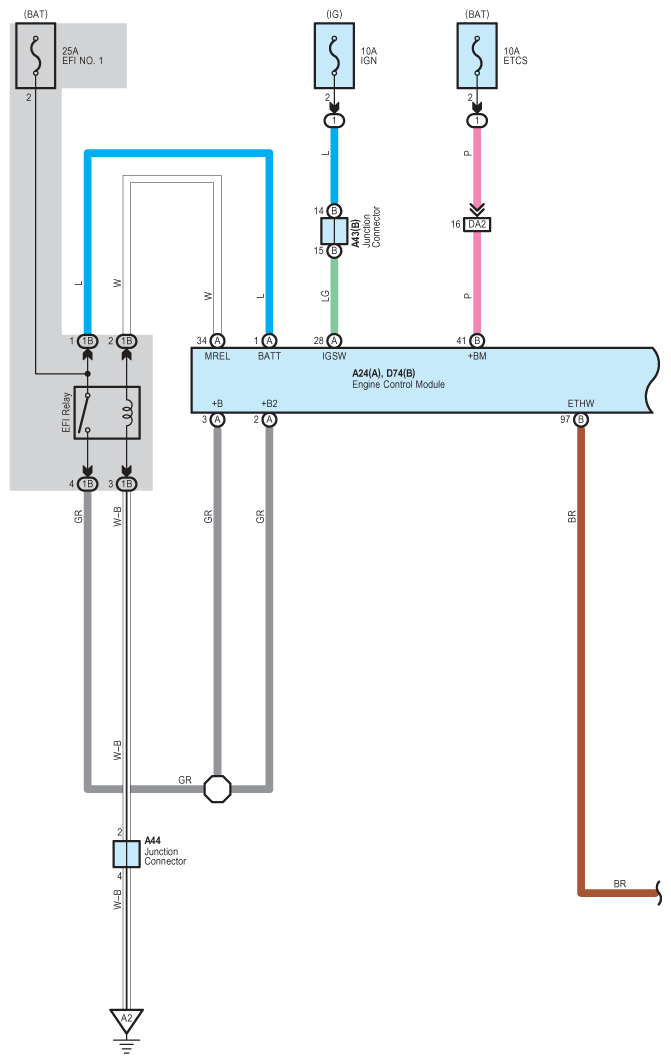

Fig 1: Cruise Control System Wiring Diagram (1GR-FE; 1 Of 7)
G08861997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

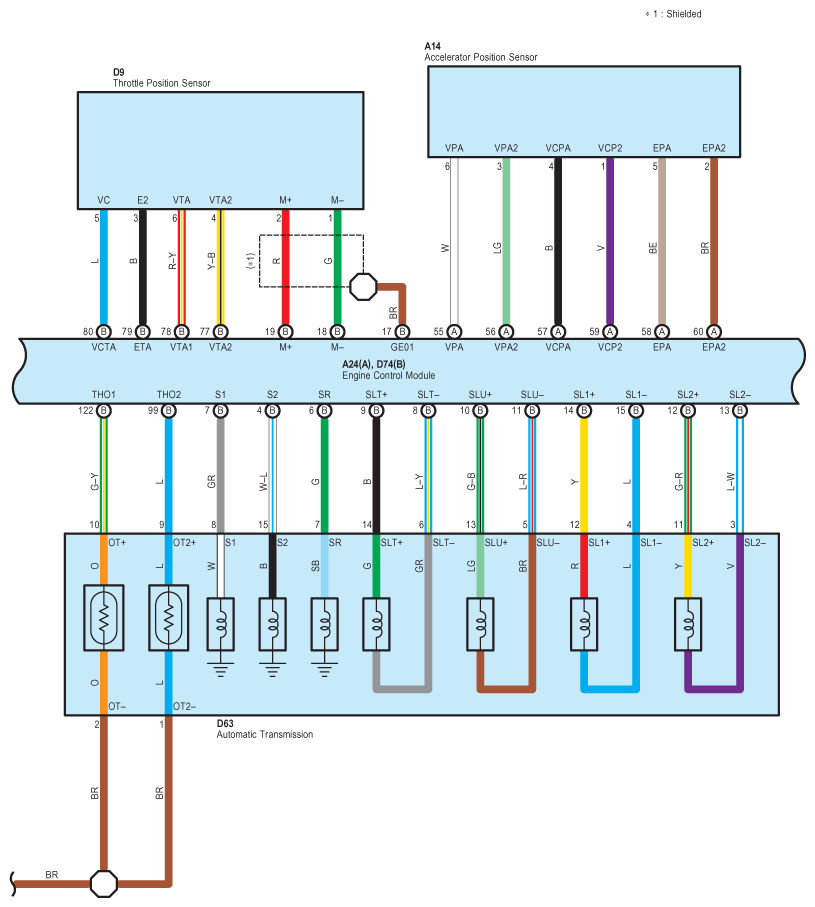

Fig 2: Cruise Control System Wiring Diagram (1GR-FE; 2 Of 7)
G08861998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

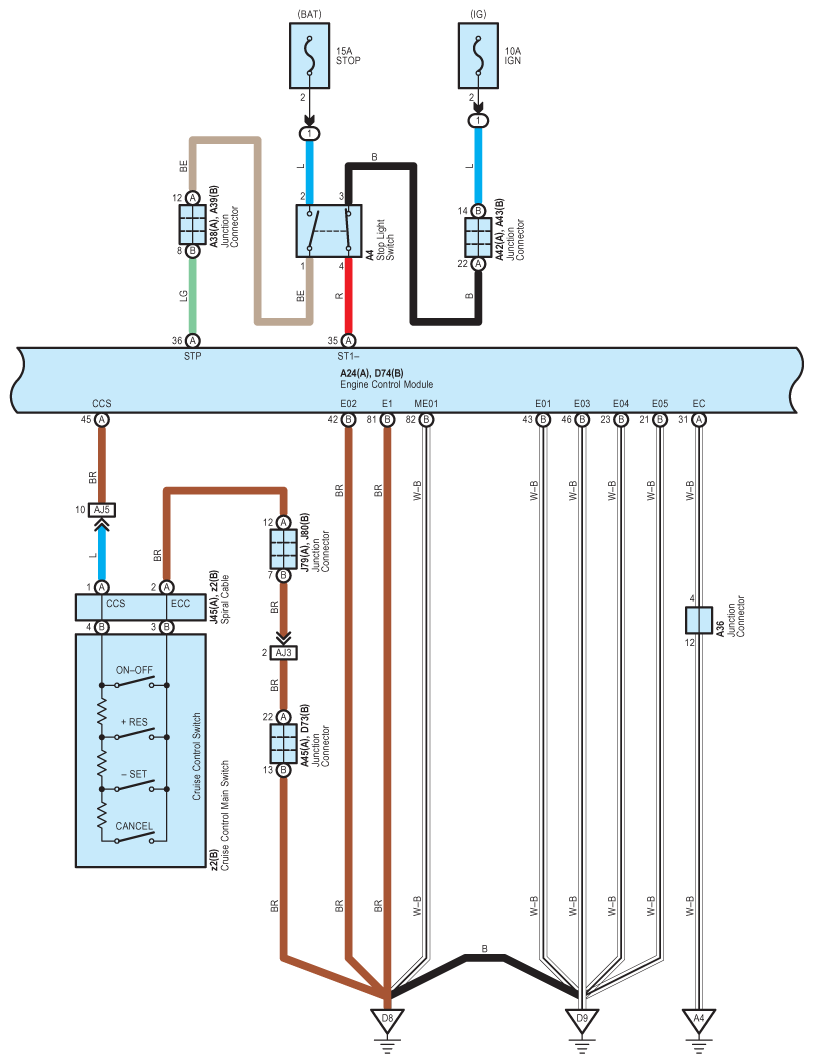

Fig 3: Cruise Control System Wiring Diagram (1GR-FE; 3 Of 7)
G08861999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

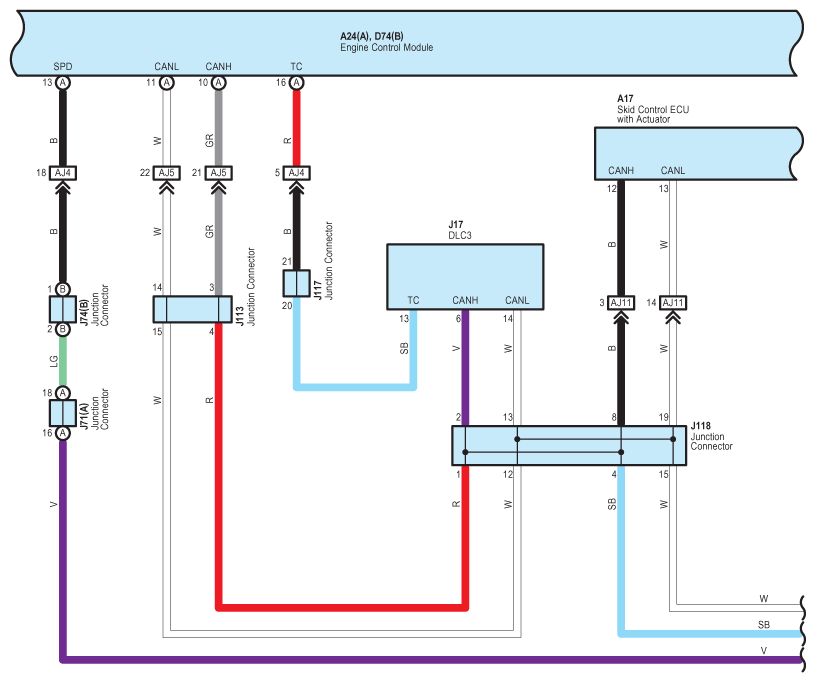

Fig 4: Cruise Control System Wiring Diagram (1GR-FE; 4 Of 7)
G08862000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

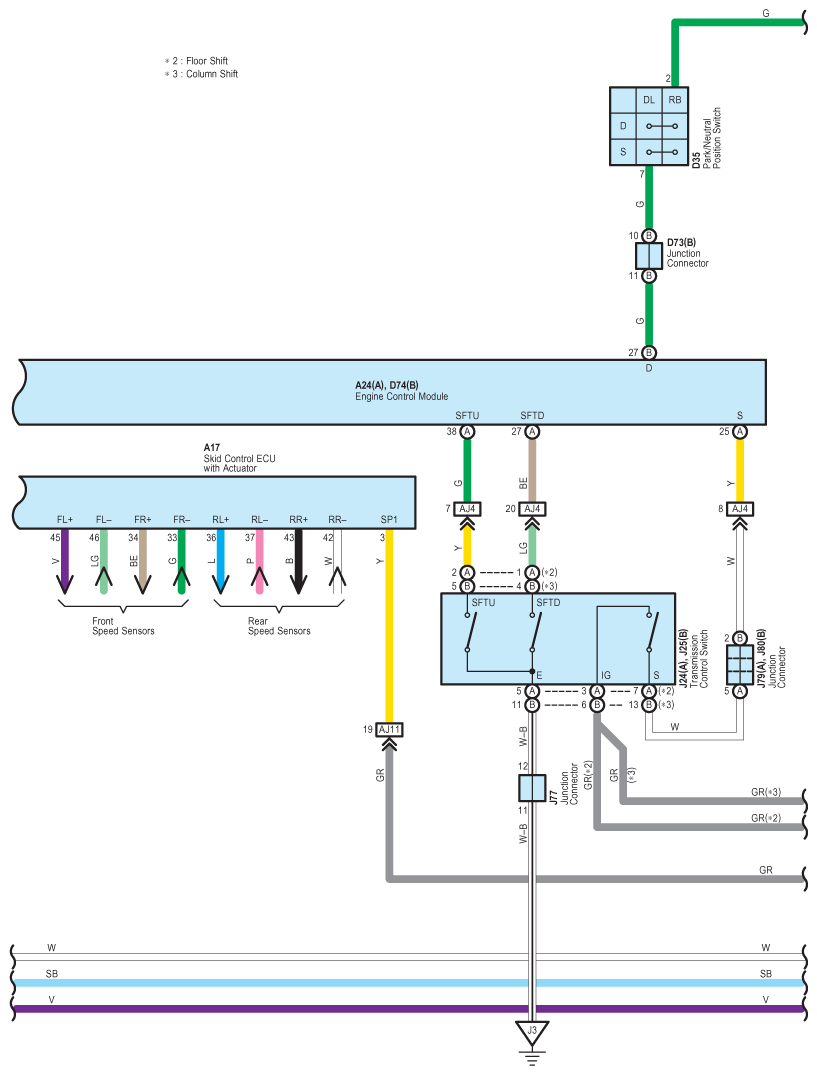

Fig 5: Cruise Control System Wiring Diagram (1GR-FE; 5 Of 7)
G08862001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

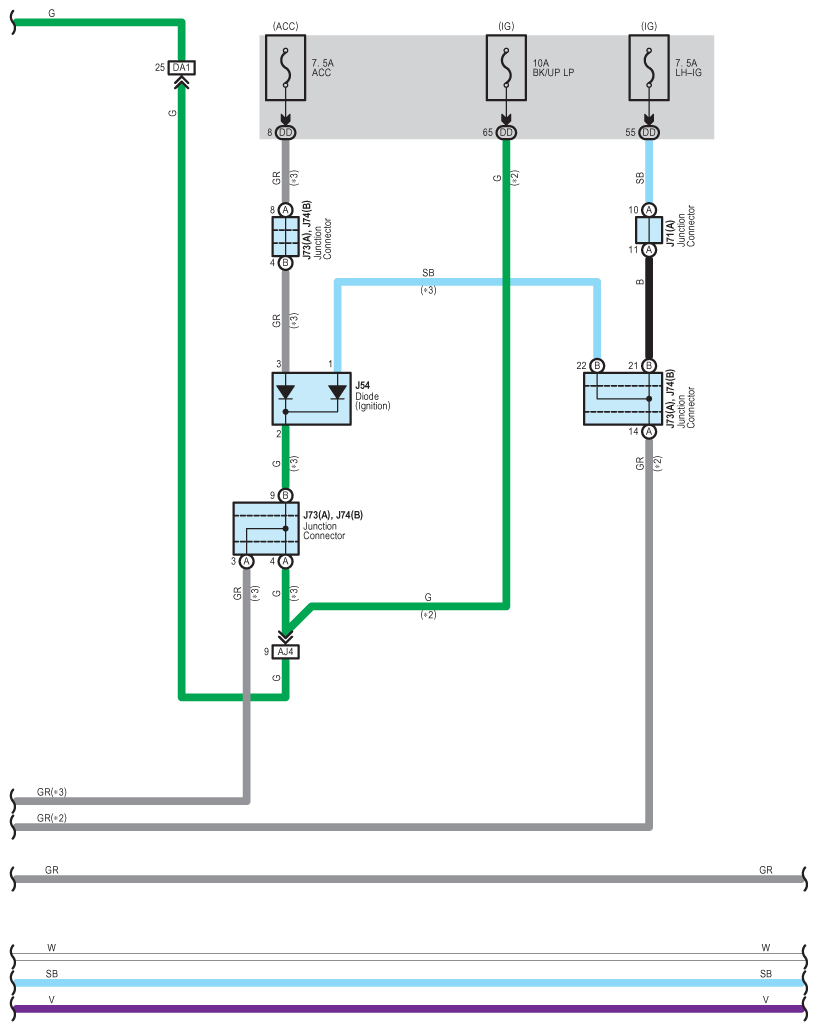

Fig 6: Cruise Control System Wiring Diagram (1GR-FE; 6 Of 7)
G08862002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

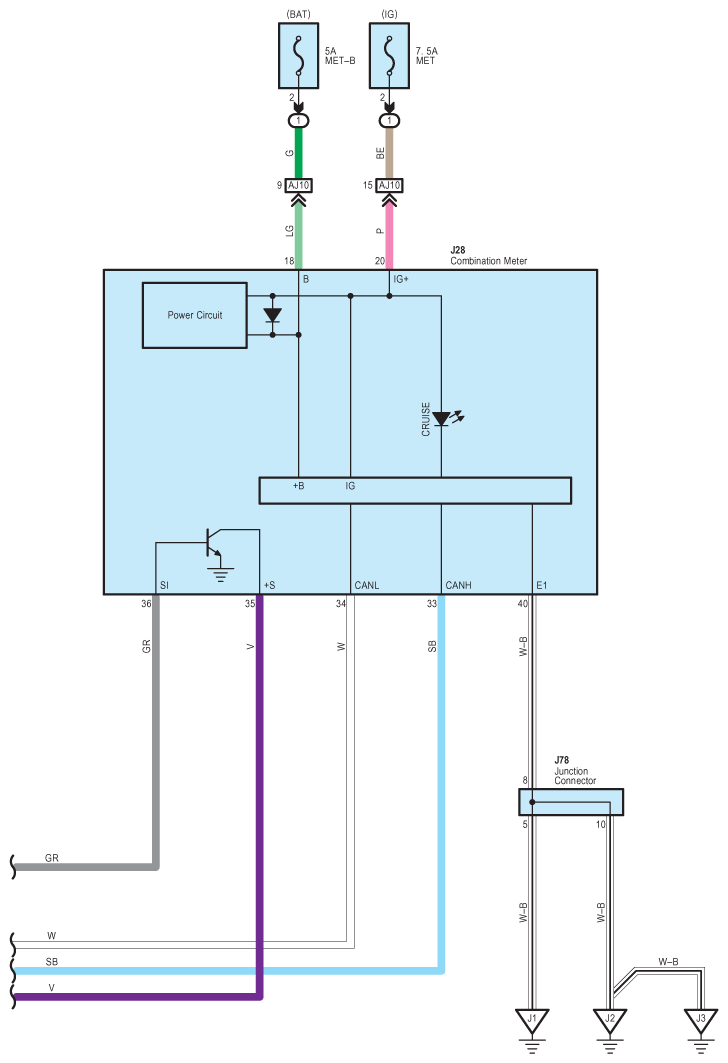

Fig 7: Cruise Control System Wiring Diagram (1GR-FE; 7 Of 7)
G08862003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
