Engine Control (1GR-FE): Notes

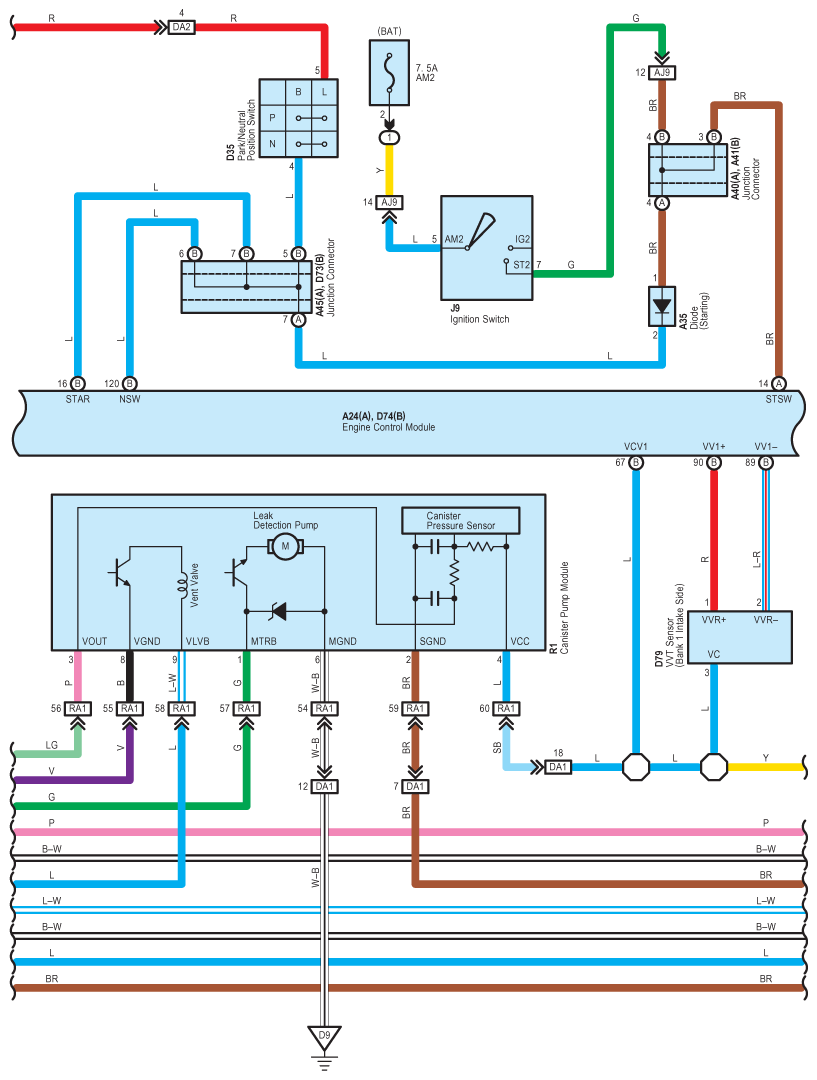

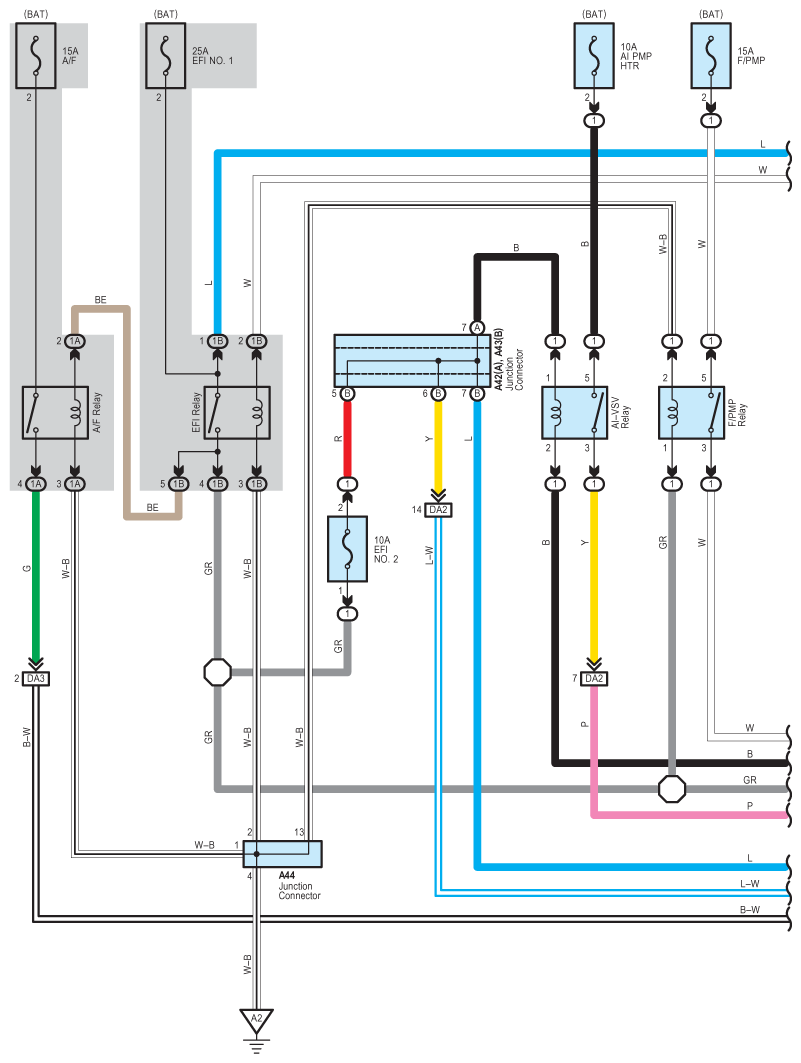

Fig 1: Engine Control System Wiring Diagram (1GR-FE; 1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

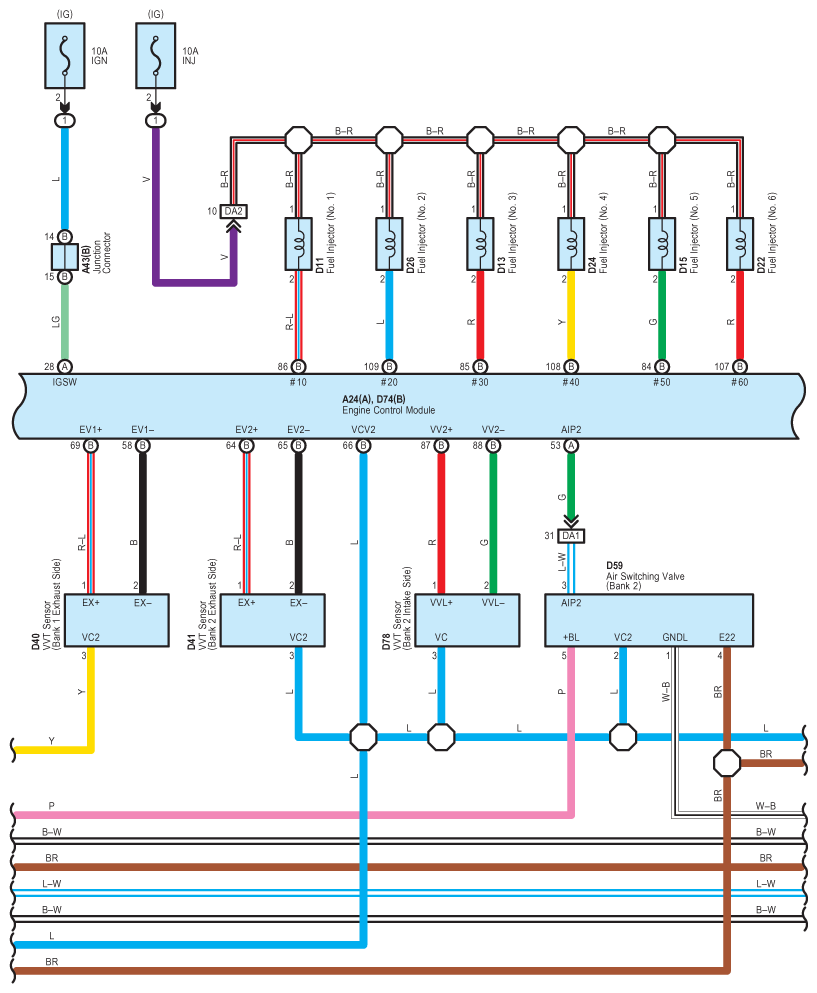

Fig 2: Engine Control System Wiring Diagram (1GR-FE; 2 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

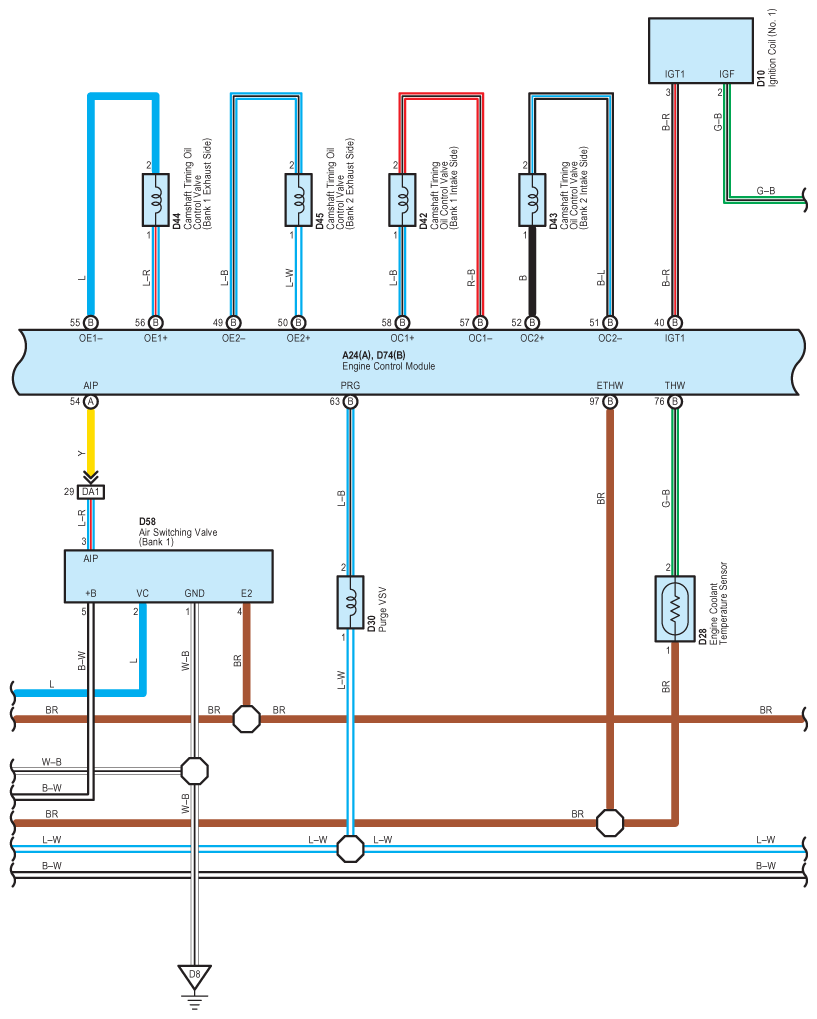

Fig 3: Engine Control System Wiring Diagram (1GR-FE; 3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

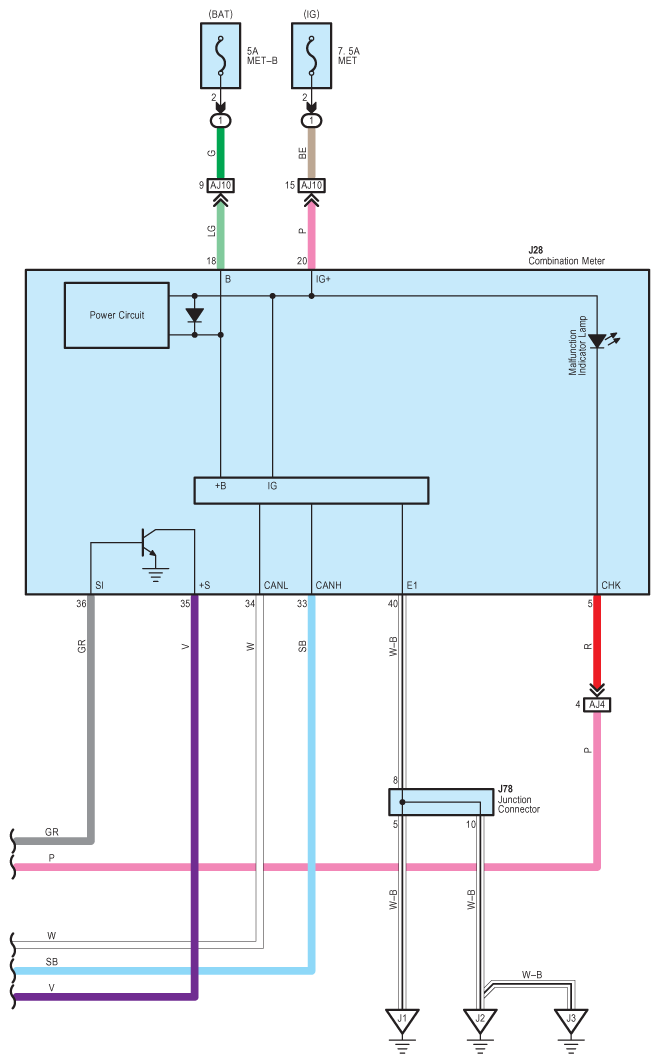

Fig 4: Engine Control System Wiring Diagram (1GR-FE; 4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

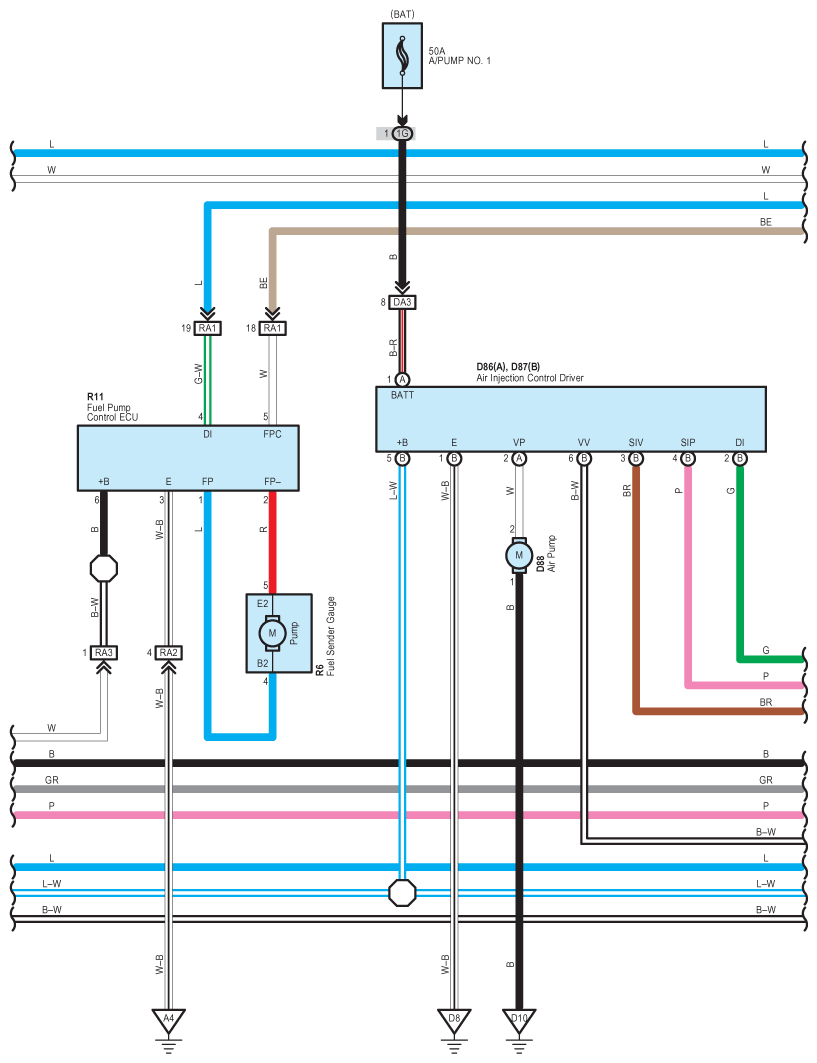

Fig 5: Engine Control System Wiring Diagram (1GR-FE; 5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

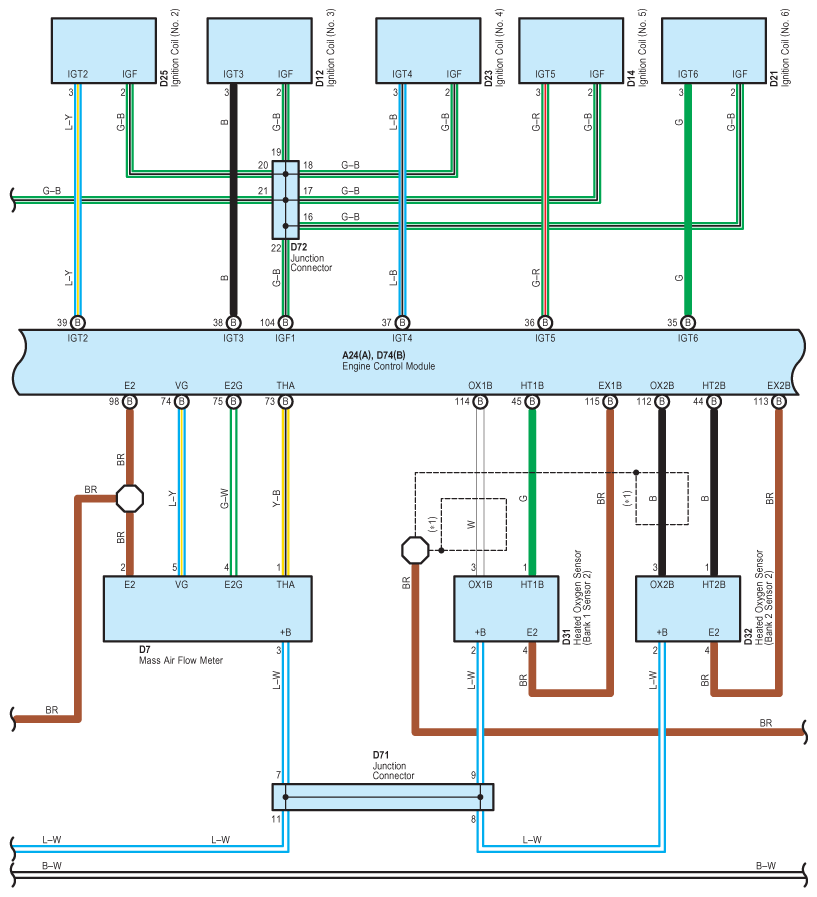

Fig 6: Engine Control System Wiring Diagram (1GR-FE; 6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

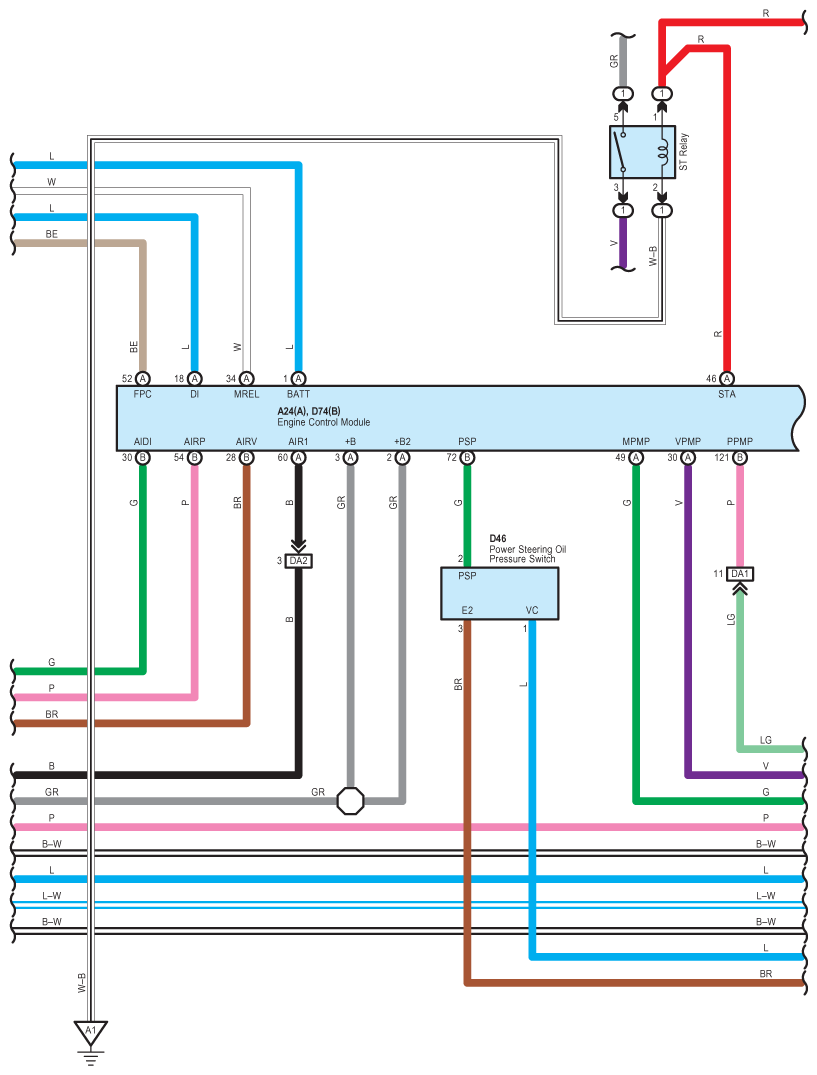

Fig 7: Engine Control System Wiring Diagram (1GR-FE; 7 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

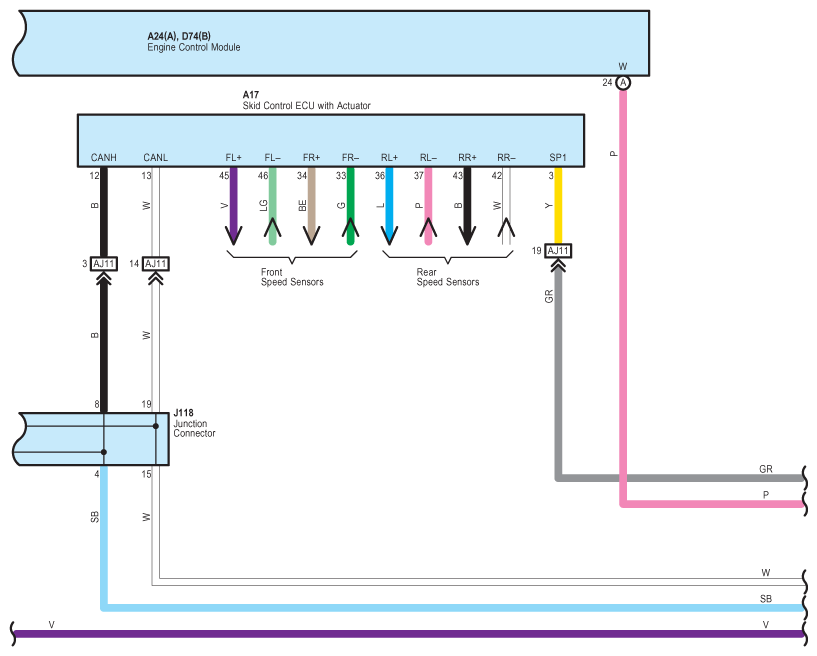

Fig 8: Engine Control System Wiring Diagram (1GR-FE; 8 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

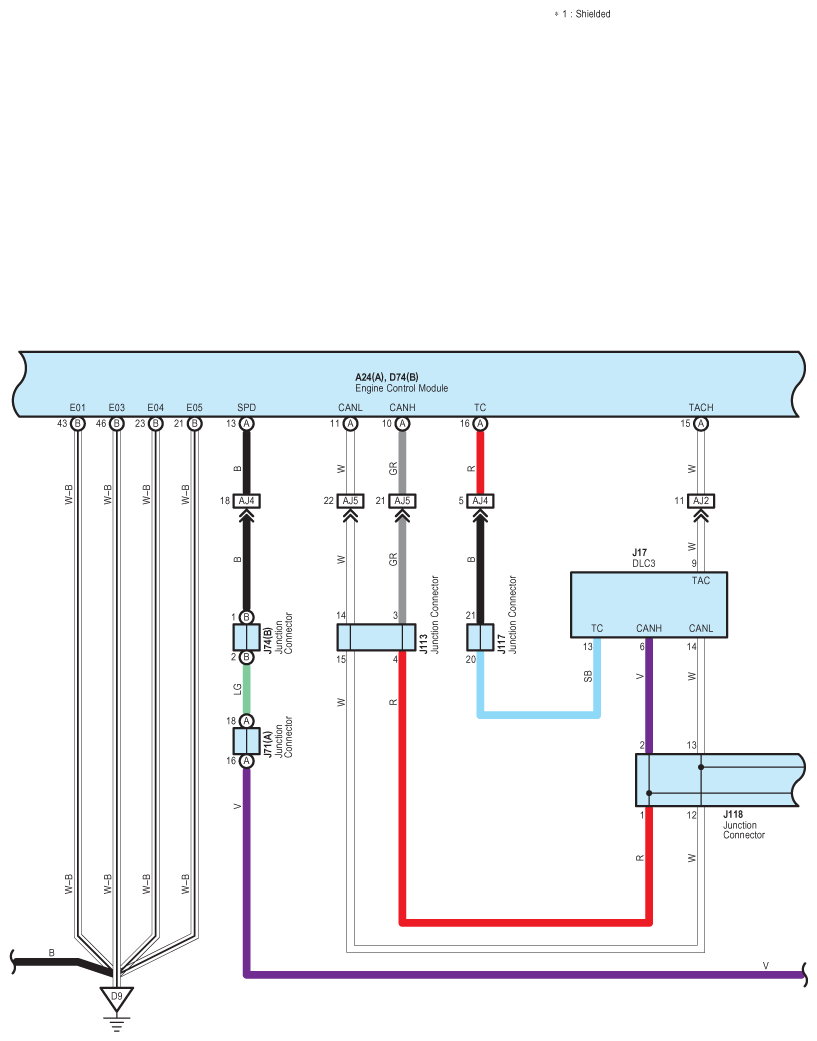

Fig 9: Engine Control System Wiring Diagram (1GR-FE; 9 Of 12)

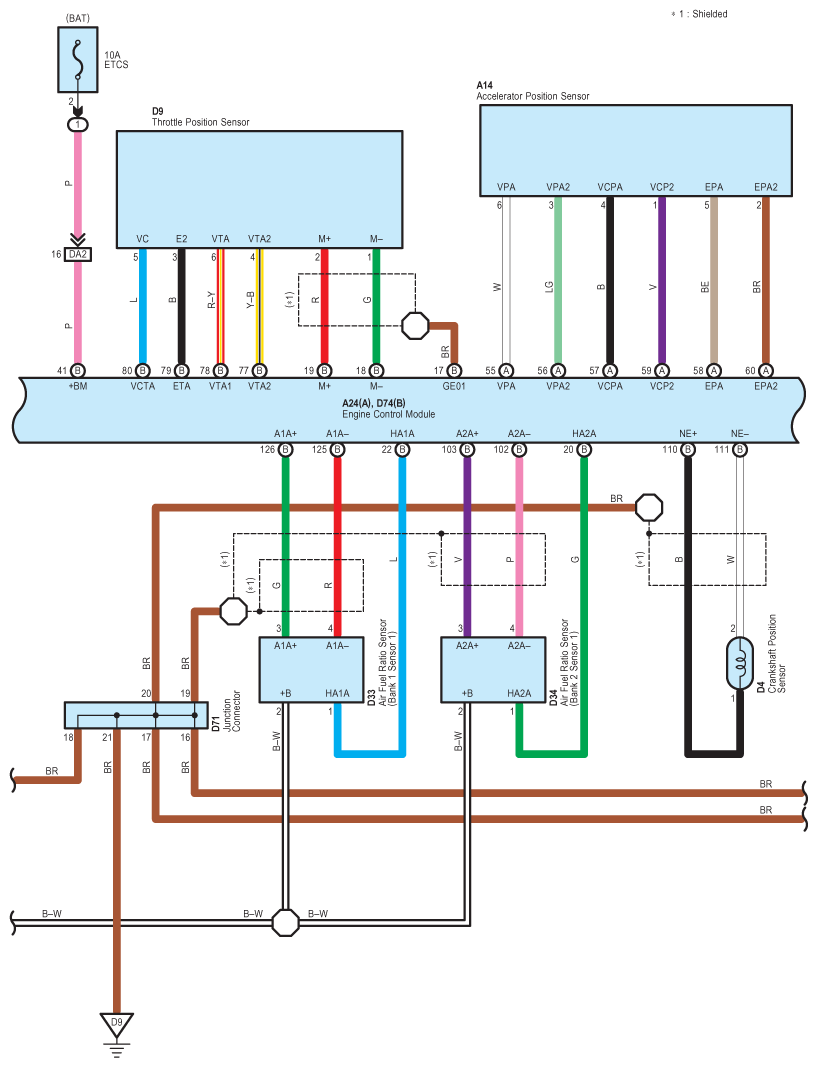

Fig 10: Engine Control System Wiring Diagram (1GR-FE; 10 Of 12)

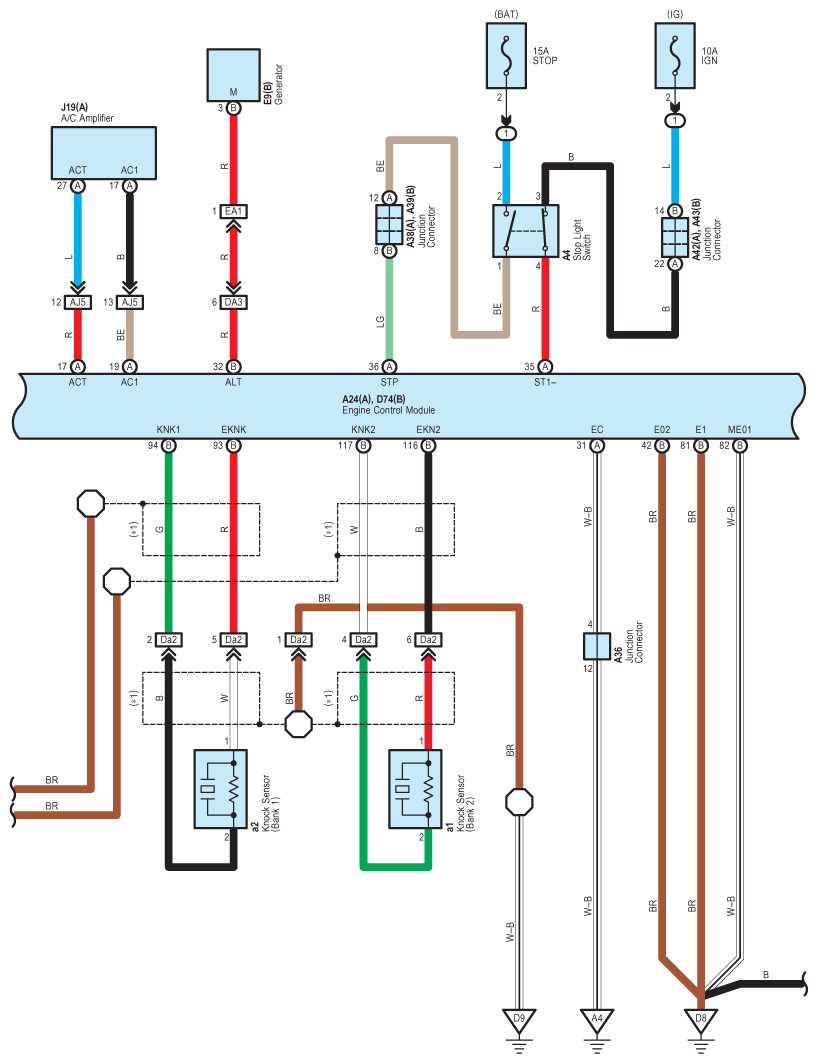

Fig 11: Engine Control System Wiring Diagram (1GR-FE; 11 Of 12)

Fig 12: Engine Control System Wiring Diagram (1GR-FE; 12 Of 12)
