Engine Control (1UR-FE): Notes

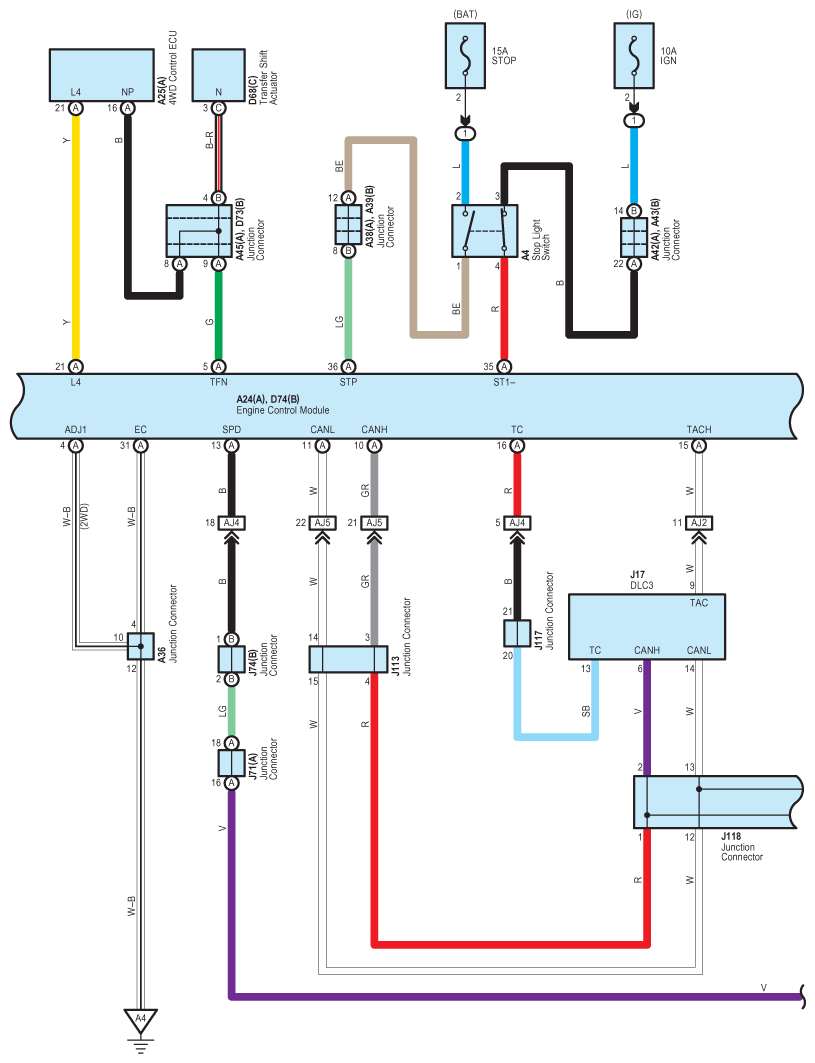

Fig 1: Engine Control System Wiring Diagram (1UR-FE; 1 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

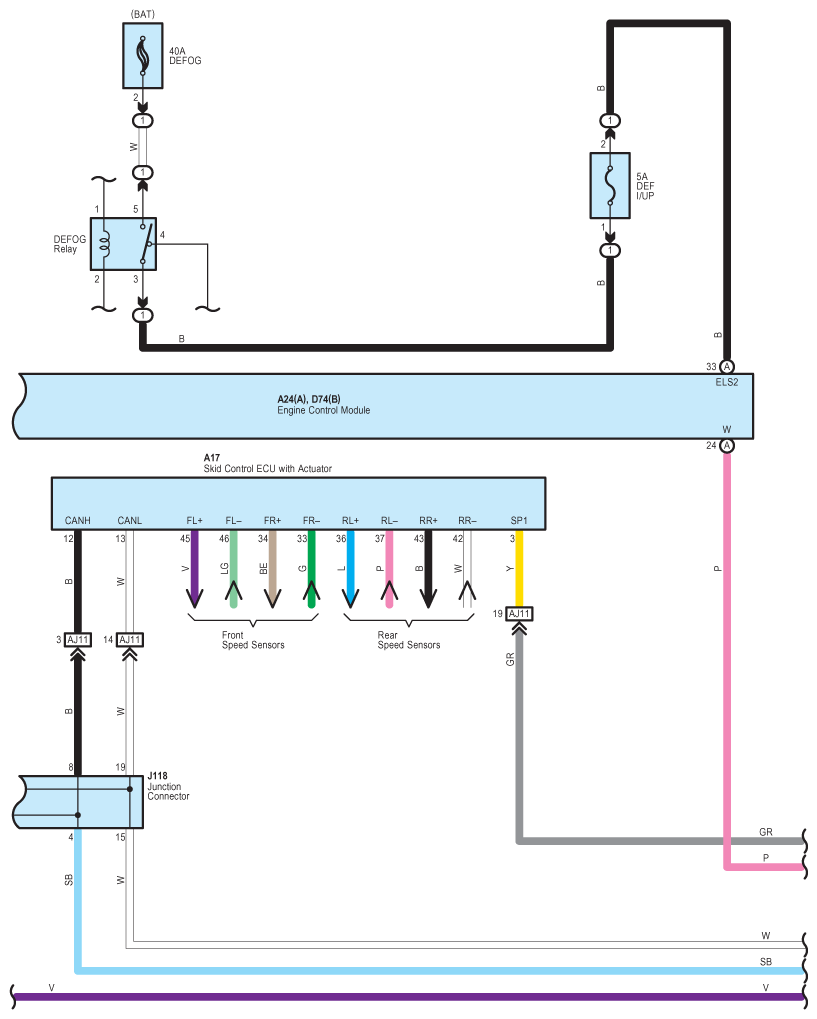

Fig 2: Engine Control System Wiring Diagram (1UR-FE; 2 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

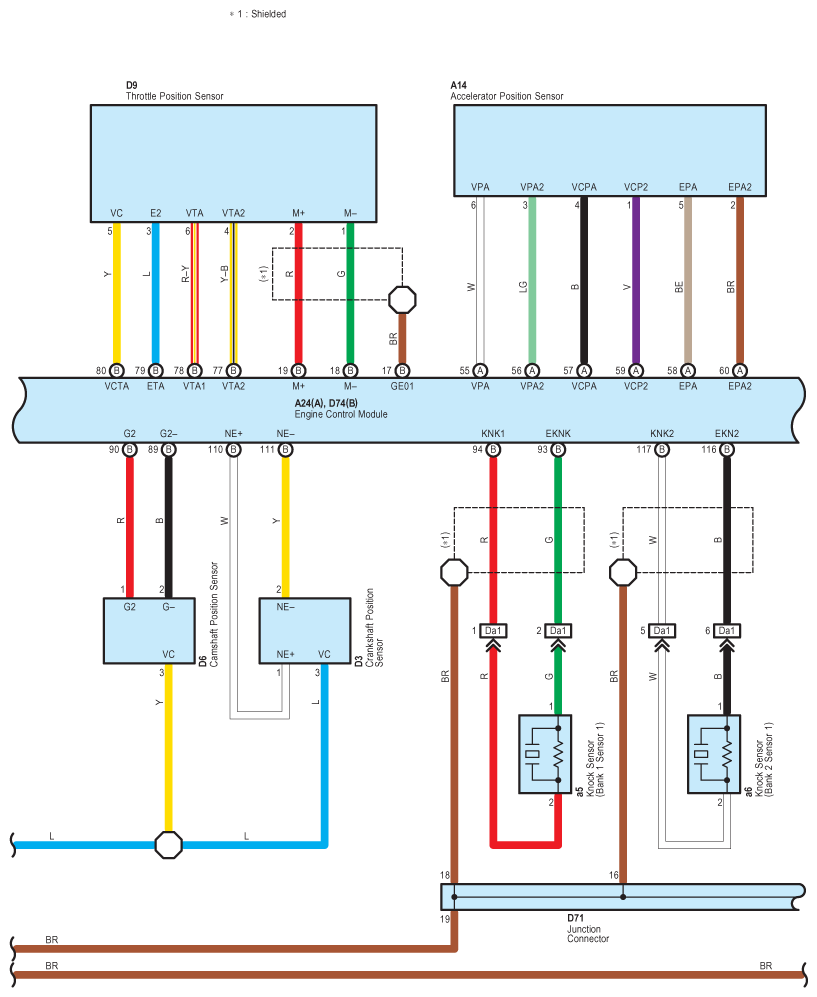

Fig 3: Engine Control System Wiring Diagram (1UR-FE; 3 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

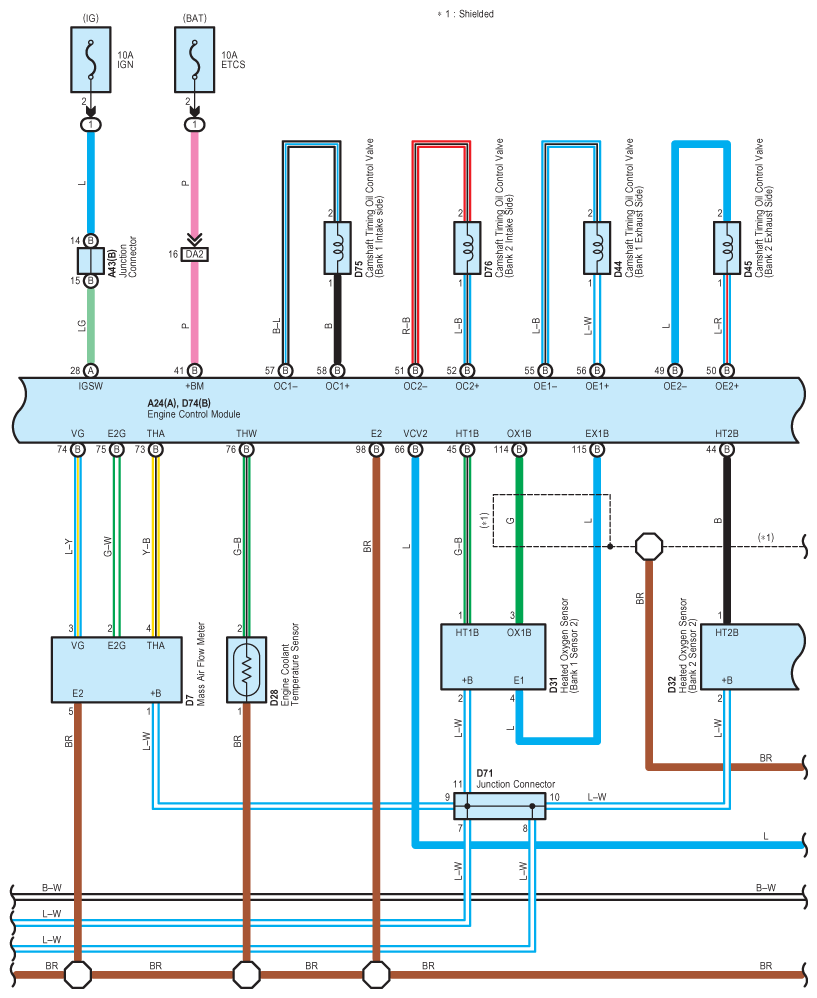

Fig 4: Engine Control System Wiring Diagram (1UR-FE; 4 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

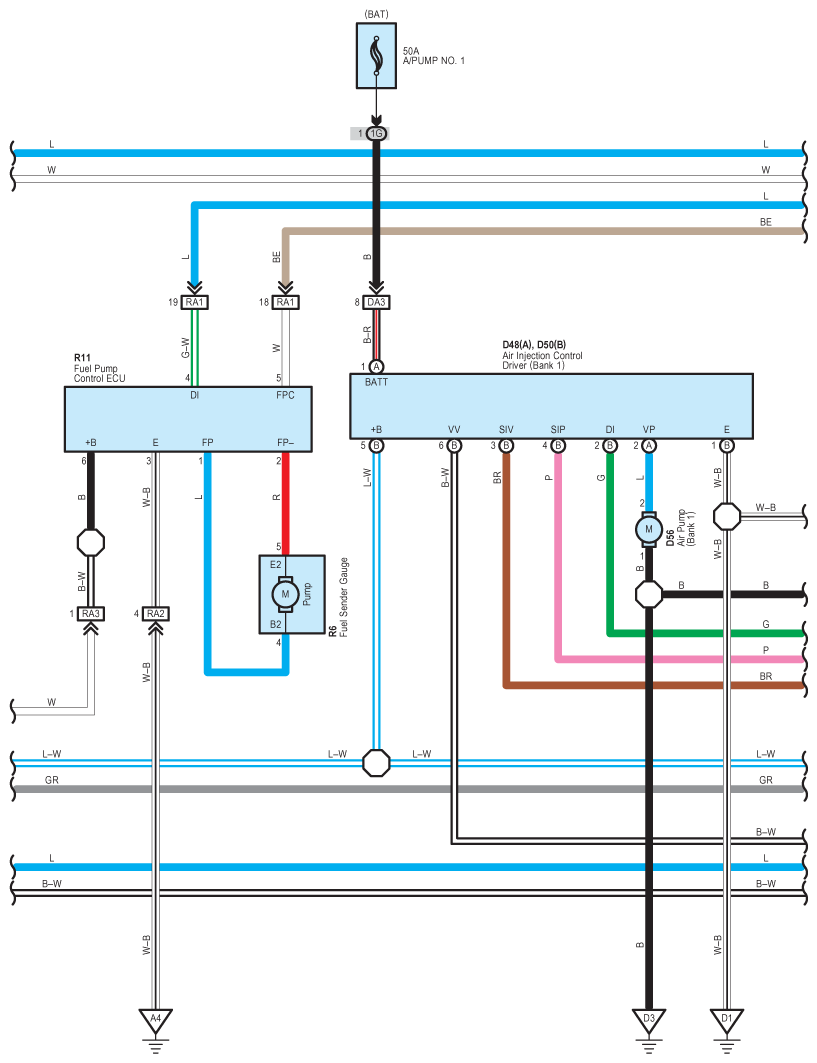

Fig 5: Engine Control System Wiring Diagram (1UR-FE; 5 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

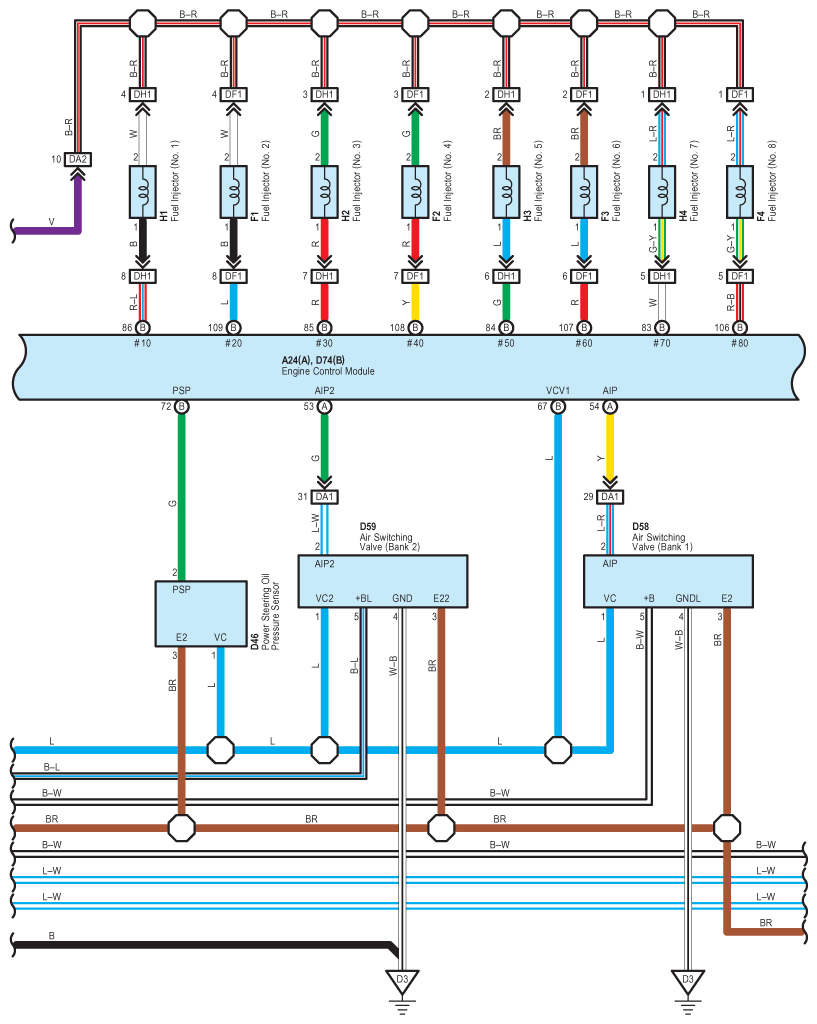

Fig 6: Engine Control System Wiring Diagram (1UR-FE; 6 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

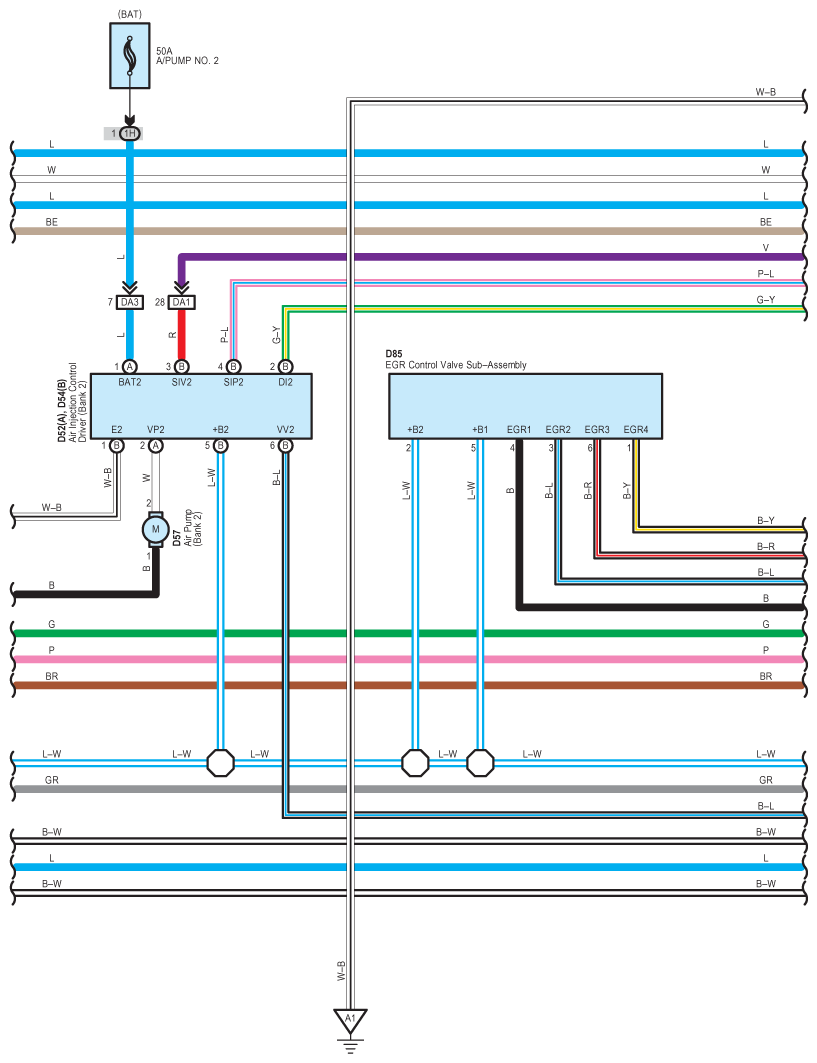

Fig 7: Engine Control System Wiring Diagram (1UR-FE; 7 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

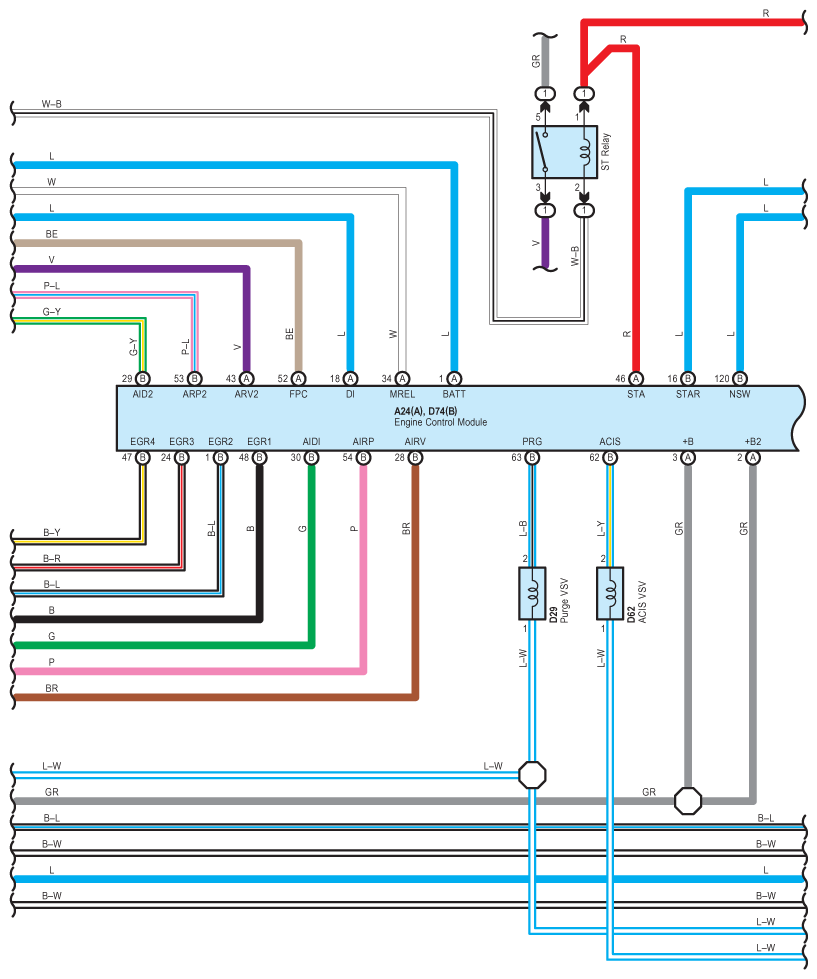

Fig 8: Engine Control System Wiring Diagram (1UR-FE; 8 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

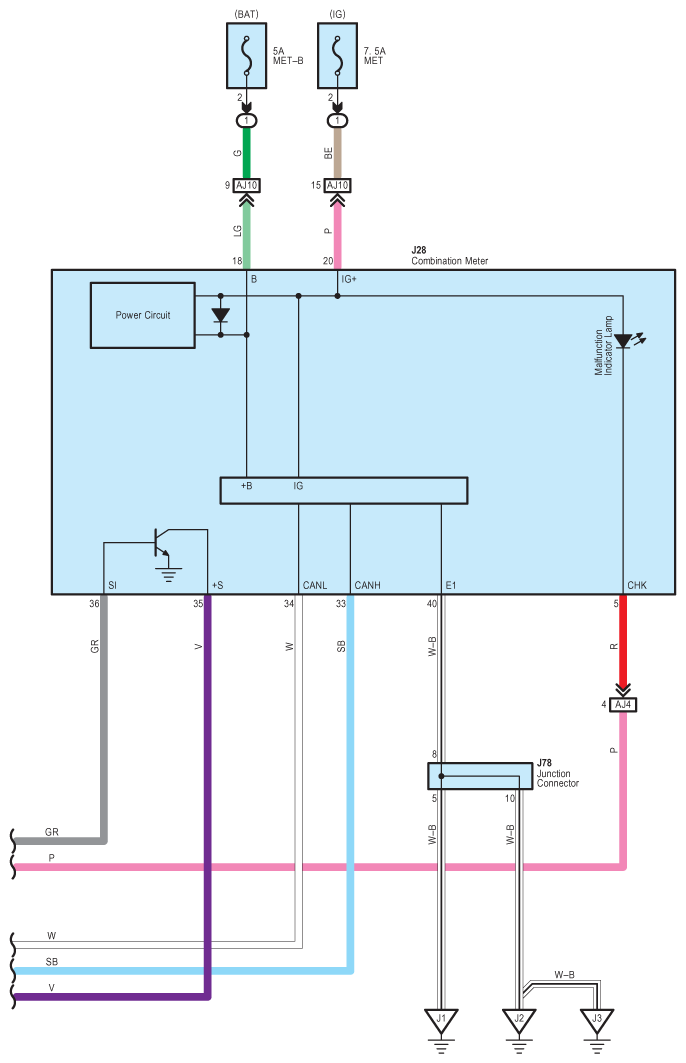

Fig 9: Engine Control System Wiring Diagram (1UR-FE; 9 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

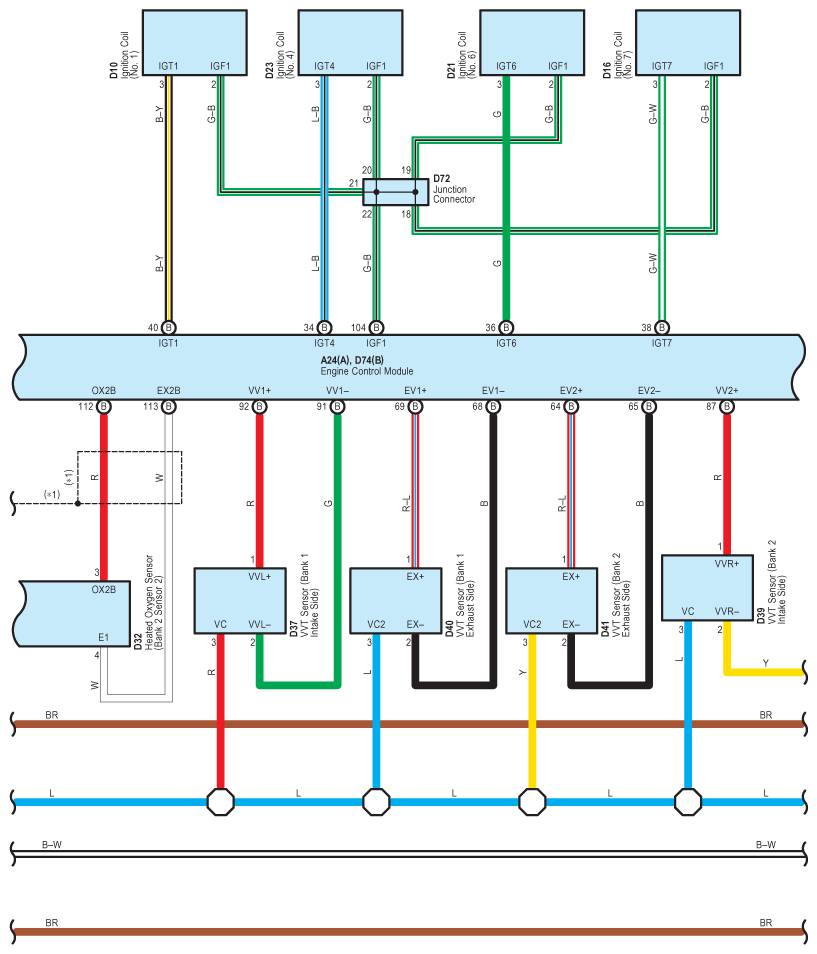

Fig 10: Engine Control System Wiring Diagram (1UR-FE; 10 Of 14)

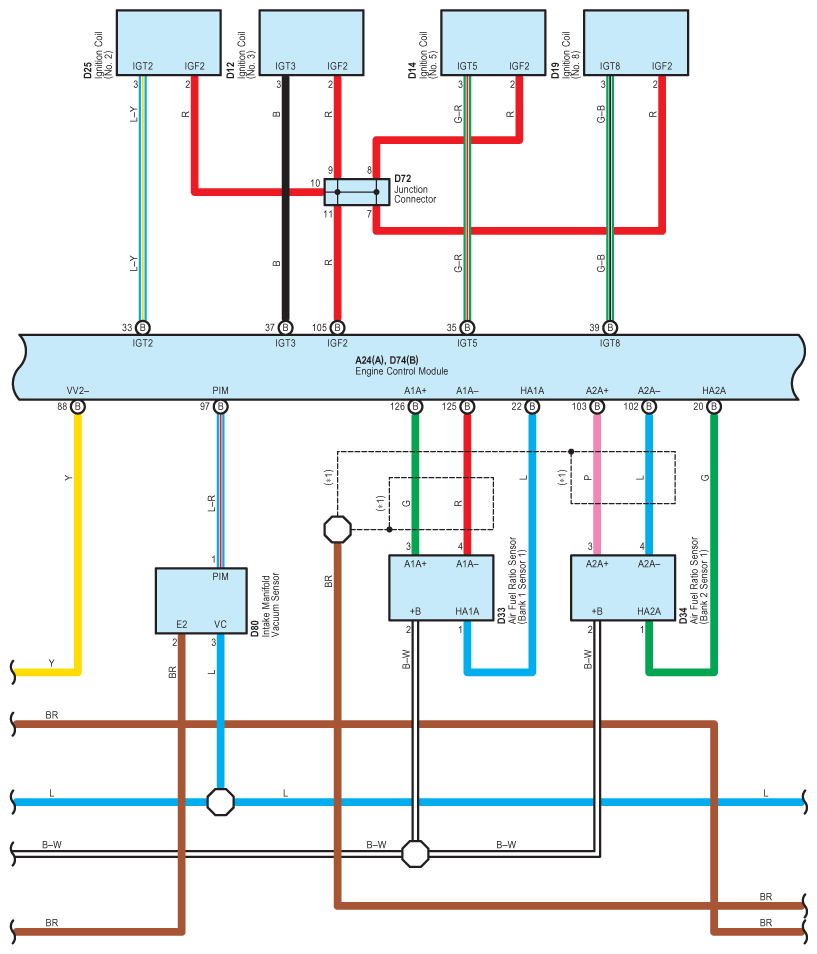

Fig 11: Engine Control System Wiring Diagram (1UR-FE; 11 Of 14)

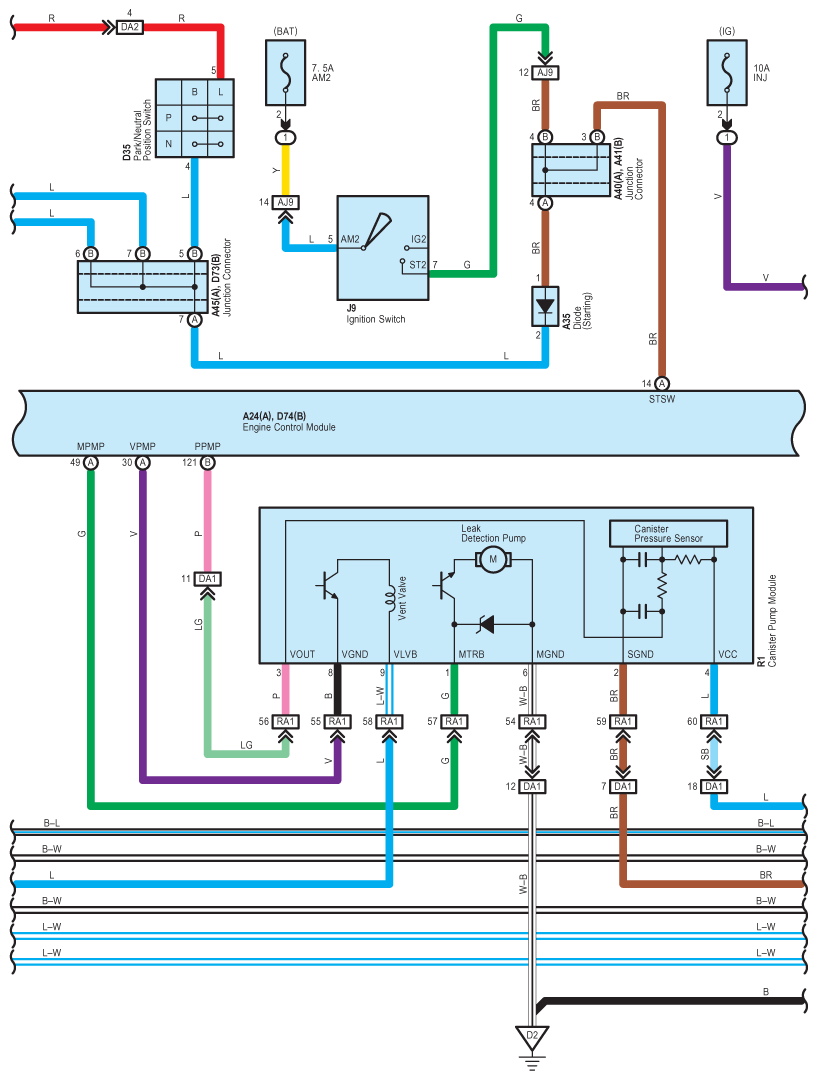

Fig 12: Engine Control System Wiring Diagram (1UR-FE; 12 Of 14)

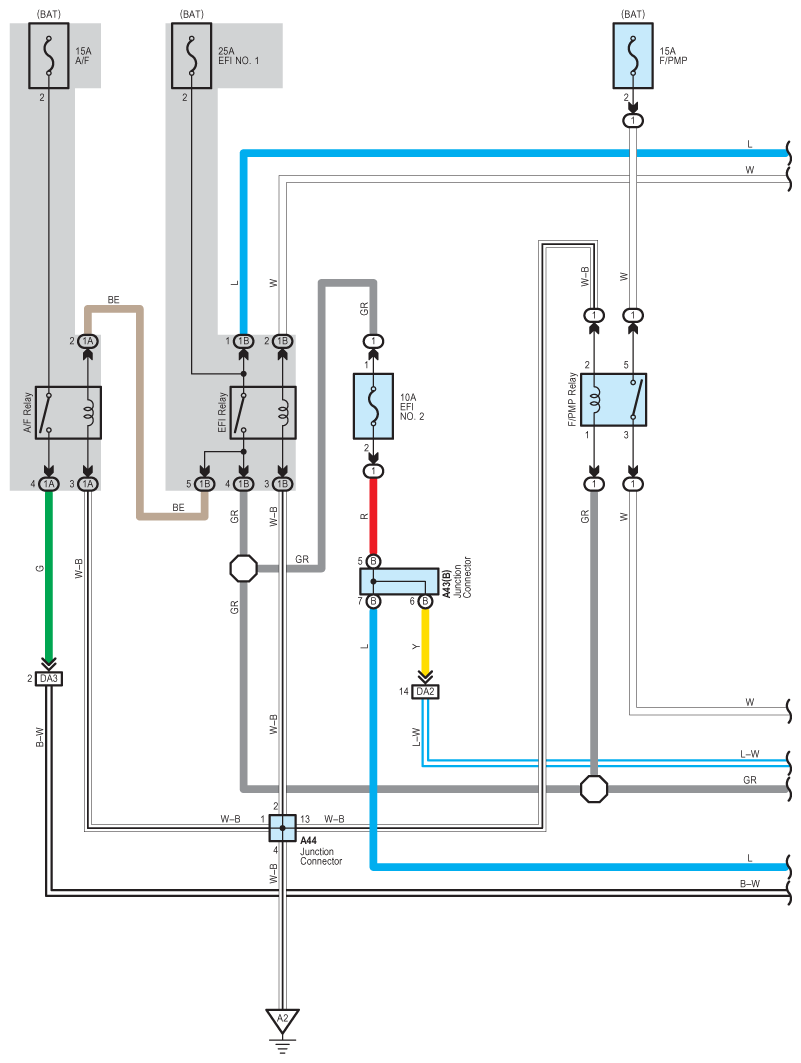

Fig 13: Engine Control System Wiring Diagram (1UR-FE; 13 Of 14)

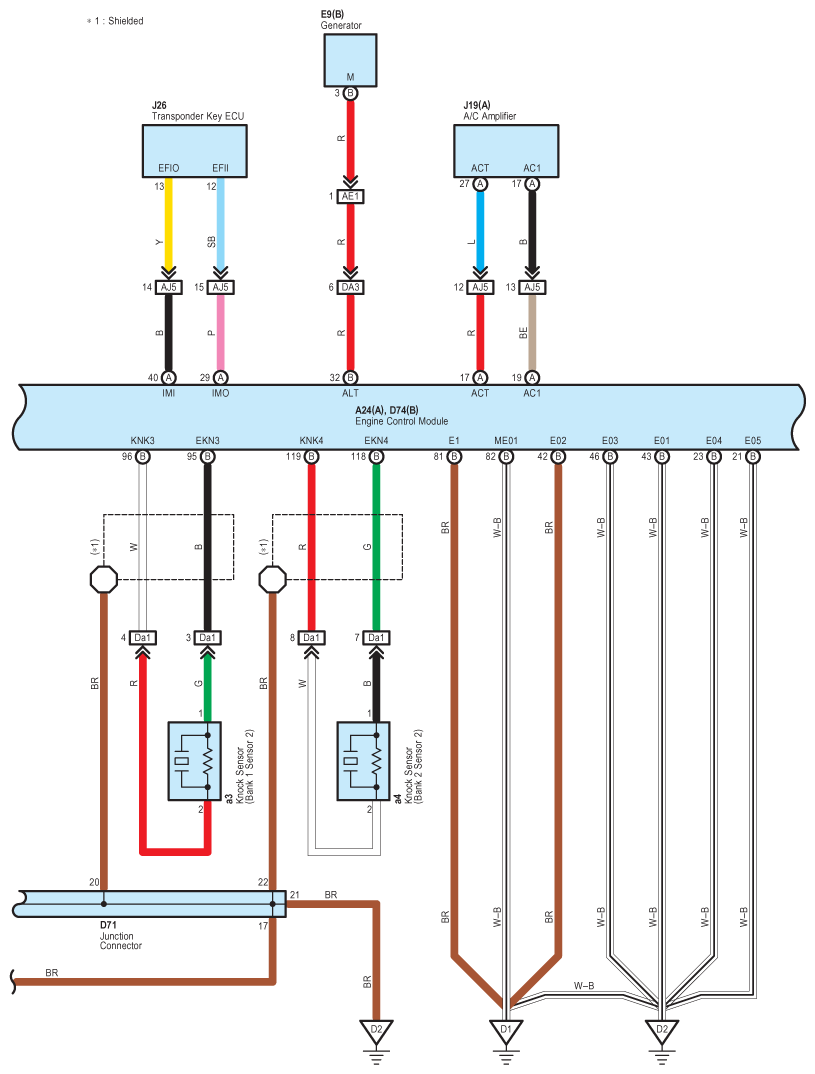

Fig 14: Engine Control System Wiring Diagram (1UR-FE; 14 Of 14)
