Multiplex Communication System (CAN): Notes

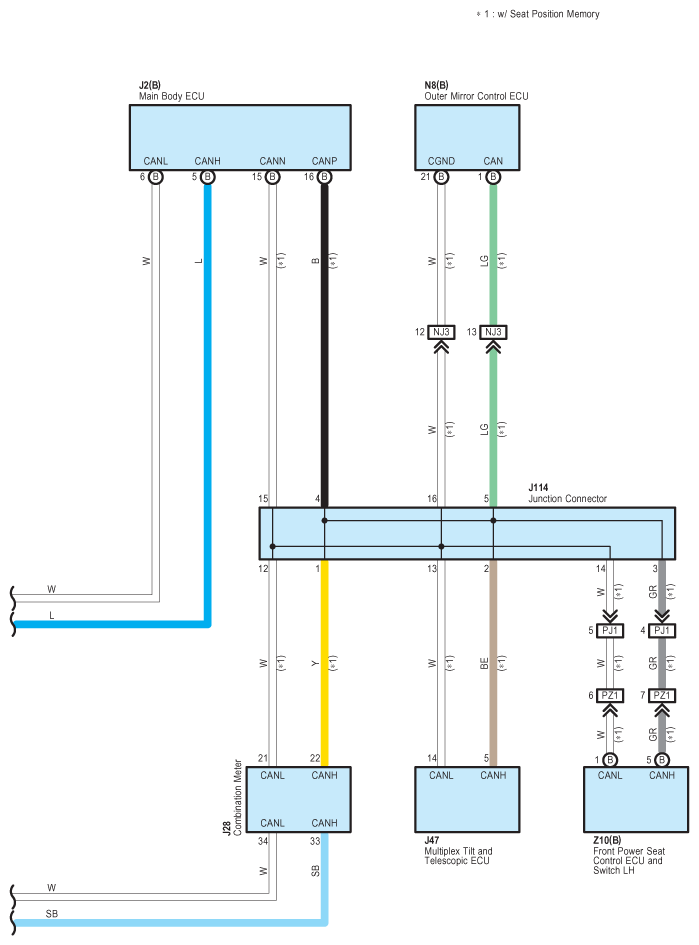

Fig 1: Multiplex Communication System Wiring Diagram (CAN; 1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

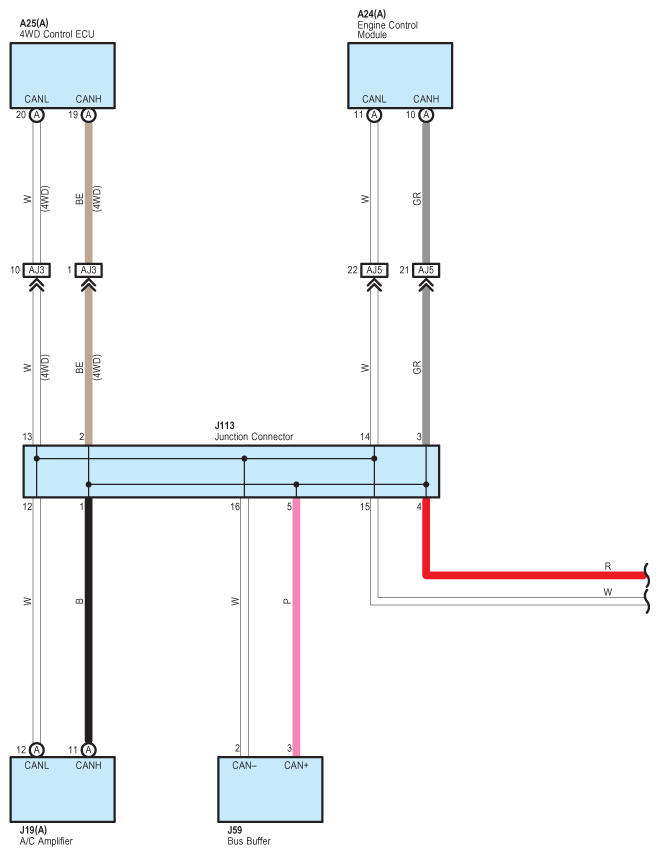

Fig 2: Multiplex Communication System Wiring Diagram (CAN; 2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

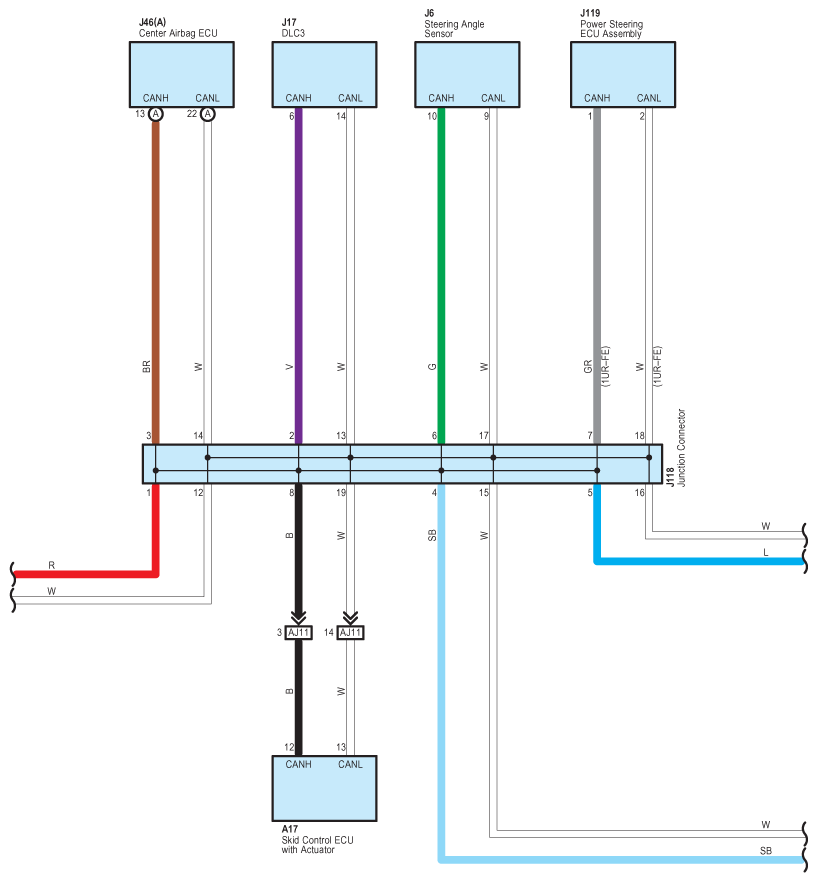

Fig 3: Multiplex Communication System Wiring Diagram (CAN; 3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
