Shift Lock (Column Shift): Notes

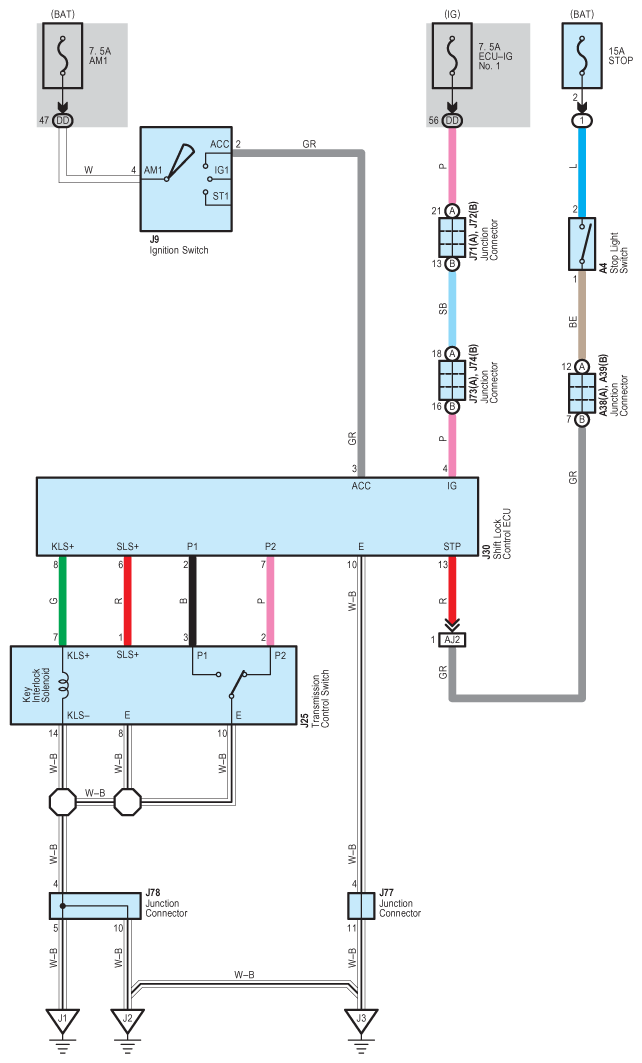

Fig 1: Shift Lock Wiring Diagram (Column Shift)

G08862074

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
