Theft Deterrent: Notes

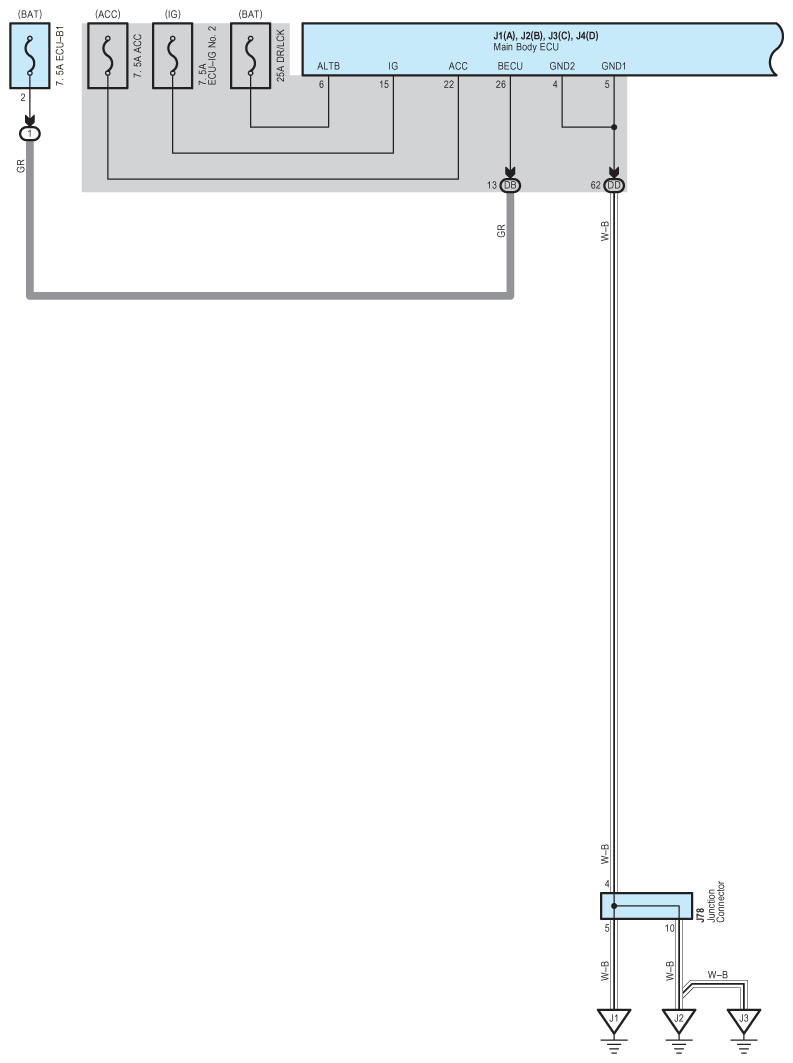

Fig 1: Theft Deterrent Wiring Diagram (1 Of 7)

G08862025

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

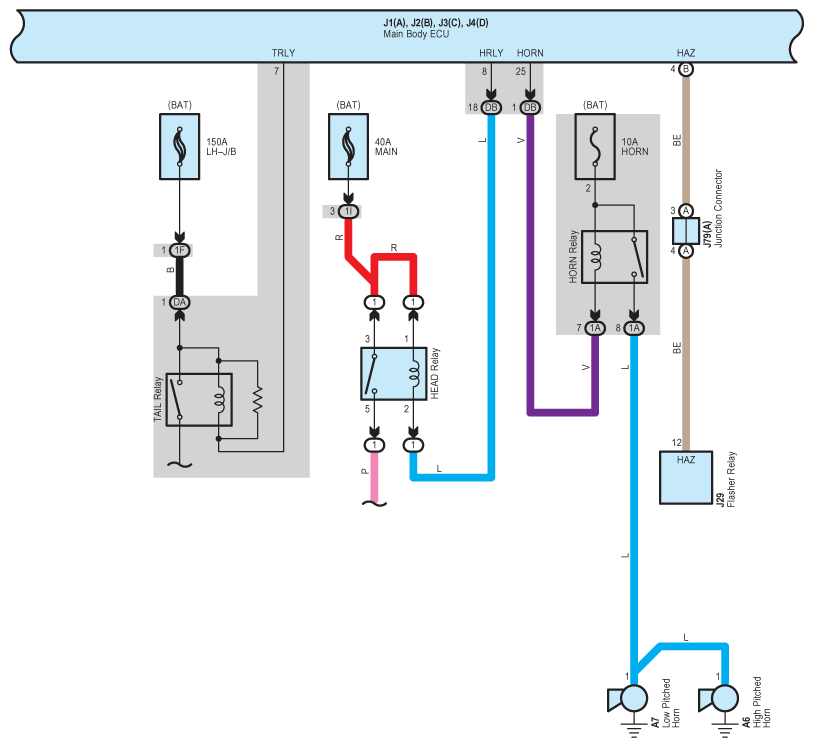

Fig 2: Theft Deterrent Wiring Diagram (2 Of 7)

G08862026

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

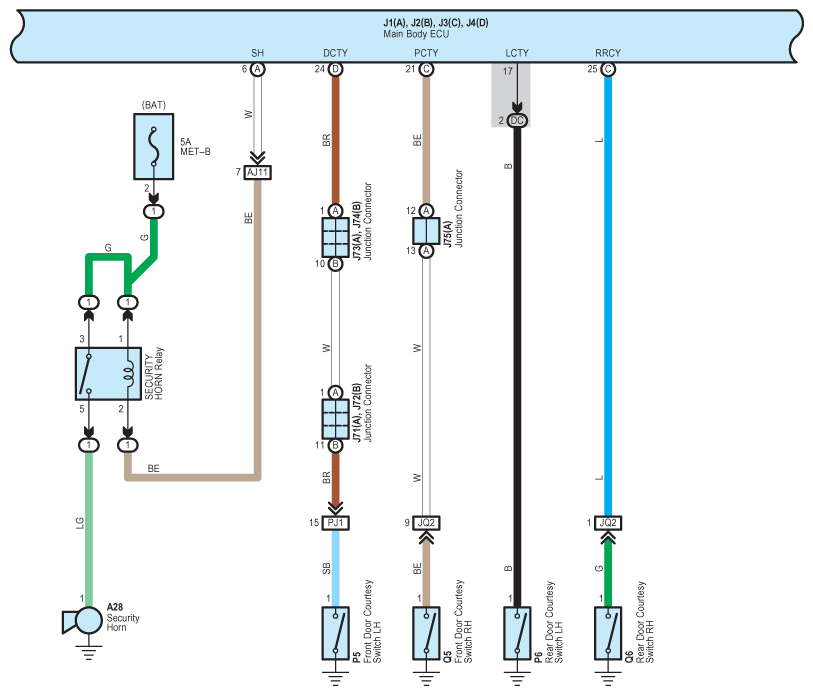

Fig 3: Theft Deterrent Wiring Diagram (3 Of 7)

G08862027

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

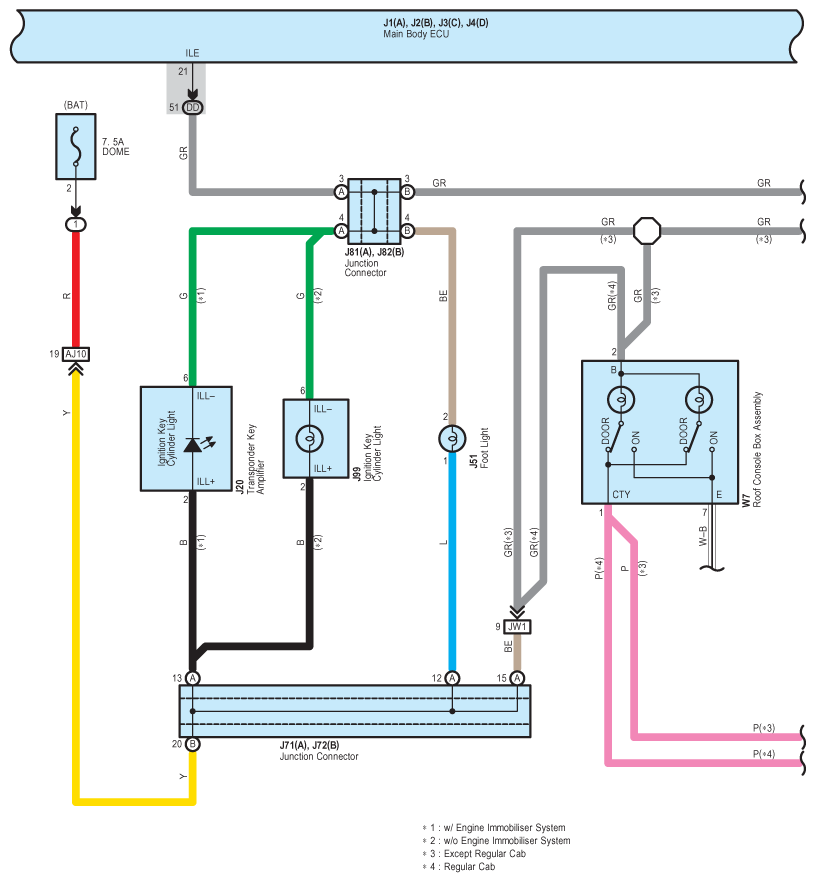

Fig 4: Theft Deterrent Wiring Diagram (4 Of 7)

G08862028

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

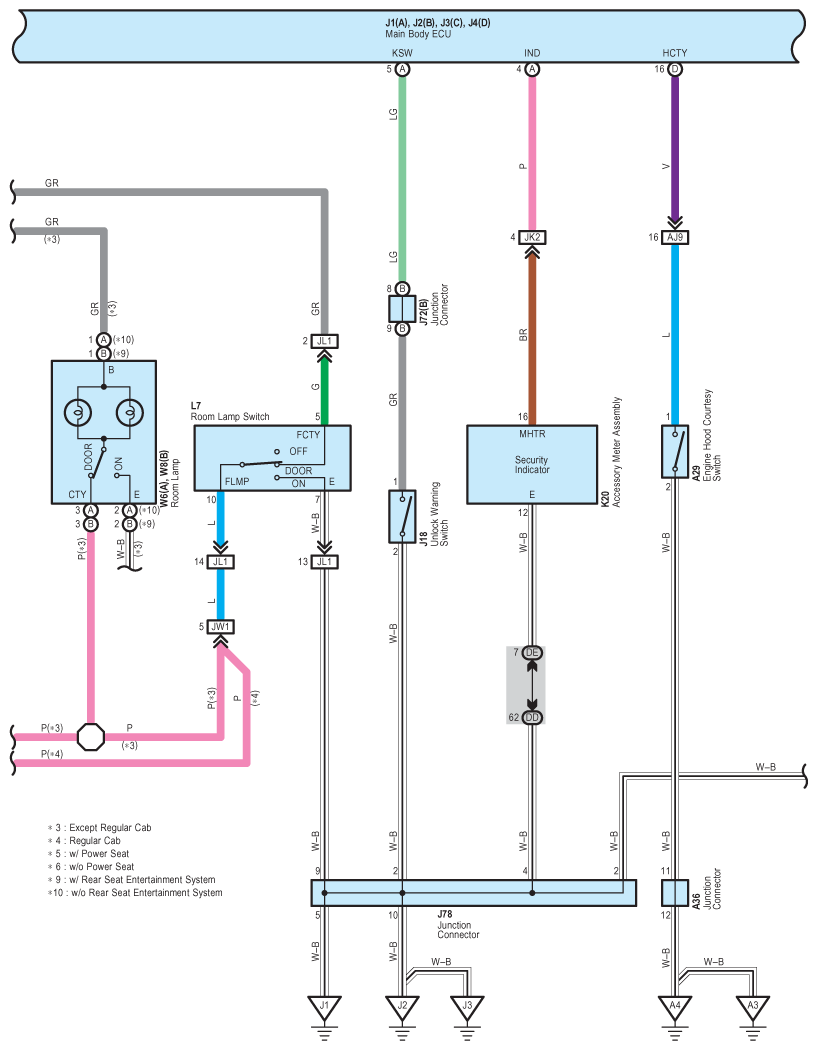

Fig 5: Theft Deterrent Wiring Diagram (5 Of 7)

G08862029

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

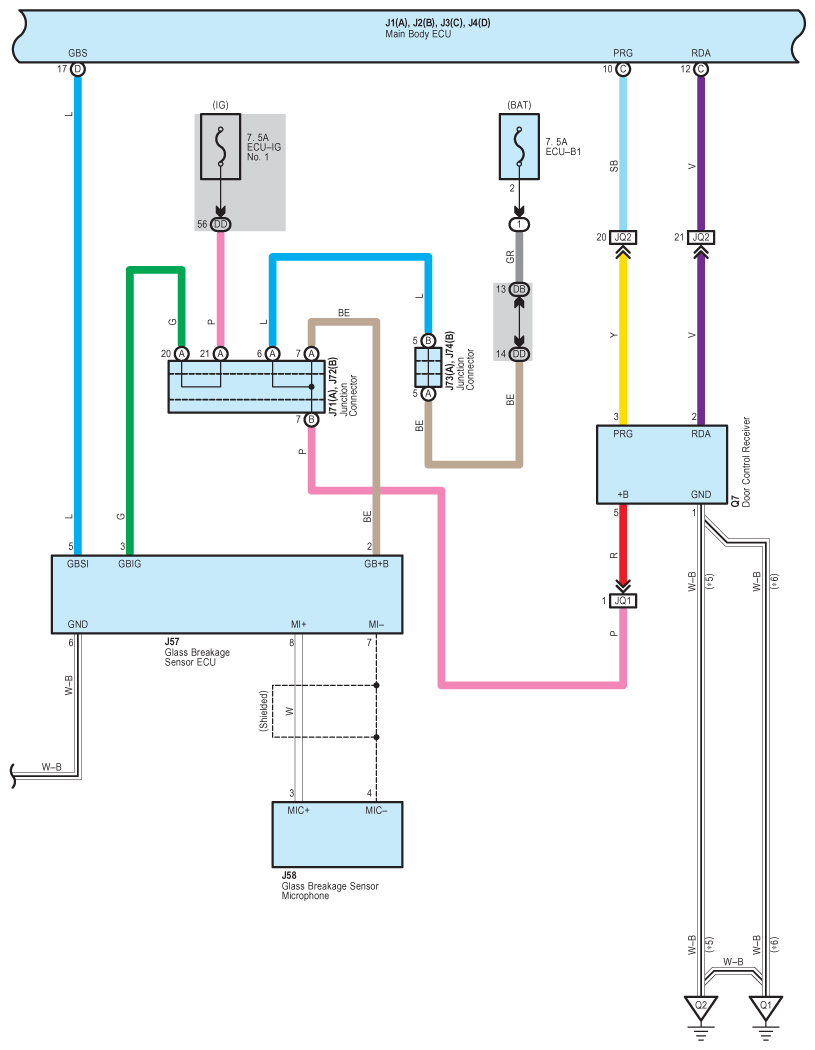

Fig 6: Theft Deterrent Wiring Diagram (6 Of 7)

G08862030

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

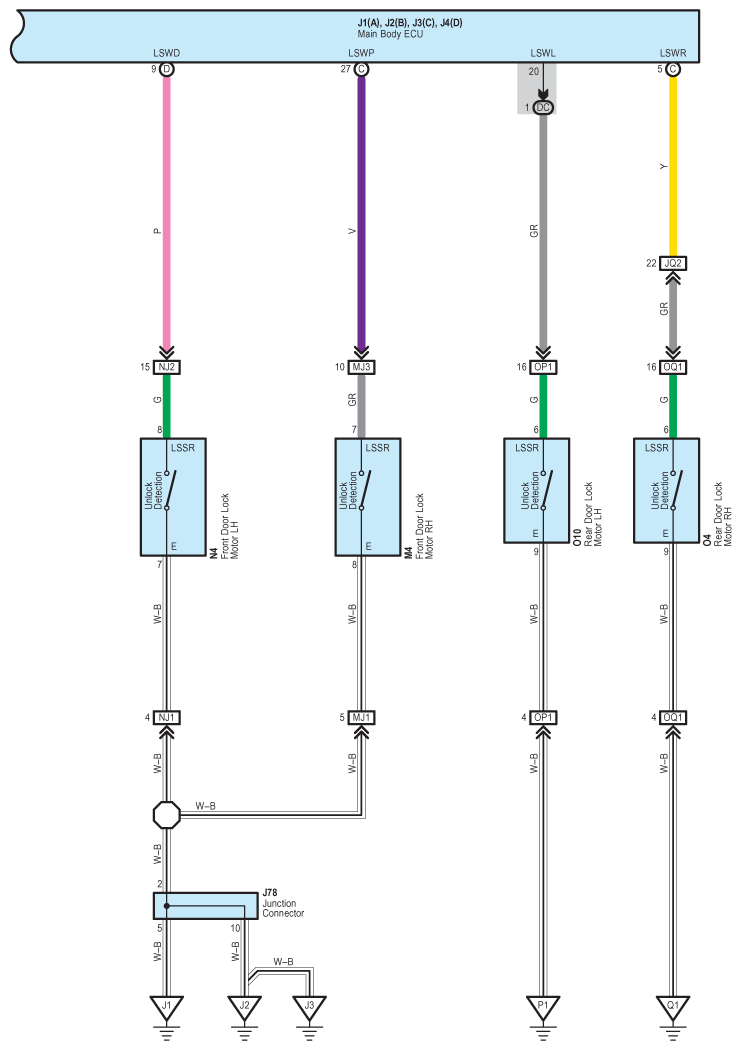

Fig 7: Theft Deterrent Wiring Diagram (7 Of 7)

G08862031

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
