4WD Control System / Transfer Case Control System (Inspection)
›
4WD Control System / Transfer Case Control System
›
System Diagram
›
System Diagram
System Diagram

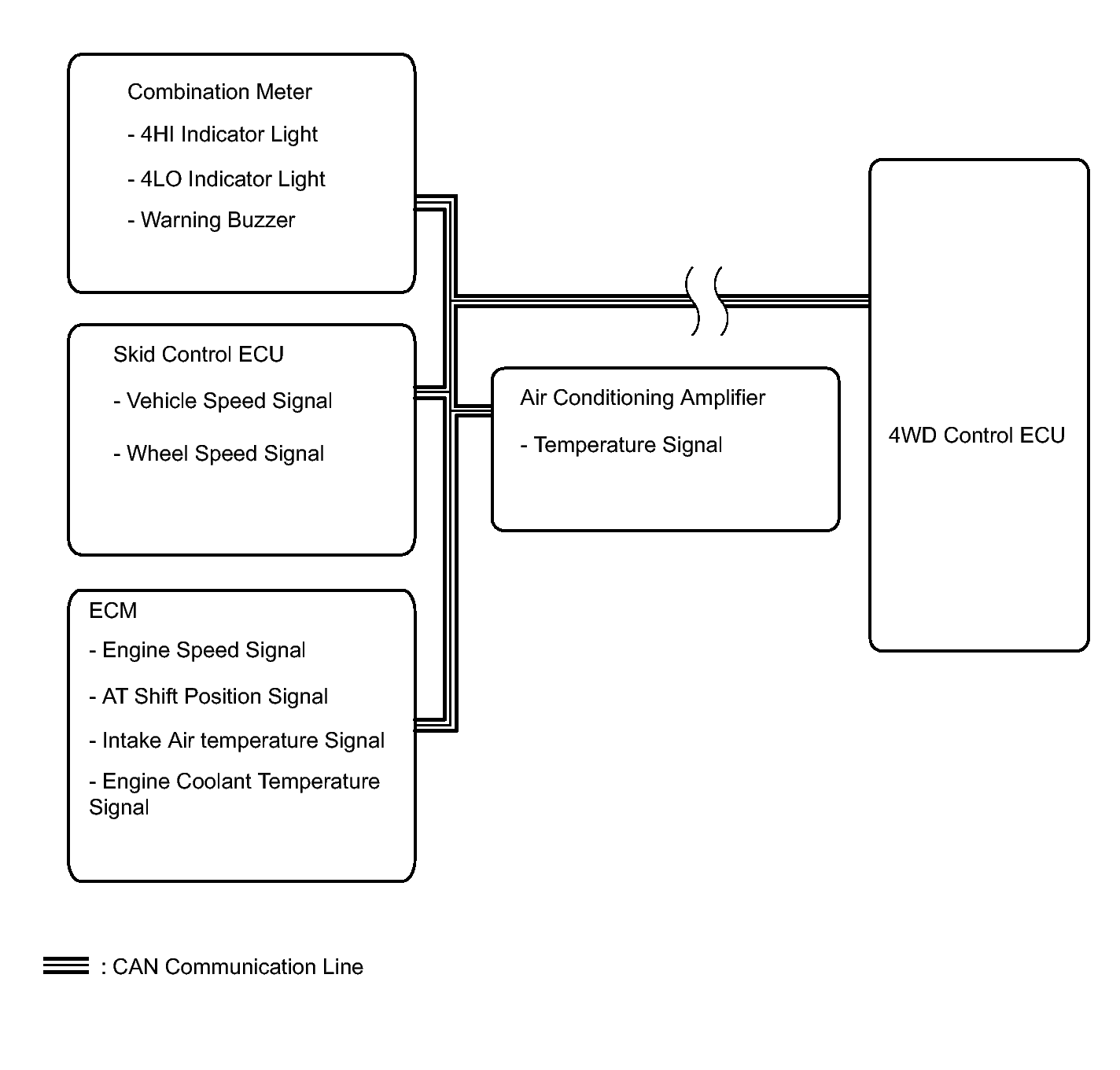

Fig 1: Touch Select 2-4 And High-Low System Diagram (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

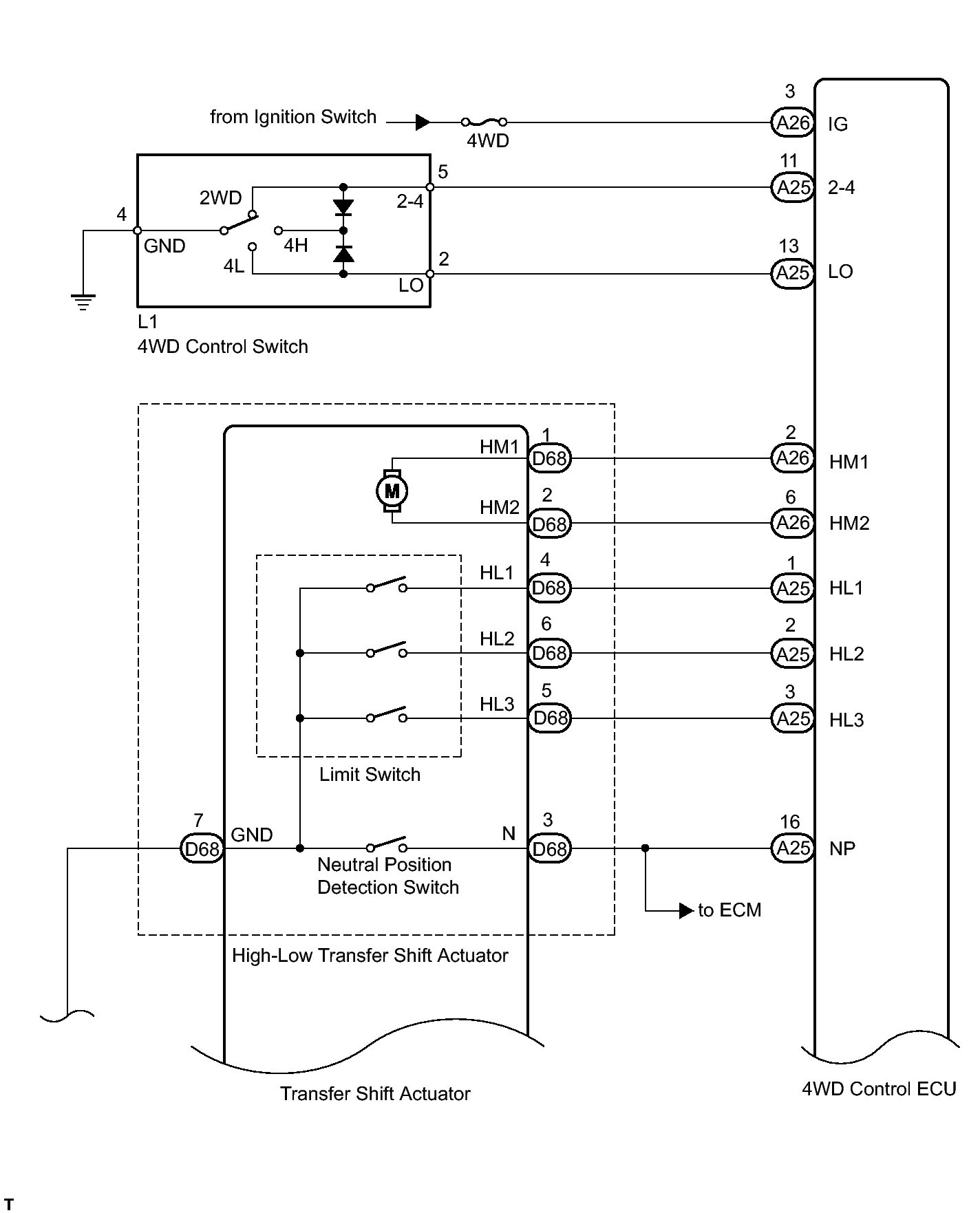

Fig 2: Touch Select 2-4 And High-Low System Diagram (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

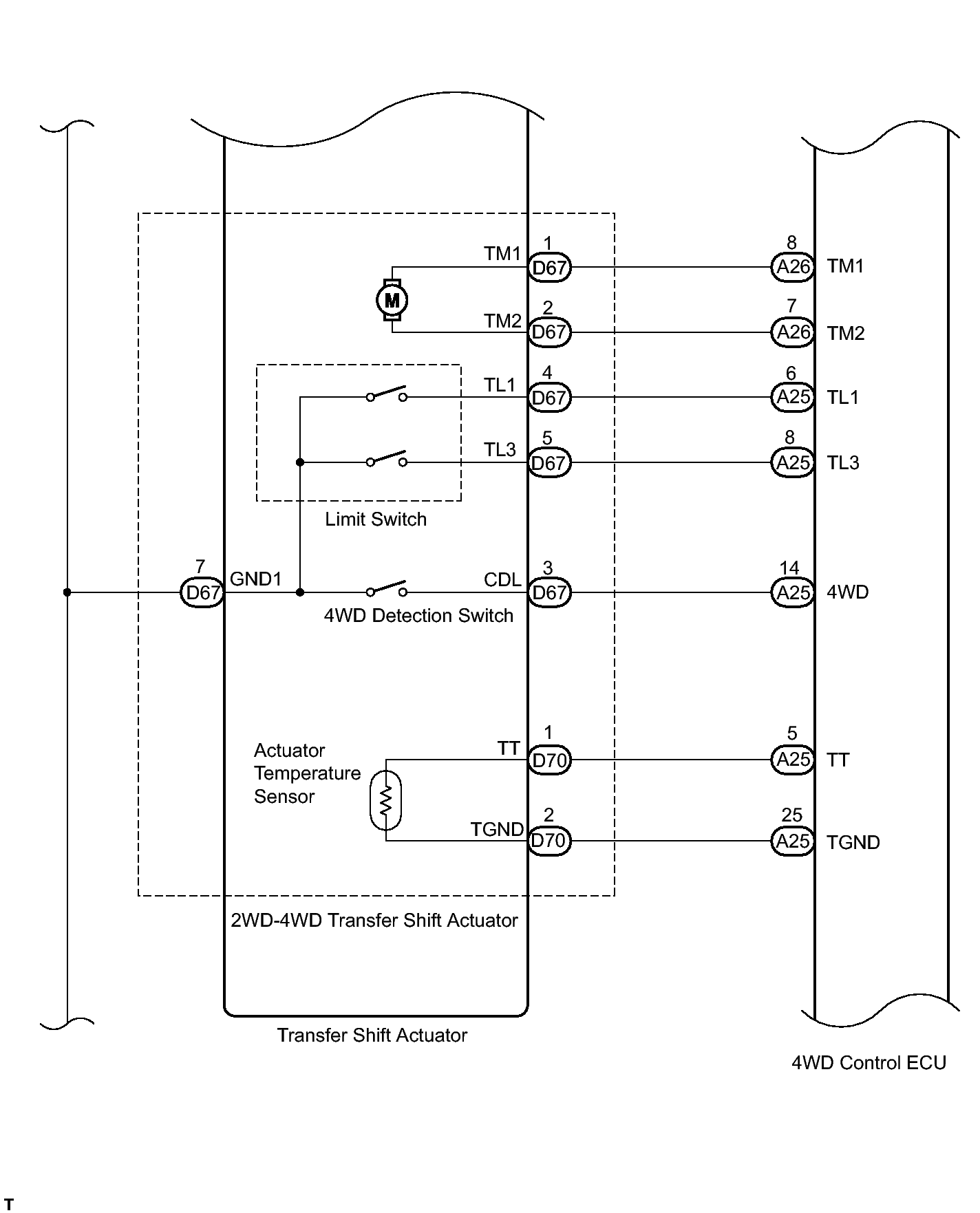

Fig 3: Touch Select 2-4 And High-Low System Diagram (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

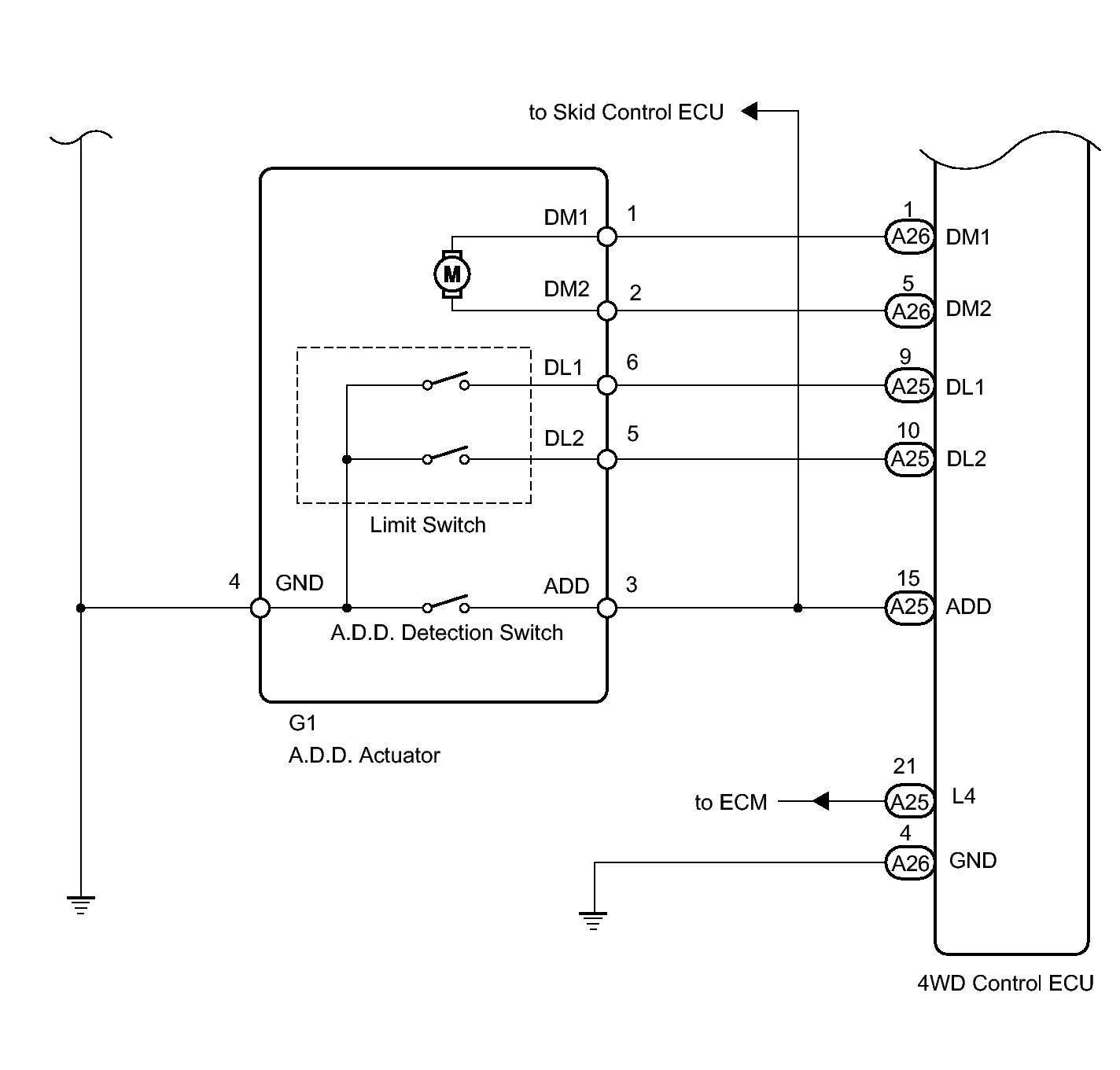

Fig 4: Touch Select 2-4 And High-Low System Diagram (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
