Back-up Light
›
Notes
Back-up Light: Notes

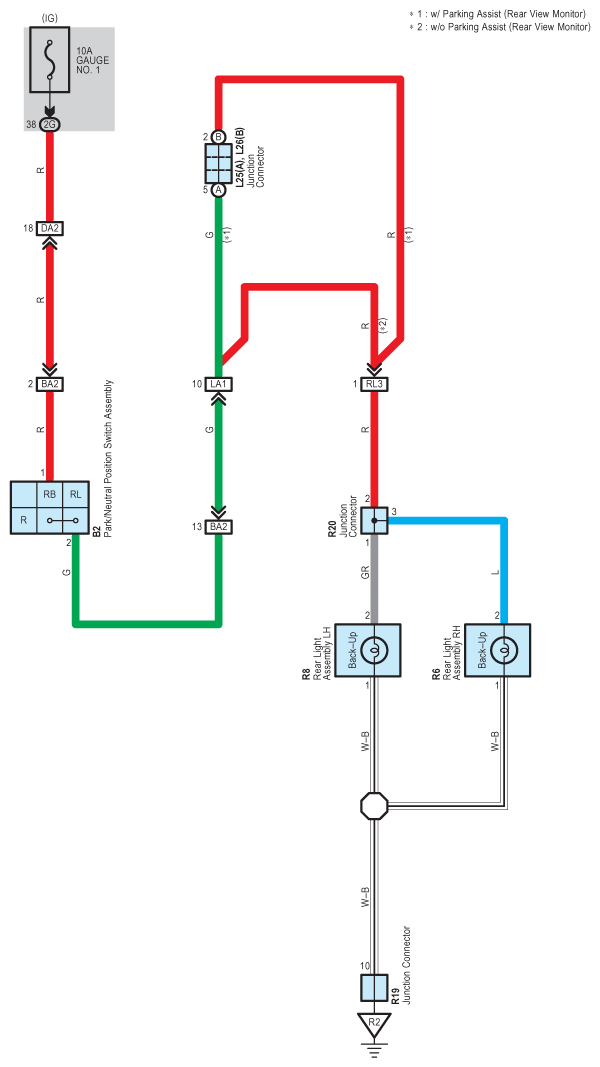

Fig 1: Back-Up Light - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
