Power Outlet (120V): Notes

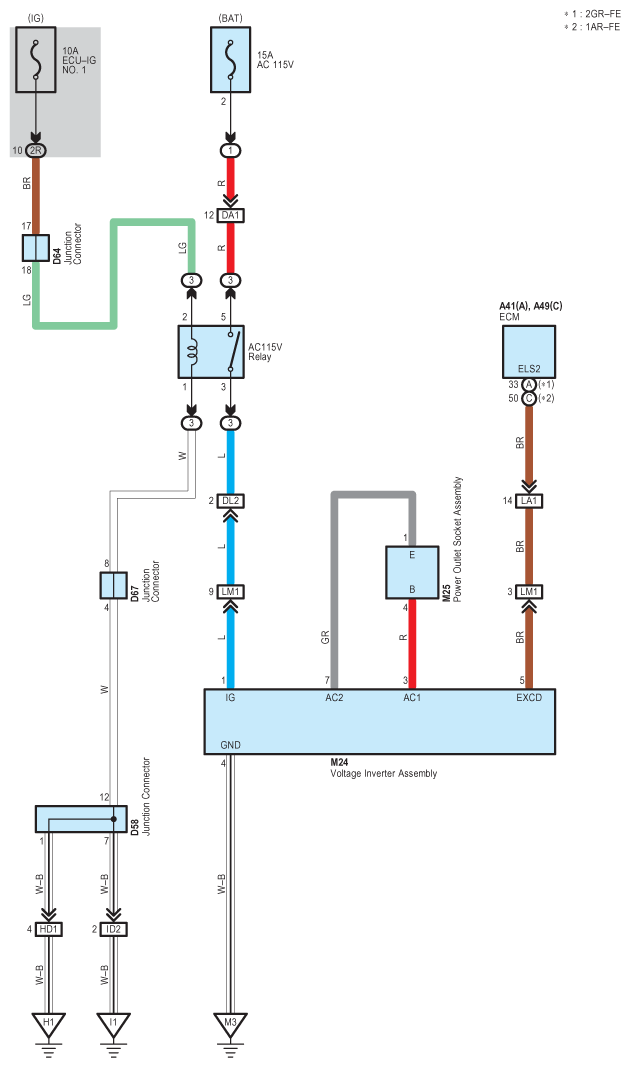

Fig 1: Power Outlet (120V) - Circuit Diagram

G08969043

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
