Occupant Classification Ecu: Components: Illustration

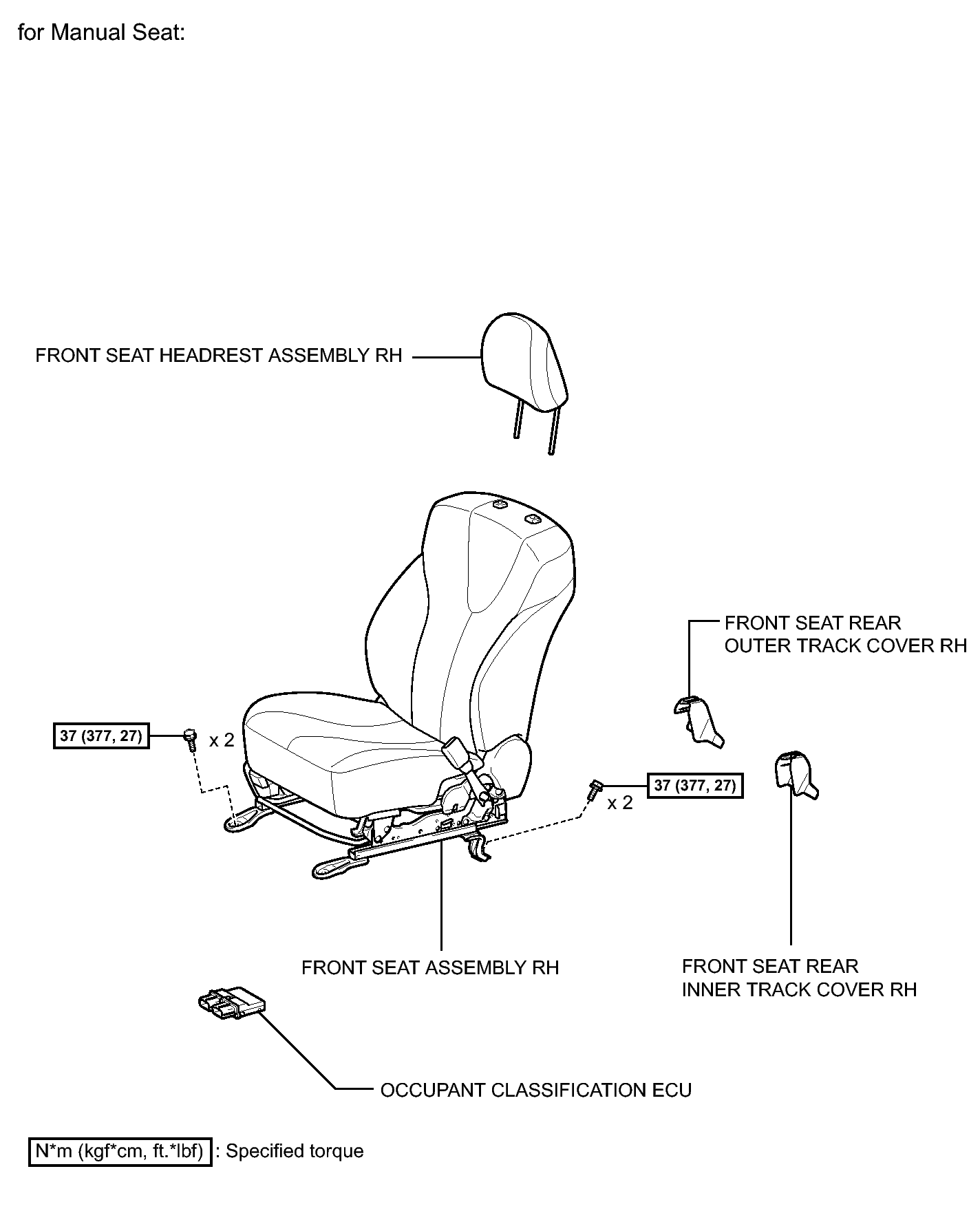

Fig 1: Identifying Occupant Classification ECU Replacement Components (For Manual Seat) With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

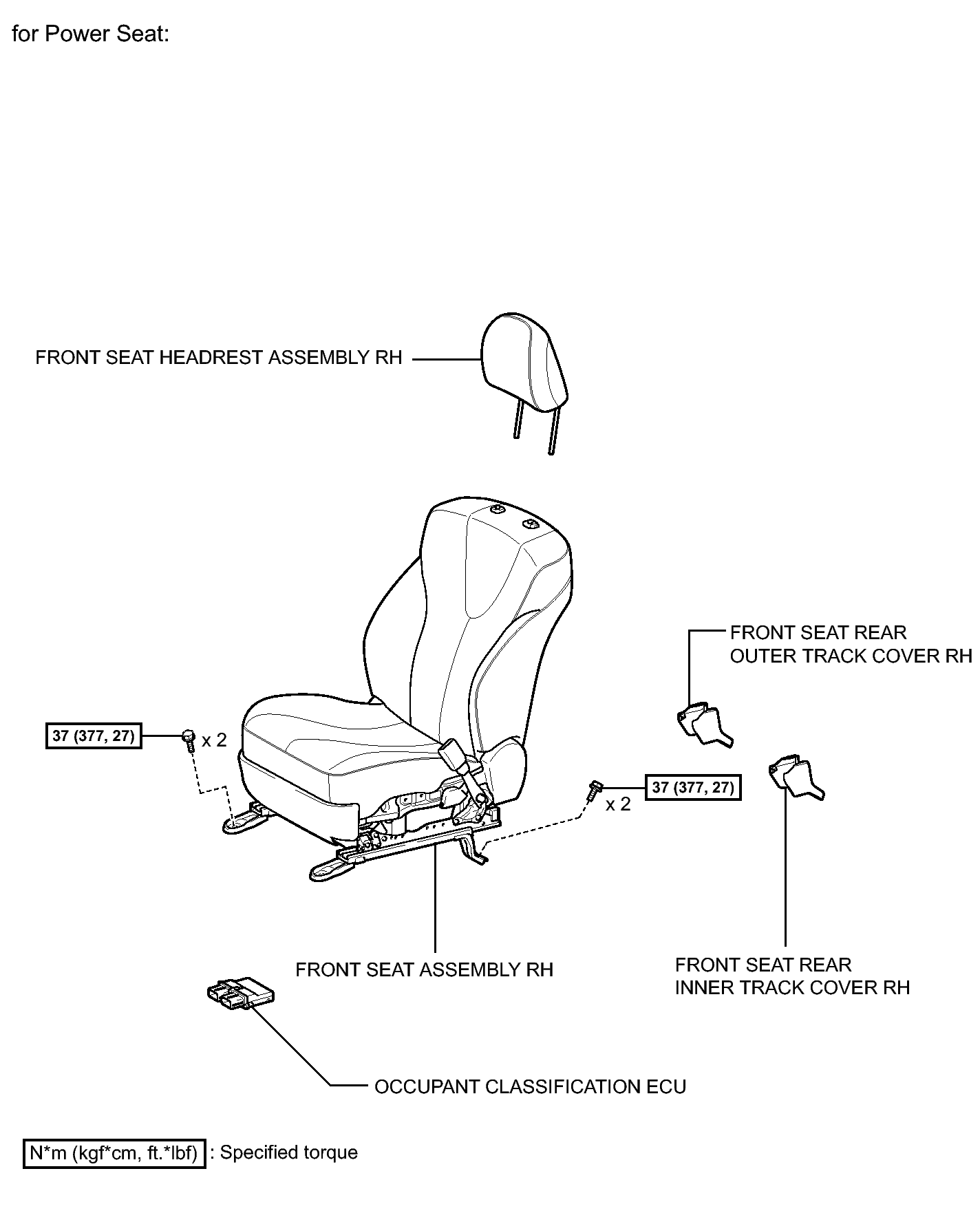

Fig 1: Identifying Occupant Classification ECU Replacement Components (For Power Seat) With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
