Ignition (1AR-FE): Notes

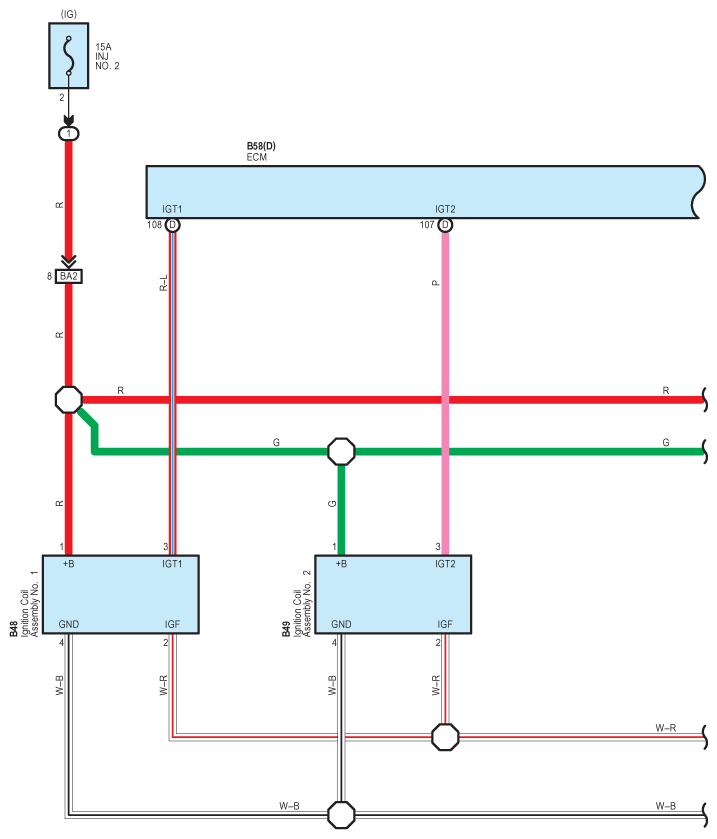

Fig 1: Ignition (1AR-FE) - Circuit Diagram (1 Of 2)
G08968938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

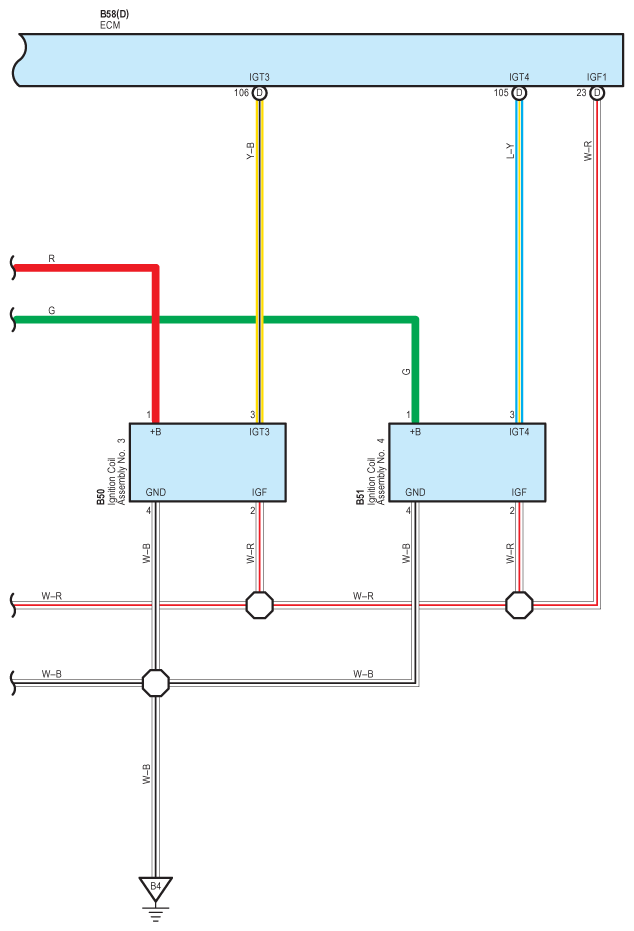

Fig 2: Ignition (1AR-FE) - Circuit Diagram (2 Of 2)
G08968939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
