Ignition (2GR-FE): Notes

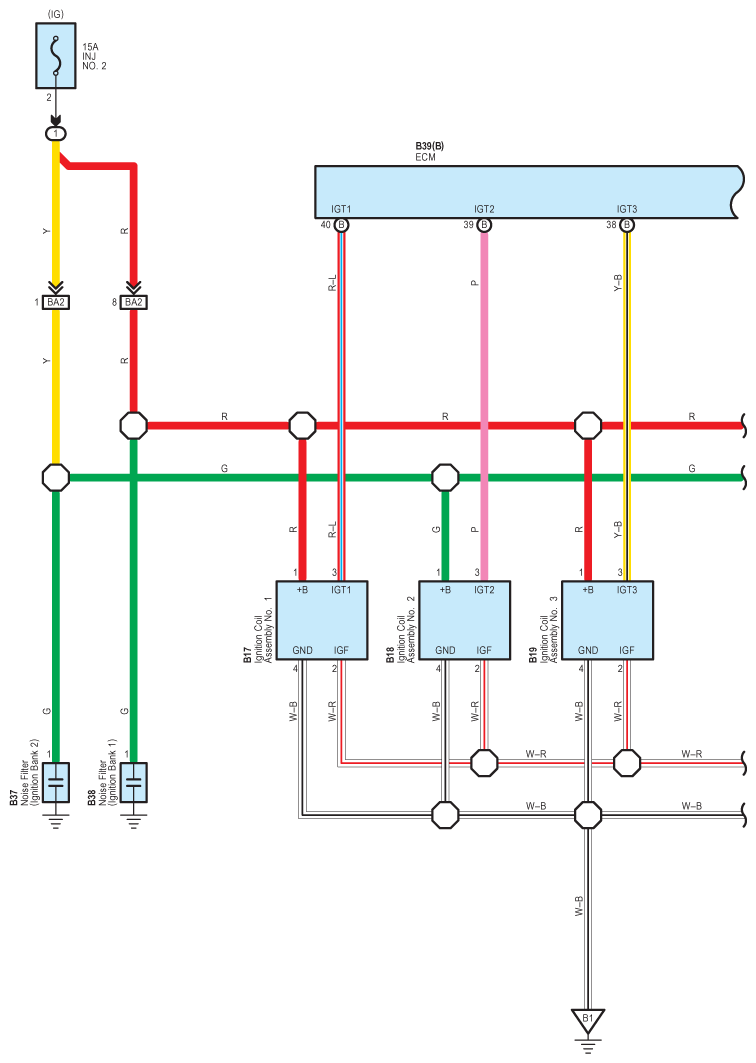

Fig 1: Ignition (2GR-FE) - Circuit Diagram (1 Of 2)
G08968936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

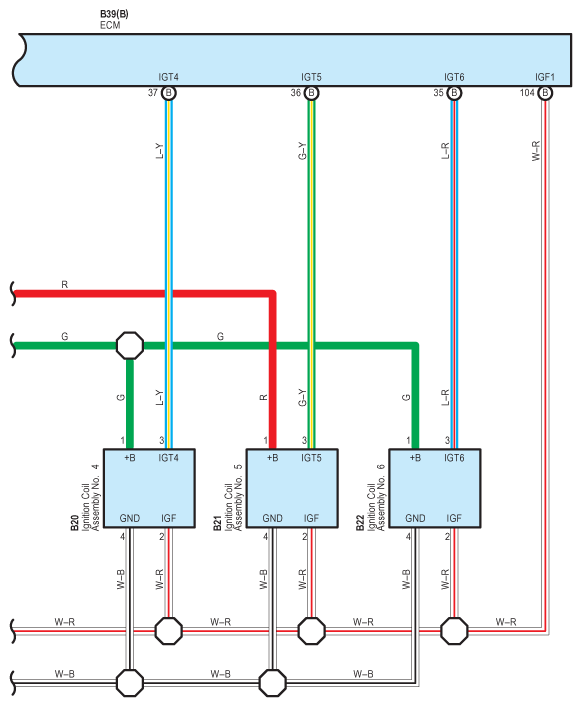

Fig 2: Ignition (2GR-FE) - Circuit Diagram (2 Of 2)
G08968937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
